Trailer Hitches GNRC912 Turnoverball Center Box Only GM 2500/3500 '16 - '17
B&W Trailer Hitches GNRC912 Turnoverball Center Box Only GM 2500/3500 '16 - '17
B&W Trailer Hitches GNRC912 Turnoverball Center Box Only GM 2500/3500 '16 - '17



Price: $235.77
MFG P/N: GNRC912
MFG: B&W Hitches
SHIPS: Multiple Warehouses
SPECIAL: 2 to 5 business days


Quantity in Stock :


Availability: Out of Stock
Product Code: GNRC912
No Longer Available

Description Technical Instructions

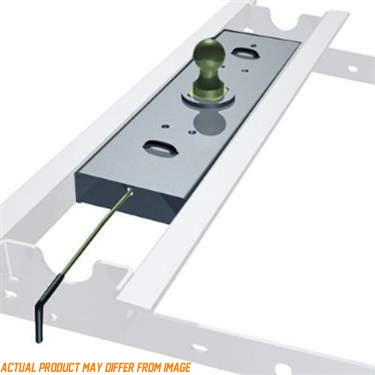

B&W Trailer Hitches GNRC912 Turnoverball Center Box Only GM 2500/3500 '16 - '17 is the center box that goes with GNRM1016 for a high quality hitch when you need it, and a level bed when you don't. With no welding or bed removal required, this hitch installs easily and completely underneath the bed of the truck. All bolts fit to only existing holes in the frame. The hitch requires only a 4 inch hole in the bed for the ball to come through, and 4 other small holes for hooks on both sides of the hitch. With a 30,000 lb carrying capacity, you will be able to tow just about any trailer including travel trailers.
  • Powder coated for long lasting finish
  • Solid one-piece receiver socket
  • Gross tongue weight: 7,500 lbs
  • Carrying capacity: 30,000 lbs
  • Dimensions: 28" x 5.1" x 8.7"
  • Ball dimension: 2-5/16"
  • See fitments below.
  • Works with custom rail kits:
    • GNRM1012
    • GNRM1016
  • Includes: center section, 2-5/16" ball, and a latch pin handle
  • Limited lifetime manufacturer warranty

B&W Trailer Hitches Turnoverball Center Box Only GM 2500/3500 '16 - '17

Additional Product Information
Fitments include:
  • 2016-2017 Chevrolet & GMC 2500 & 3500 Heavy Duty Trucks
  • 2011-2015 Chevrolet & GMC 3/4 and 1 Ton HD Long & Short Bed Trucks
