Blue Streak Automatic Chemical Metering System

Alternative Views:

Retail Price: $54.95
Your Price: $45.45
You save $9.50!

Manufacturer: CLS

Product Code: RVUD2001D

Qty:

Description

Instructions & Manuals

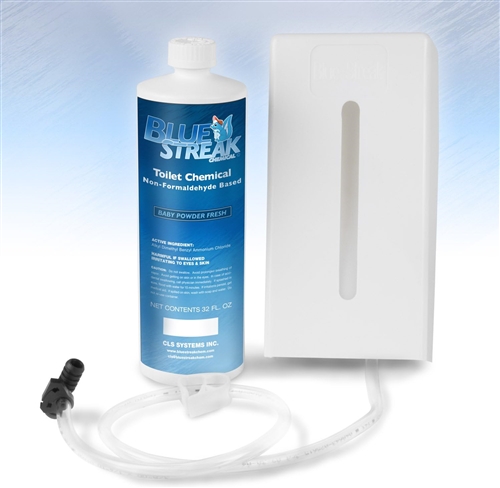

The Blue Streak Chemical Metering System carefully measures just the right amount of toilet chemical each time you flush using precisely what need without waste. The Blue Streak system will deliver over 400 flushes to one quart of Blue Streak Chemical. Eliminates the guess work in adding the right amount of rv toilet chemical for different lengths of stay. Other products require a full dose which may not be needed and are flushed down the dump station. Blue Streak Chemical is carefully measured each time so you only use precisely what is needed - no waste or spillage. The kit includes installation instructions, chemical holder with attractive cover, mounting screws, hose clamps, clear vinyl tubing with auto-metering t-valve and one 32 oz bottle of Blue Streak Chemical. The system comes with a one year limited warranty.

INSTALLATION INSTRUCTIONS

Reviewed By Mike P. Installed on a Winnebago Adventurer

A few weeks ago I was out in my rig taking inventory of all the holding tank products that I have since we were getting ready for a trip and I must have 4 different products in my closet which all take up space. I was thinking at that time it would be nice if I could just settle on one product and dump the rest. I was introduced to Blue Streak and asked if I would do an installation review about this product which I initially found to be interesting so I had Carl send me a kit so I could try it out. The kit came in a acrylic see-through pack and features a plastic holding tank, a feed line and integral shut off clamp, a directional venturi valve, mounting screws, mini hose clamps, special install tubes (2) for other manufacturers, an instruction manual and a 1 quart container of the Blue Streak chemical. I removed the materials from the kit and took a look at the install instructions. Apparently my installation is probably the easiest to do because I don’t have to do anything other than cut the line from the feed side of the foot valve that goes to the toilet. The instructions state to mount the tank below the top of the stool or the chemical could flow into the toilet. Remarkably this setup could actually be installed in a storage compartment below the floor if it were convenient. All you would have is a clear piece of tubing coming up and being attached to the stool's plumbing. In my case I conventionally mounted the Blue Streak tank to the right on the back wall using the 3 screws provided. I believe that the screws are stainless. I mounted the tank top slightly below the top of the rim of the stool so I wouldn’t have to bend over too much to add the chemical. The supply line comes off the bottom of the tank and is directed along the floor to where the attachment point is located. I cut the feed line from the foot valve to the toilet about half way. Looking at the valve T you will see an arrow that points in the direction of the water flow. In my case the arrow points up. I placed 2 mini hose clamps one on each side of the cut over the supply line. I then pushed in one side and then the other so the line was up tight against the T’s body making sure that the direction of flow arrow was properly oriented. I secured the lines by sliding over the mini clamp and locating the clamp about ¼ of an inch from the T in the middle of the pipe that is slid into the supply line. I tightened same and checked it over again to make sure that the clamps were centered and secured. You don’t need to use a lot of torque on the clamps just so long as they are tight. I turned on my water pump switch and pressurized the system. In the event of a leak I could quickly turn off the pressure. No leaks no drips no errors! Nice. I operated the foot valve for about 10 to 15 seconds and I could see the Blue Streak make its way down the supply line, up to the T and come out all around inside the stool. A white finish cover is provided which is placed over the tank. 4 small tabs hold it in place.

Our son took the camper out for a weekend camp and he said that the toilet worked fine without any problems. He told me that he liked the fact that the water had a blue tint to it which reminds him of the home product he uses. The chemical leaves a faint fresh odor. One of the benefits of using the Blue Streak chemical is that it only uses the chemical that it needs to control holding tank odors per flush. In the chemical is also a lubricant which keeps the water seals in the toilet lubricated. The chemical is formaldehyde free so it can be used anywhere. The dye that is used in the chemical is water soluble and is non-staining. In a great many installations the quart of chemical will last approximately 1 season or on the average for 400 flushes. The Blue Streak chemical is available by the quart or in a package of 3.

Features

OVER 400 flushes to one quart of chemical

Blue Streak Chemical CLEANS, LUBRICATES and DEODORIZES
ECONOMICAL and CONVENIENT
FULLY AUTOMATIC
Each time you flush, Blue Streak Chemical is automatically dispensed into your system.
ENVIRONMENTALLY FRIENDLY
Non-Formaldehyde based, does not waste chemical when dumping frequently.

How It Works

The Blue Streak Dispenser is a chemical injector that adds a metered amount of chemical to the flush line of RV stools.

The t-valve is a venturi that creates a vacuum to draw the chemical from the reservoir and mixes it with the water passing through the t-valve. The t-valve also contains a check valve to stabilize the systems between flushes. On the side of the t-valve is a small arrow, which indicates the direction the water needs to flow through it to create a vacuum. If installed backwards it will not draw chemical from the reservoir.

The metering tip controls how much chemical to water ratio (or mix) you get in the stool. The approximate mix is one ounce chemical to five gallons of water. It should give you a color mix that is between a royal blue and a sky blue in the stool. The tip is preset and there is no adjustment.

The reservoir, which is mounted on the wall, should be no higher than the top of the stool. It can be mounted lower than the stool or in a basement compartment. If the reservoir is mounted higher than the stool, the chemical will flow freely into the bowl and give you a very dark blue color.

If you remove the line from the reservoir always be sure to use silicone sealer on the fitting when reattaching the line. The mold line on the stem sometimes will allow chemical to leak out if you don't.

The tube pinch on the line between the tank and the t-valve is a service clamp, only for use when repairing the stool, or to stop the flow of the chemical.

How do I winterize the Blue Streak Dispenser

Run the chemical level as low as possible in the reservoir and winterize your unit as you would normally. To remove excess chemical from the reservoir; unscrew the tank from the wall leaving tubing attached to tank and pour chemical into another container.
