Full-Size Design | Stainless Steel | 4-Burner Cooktop | 3.7 Cu Ft Oven | Residential Quality

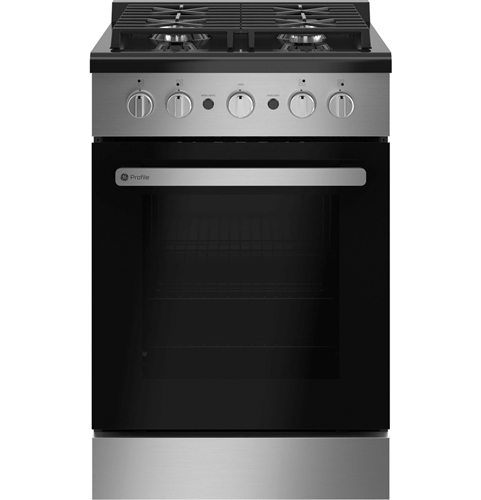

Transform your Class A or Class C motorhome kitchen with the GE Profile PLS624RTSS, a premium 24" free-standing gas range that delivers true residential cooking performance for life on the road. Engineered for larger recreational vehicles with spacious kitchens, this full-size range combines professional-grade features with rugged RV durability, bringing the convenience and capability of home cooking to your travels.

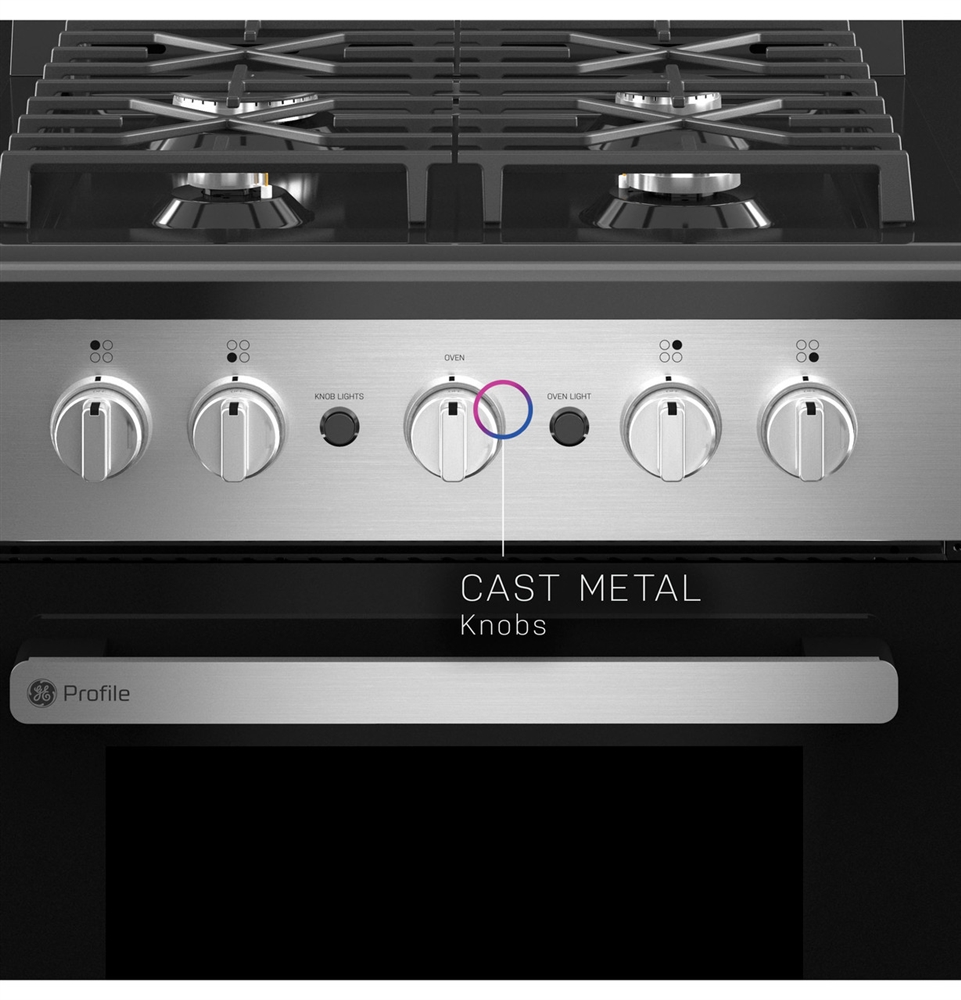

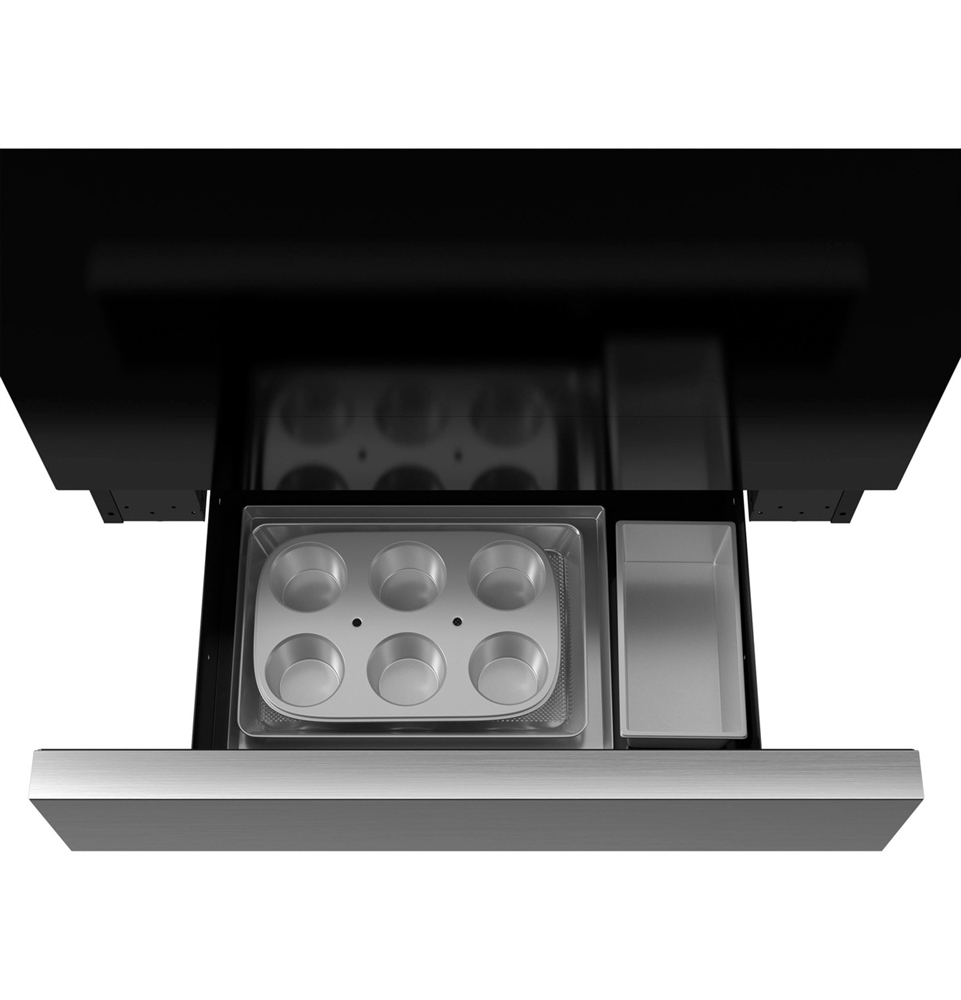

Featuring a powerful 4-burner cooktop with BTU ratings from 3,500 to 9,100, this range provides exceptional cooking versatility for every meal. The generous 3.7 cubic foot oven is one of the largest in the RV market, offering ample capacity for roasting, baking, and entertaining - easily accommodating full-size turkey roasters, multiple casserole dishes, and large baking sheets. With electronic spark ignition, white backlit knobs, full-extension storage drawer, and a sleek stainless steel finish with matte black cooktop, the PLS624RTSS brings both performance and style to your full-size RV kitchen.
Professional dimensions for Class A/C motorhomes with generous kitchen space
One of the largest RV ovens available - handles full-size roasters and multiple dishes
Up to 9,100 BTU burner with 4-burner versatility for complex meal preparation
Premium components and construction rival home kitchen appliances
IMPORTANT: This range requires a hardwired 12V DC connection from your RV's electrical system to operate the electronic ignition and optional lighting features: 12V DC Powers: • Electronic spark ignition system (cooktop burners) • Piezo ignition for oven burner • White backlit range knobs (optional - can be turned on/off) • Halogen oven light (optional - controlled by switch) The range must be hardwired directly to your RV's 12-volt system - it does NOT plug in. Most RVs with existing ranges already have 12V wiring in place that can be connected to this unit. If you're installing in a new location or upgrading from a smaller range, you'll need to verify 12V wiring is accessible or run new wiring from your RV's electrical panel. Note: The knob backlighting and oven light turn on and off together using the oven light control switch. This is normal operation and cannot be controlled independently.
Propane System Requirements: This range operates on liquid propane (LP gas) and requires a low-pressure propane system with 11" W.C. (water column) pressure. This is the standard configuration for all RVs and is achieved with a two-stage or automatic-changeover LP regulator, which is required equipment on recreational vehicles. What This Means: • All modern RVs come equipped with the required low-pressure LP system • If replacing an existing RV range, your propane system is already configured correctly • No additional propane equipment or modifications needed • Simply connect to your existing RV propane supply line Important: This range is NOT compatible with high-pressure propane systems or natural gas. It is designed exclusively for RV low-pressure LP systems. Never attempt to connect this range to residential natural gas or high-pressure propane without proper conversion equipment.
Professional Installation Strongly Recommended Pre-Installation Checks: • Verify adequate floor space: minimum 24" W x 24" D clearance • Confirm 12V DC electrical access at installation location • Ensure LP propane supply line is accessible • Check for adequate ventilation per NFPA 1192 standards • Verify floor can support 119 lbs plus cookware weight Required Connections: • 12V DC hardwired connection (for ignition and lighting) • LP propane supply line (11" W.C. low pressure) • Proper ventilation clearances above and around unit • Level floor surface for proper operation Installation Process Overview: 1. Turn off LP gas supply and 12V DC power 2. Remove existing range (if replacing) 3. Position new range in desired location 4. Level range using adjustable rear legs if needed 5. Connect LP gas supply line and test for leaks 6. Connect 12V DC wiring to range terminals 7. Secure range to floor if required by manufacturer 8. Test all burners, oven, and lighting functions 9. Verify proper ventilation and clearances Important Notes: • Installation must comply with NFPA 1192 (Recreational Vehicle Code) • LP gas connections must be leak-tested with soap solution • All wiring must be properly secured and protected • Overhead cabinet depth exceeding 13" may require additional ventilation • Always follow manufacturer's installation manual exactly • Free-standing design requires no cutout modification

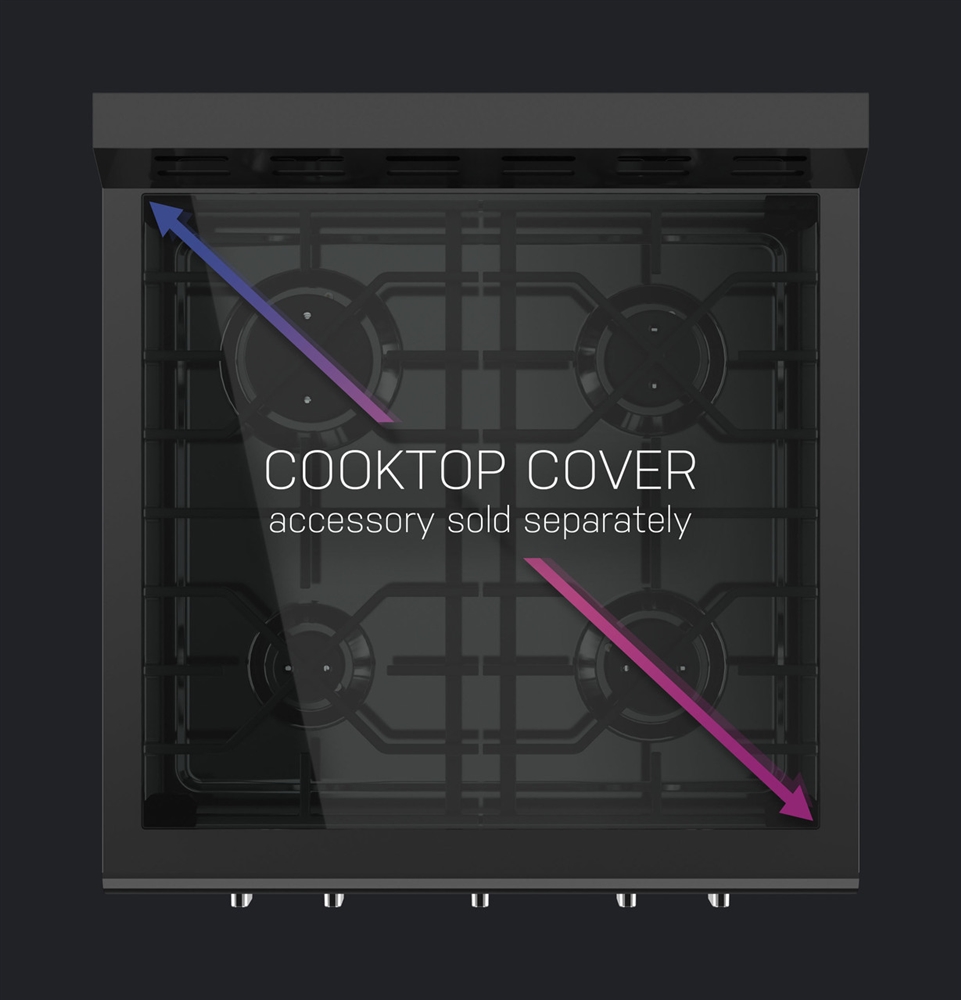

In The Box: • PLS624RTSS 24" Gas Range • Edge-to-Edge Cast Iron Grate (2-Piece) • Nickel Oven Rack (Adjustable 7-Position) • 1 Drip Pan • Owner's Manual • Installation Instructions • Warranty Documentation NOT Included (Purchase Separately if Needed): • Glass cooktop cover JXCVR24T • LP gas supply line (if not pre-existing) • 12V electrical wiring (if not pre-existing) • Propane leak detector solution

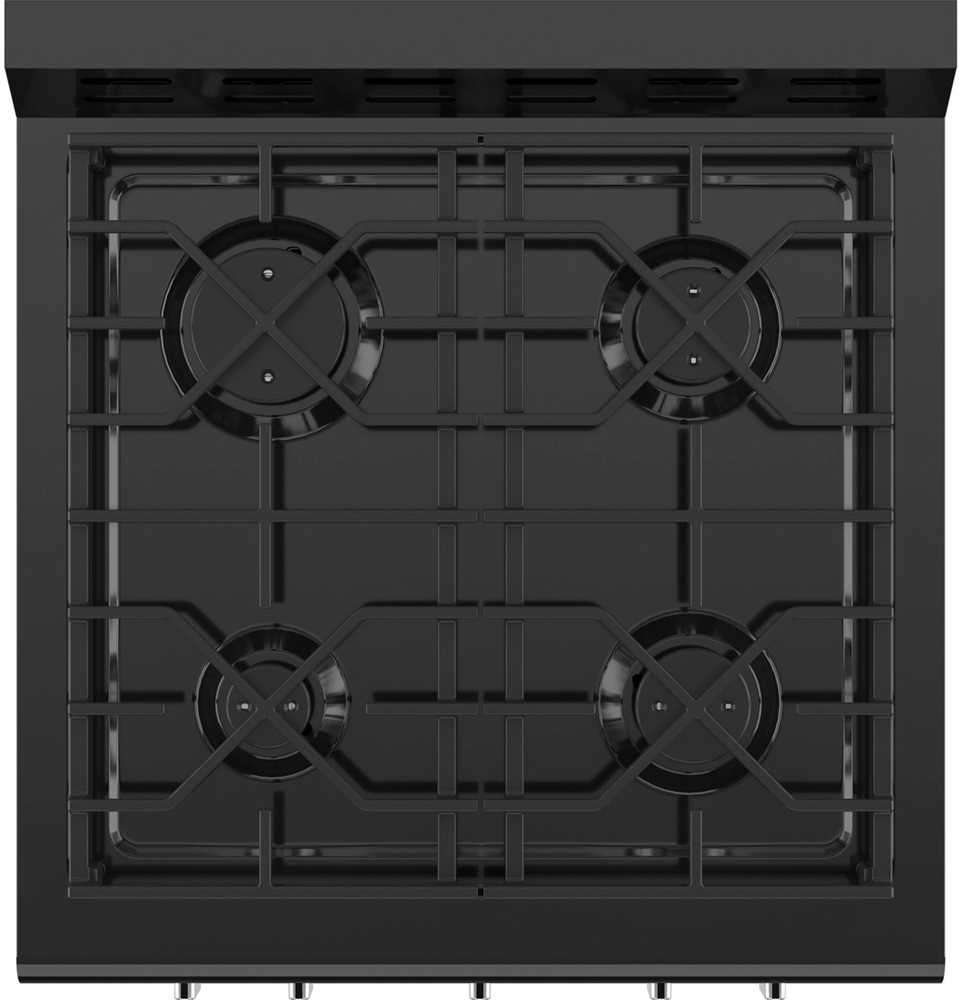

The 4-burner configuration provides exceptional versatility for complex meal preparation. The 9,100 BTU power burner delivers professional-level heat for demanding cooking tasks, while the 3,500 BTU simmer burner offers gentle heat control. The two 6,000 BTU burners handle everyday cooking needs. All burners feature 260-degree turn valves for precise flame control.

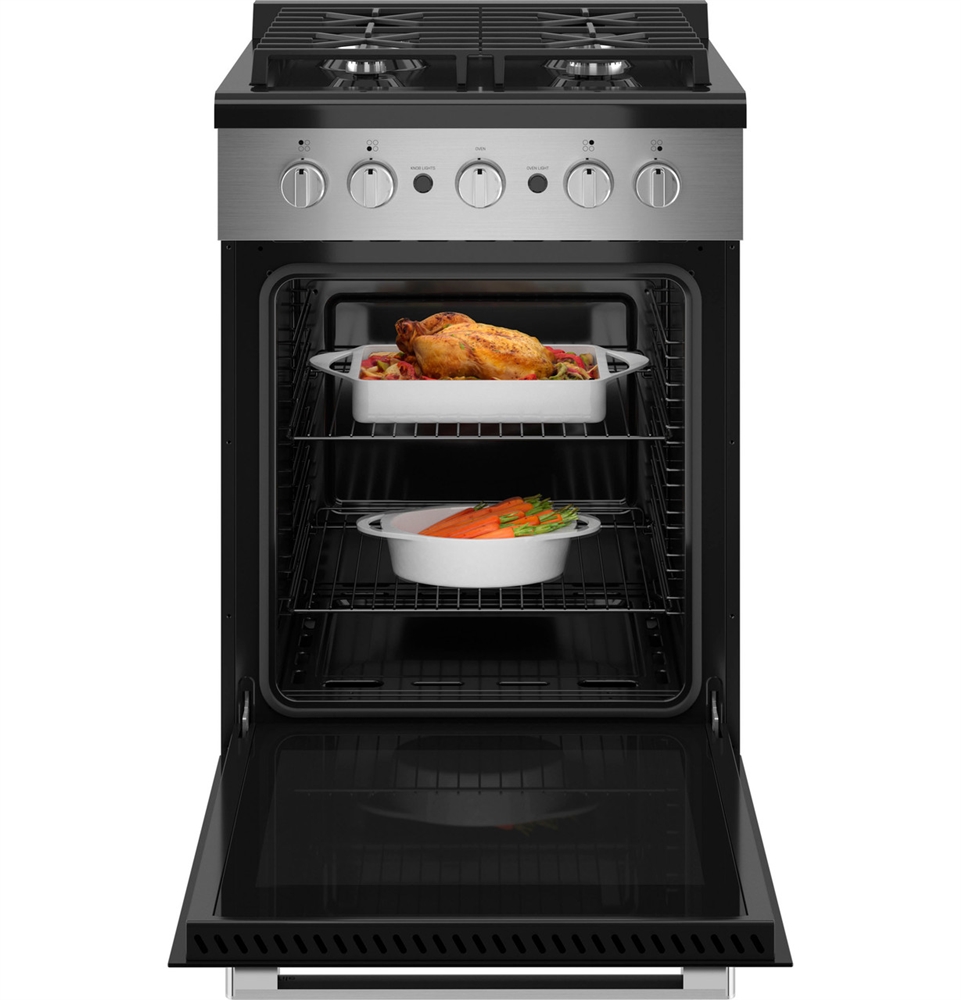

The 3.7 cubic foot oven capacity is a game-changer for RV cooking. Unlike compact ranges that limit your meal options, this full-size oven handles holiday meals, batch cooking, and entertaining with ease. The 7 rack positions offer unmatched flexibility for various cooking methods and dish sizes.
Product Manuals:Download the GE Profile PLS624RTSS RV Gas Range Oven Owner's Manual Warranty Information: 2-Year Limited Manufacturer's Warranty Covers defects in materials and workmanship Service must be performed by authorized technicians Product Registration: Register at: www.geappliances.com
A: The PLS624RTSS is a free-standing range designed for larger RVs with spacious kitchens, particularly Class A and Class C motorhomes. At 24" wide x 24" deep x 36" tall, this is a full-size range that requires adequate floor space - you'll need a minimum 24" x 24" footprint plus clearance around the unit. This range is NOT designed for compact travel trailers, fifth wheels, or smaller RVs with limited kitchen space. If you currently have a 17" or 21" range, upgrading to this 24" model will require verifying you have sufficient floor space and that the larger footprint won't block walkways or interfere with other appliances. Measure your available space carefully before ordering. The free-standing design means it doesn't require a specific cutout - it simply sits on the floor - but you must have adequate room. If your RV kitchen is compact, consider the 17" (PLD617RTSS) or 21" (PLD621RTSS) drop-in models instead.
A: The 3.7 cubic foot oven is one of the largest available in the RV market and represents 2-3 times the capacity of compact RV ranges. This size difference dramatically expands what you can cook. While 17"-21" ranges typically have 1.3-1.8 cu ft ovens that struggle with anything larger than a 9x13" dish, the PLS624RTSS handles: full-size turkey roasters (12-15 lb birds), multiple 9x13" casserole dishes simultaneously, 16" pizzas with room to spare, large sheet pans for batch cooking, tall layer cakes and bundt pans, multiple rack cooking for complex meals, and large roasting pans with vegetables. The 7 rack positions (vs 2-3 in compact ranges) give you exceptional flexibility for different cooking methods. If you're full-time RVing, love to entertain, cook for a family, or simply want home-kitchen capabilities on the road, this larger oven capacity is transformative. Many RVers report it's the difference between feeling limited by their RV kitchen and actually enjoying cooking on the road.
A: The 4-burner configuration provides significant advantages for serious cooking. While 3-burner ranges force you to choose between three pots/pans at once, the 4-burner layout offers: simultaneous cooking of main dish, side dish, sauce, and vegetable; dedicated simmer burner (3,500 BTU) that won't scorch delicate sauces; powerful 9,100 BTU burner for high-heat tasks; two medium burners (6,000 BTU each) for everyday cooking. The layout is particularly valuable when preparing complex meals - you're not constantly juggling pots or cooking in sequence because you ran out of burner space. The range includes burners optimized for specific tasks: use the 3,500 BTU burner for melting chocolate or keeping gravy warm, the 9,100 BTU burner for boiling large pots of water or searing steaks, and the 6,000 BTU burners for everything else. If you only cook simple meals (heating soup, boiling pasta), a 3-burner might suffice. But if you enjoy cooking, entertain guests, or prepare meals with multiple components, the 4-burner design is absolutely worth it.
A: At 119 lbs, the PLS624RTSS is heavier than compact 17"-21" ranges (which typically weigh 64-71 lbs), but this weight is well within the capacity of Class A and Class C motorhome floors, which are engineered to support kitchen appliances plus the weight of stored food and cookware. The 24" x 24" footprint distributes this weight over 576 square inches, resulting in approximately 0.21 lbs per square inch - a very reasonable load. For comparison, a person standing on one foot exerts far more pressure. However, you should verify: your RV floor is in good condition with no soft spots or water damage, the area where the range will sit is level and structurally sound, and there are no specific weight restrictions in your RV's documentation (rare but worth checking). Most modern Class A and Class C motorhomes can easily handle this range. If you're concerned, consult with an RV technician or the RV manufacturer, but this is rarely an issue for vehicles designed for full-size kitchen appliances.
A: Free-standing ranges sit on the floor independently and don't require a specific cutout opening, while drop-in ranges fit into a cabinet cutout and are supported by the surrounding countertop. The PLS624RTSS is free-standing, which offers several advantages: easier installation (no precise cutout required, just adequate floor space); simpler replacement (no carpentry needed); flexibility in positioning (can be moved if needed); full-extension storage drawer (drop-ins often can't accommodate this feature). The trade-off is that free-standing ranges have finished sides since they're visible, while drop-in ranges have a more "built-in" appearance. For larger RVs, free-standing is often preferred because: installation is straightforward - just set it in place, connect gas and electric; the storage drawer provides valuable kitchen storage; you can relocate the range during RV renovations if needed. If your RV currently has a drop-in range cutout and you want to switch to this free-standing model, you'd need to remove the drop-in range, fill/finish the cutout area, and create floor space for the free-standing unit. Most RVers find the storage drawer and installation simplicity make free-standing the better choice for full-size ranges.
A: The PLS624RTSS uses more propane than compact ranges due to its larger burners and oven, but the difference is less dramatic than you might expect. Here's the reality: the range only consumes propane when burners or the oven are actively in use. With 24,600 total BTUs across four burners (vs ~18,000-21,000 BTUs for compact 3-burner ranges), you'll use roughly 15-20% more propane IF you're running all burners simultaneously - but most cooking doesn't involve this. For typical use, the propane consumption difference is minimal because: you're not usually running all four burners at once, modern sealed burners are efficient, you're burning propane for the same duration whether using a small or large range, the larger oven may actually be more efficient per cubic foot. Practical impact: if you cook three meals daily and use the oven regularly, expect perhaps 1-2 extra days between propane fills compared to a compact range. The larger capacity means you might actually save propane by cooking larger batches less frequently. If propane consumption is a primary concern, evaluate your cooking habits - if you rarely use all burners or the oven extensively, the difference will be negligible. The cooking capability and convenience usually far outweigh the minor increase in propane use.
A: The PLS624RTSS is rated for elevations up to 4,500 feet with full BTU performance. Above 4,500 feet, BTU output decreases by approximately 4% for every 1,000 feet of additional elevation due to reduced oxygen in the air and changes in the air-fuel mixture. At 8,500 feet, for example, you'd experience roughly 16% reduction in heat output. What this means practically: at 6,000 feet, your 9,100 BTU burner performs closer to 8,730 BTU - still very powerful; at 8,000 feet, it performs closer to 8,000 BTU - noticeable but manageable; at 10,000+ feet, performance reduction becomes more significant. If you frequently travel or camp at high altitudes: water takes longer to boil (plan extra time), high-heat searing is less effective (but still possible), oven temperatures may require adjustment (use an oven thermometer). Many high-altitude RVers find this range still outperforms compact models even with the altitude reduction. The larger burners start with higher BTUs, so even with a 15-20% reduction, you're still getting excellent heat output. If altitude is a major concern, be aware that ALL RV ranges experience this performance reduction - it's a physics limitation, not a product defect. No adjustment kit can overcome the reduced oxygen at altitude.
A: This range is factory-set for liquid propane (LP gas) and is NOT designed for conversion to natural gas. Unlike some residential ranges that include conversion kits, RV ranges are engineered specifically for LP propane systems and attempting conversion would be: extremely dangerous (gas leaks, fire risk, carbon monoxide poisoning), warranty-voiding, likely illegal per RV codes and safety standards, mechanically complex (would require different orifices, regulators, and adjustments for each burner). RVs use low-pressure LP systems (11" W.C.), while natural gas systems operate at different pressures with different gas compositions. The burner orifices, valves, and ignition systems are calibrated specifically for LP gas. There is no safe, approved conversion path for this range. If you're considering this because you want to hook up to a natural gas line at your home or RV park, DON'T. It's not worth the safety risk. Continue using propane even when parked long-term. If you absolutely need a natural gas range for stationary use, you'd need to purchase a residential range designed for natural gas - but that range won't be suitable for RV travel due to construction differences, lack of RV safety features, and mounting requirements.
A: Installation difficulty depends on your mechanical skills and the specific situation. The free-standing design makes this EASIER than drop-in ranges because there's no cutout modification required. A handy RVer can install this range if comfortable with: LP gas connections and proper leak testing procedures, 12V DC electrical wiring and connections, understanding RV propane and electrical systems, following detailed technical instructions. Installation steps: turn off LP gas and 12V power, remove old range if replacing, position new range in desired location, level using adjustable rear legs, connect LP gas supply line (requires proper fittings and thread sealant), connect 12V DC wiring to range terminals, test all connections for gas leaks using soap solution, test all burners and oven for proper operation, verify knob lights and oven light work correctly. Most RV service centers charge $150-400 for range installation labor. Critical safety note: LP gas work is potentially dangerous. Improper connections can cause gas leaks, fires, explosions, or carbon monoxide poisoning. If you're not completely confident in your abilities - especially with gas connections - hire a professional. At minimum, even if you do the installation yourself, have a qualified RV technician inspect your gas connections and perform a professional leak test before using the range. The cost of professional installation is trivial compared to the risks of improper gas work.
A: Regular maintenance is straightforward and similar to residential ranges. For the cooktop: wipe the porcelain enamel surface with a damp cloth and mild dish soap after each use; remove and hand-wash the cast iron grates periodically in warm soapy water; clean the sealed burners by removing debris from burner caps and ports using a soft brush or toothpick (never use sharp metal objects); the cast iron grates will develop seasoning/patina over time, which is normal and protective. For the oven: wipe spills promptly from the black enamel interior; use standard oven cleaner for baked-on messes (the oven is not self-cleaning); clean the oven door window with glass cleaner; wash the nickel rack and drip pan periodically. For the burner ports: if burners aren't lighting properly or flame patterns are uneven, ports may be clogged - gently clean the small holes in burner caps with a needle, paperclip, or dedicated burner cleaning tool. For the storage drawer: periodically remove and clean to prevent accumulation of crumbs and spills. Annual professional inspection: have a qualified RV technician inspect gas connections annually to ensure safe operation - this is good practice for all LP appliances and may be required to maintain warranty coverage. The larger size doesn't require significantly more maintenance time than compact ranges - just slightly more surface area to wipe down. Most owners spend 5-10 minutes per week on routine cleaning.
