The AP Products Gas Spring replaces your old lift supports on your RV storage compartment doors, beds, trunk lids, rear hatches and more! This gas prop / dampener will give you excellent lift support, propping open your compartment door and keeping it open until you close it.
- Suspa P/N: C16-08568
- Extended length: 19.69"
- Compressed Length: 11.82"
- Stroke: 7.87"
- Force: 20 lbs
- Attaches to a 10 mm ball
- Plastic 10 mm ball socket end fittings with integrated locking clip.
- Weight: 3 lbs.
- Made in the USA.
- Limited 1 year manufacturer warranty.
- Sold individually.

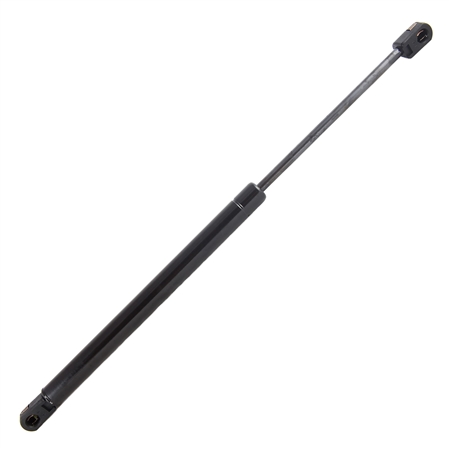

AP Products Gas Spring 19.69" Length - 20 Lb Force
Installation Instructions: Have someone hold the hatch, hood, trunk, or rear window open while replacing the lift support. Do not use a prop. Before removing the old lift support, examine any hardware provided to determine which components must be reused. The new lift support must be installed in the same position as the one which was removed. Do not scratch rod. When installing the rod, the chamber side must be placed upward while the rod side is down.
Removable Ball Connectors: Remove old lift support by prying off the retaining ring, cap lock, or the security lock ring. Press new lift support onto ball stud and properly install retainer.
|
