Thetford Aqua Magic Style II — Parts & Repair Guide

Everything you need to repair and maintain your Aqua Magic Style II in one place. Quick-add common fixes, compatible seals/valves, seat & cover options (pre/post May 2015), bases, pedals, and mounting hardware.

Fast Shipping Talk/Text Support 90-Day Returns
Shop All Style II Parts View Exploded Diagram & Keys

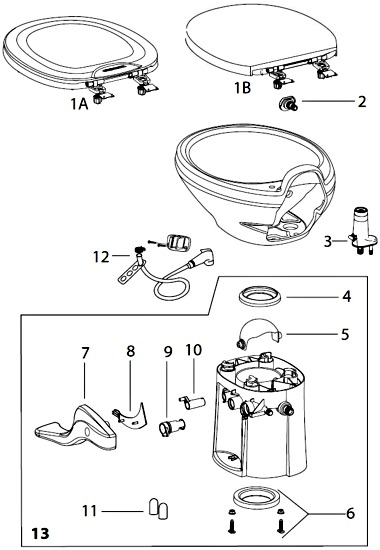

Exploded Diagram & Parts Key
Tip: Click a part in the grid above to buy, or use the keys below if you’re matching by figure number.


Fig #Part #Description
1A42036Seat Assembly for toilets built prior to May 2015 - White
1B42178Seat Assembly for toilets built after May 2015 - White
1B42179Seat Assembly for toilets built after May 2015 - Bone
234124Replacement Nozzle Kit - White
34125Replacement Nozzle Kit - Bone
334122Vacuum Breaker Kit
442141Waste Ball Seal
534117Waste Ball Seal - White
642115Closet Bolt Kit
742067Foot Pedal High - White
42068Foot Pedal High - Bone
42079Foot Pedal Low - Bone
942049Replacement Water Valve Kit
1042048Waste Ball Drive Arm Kit
1219289Hand Sprayer Kit - Chrome
1342137Replacement Base Kit - White
42138Replacement Base Kit - Bone
