How To Replace, Upgrade, Or Add An RV Roof Vent

What This Guide Covers

This article is written for the most common RV setup: a framed roof with a 14 x 14 inch roof vent opening. The basic principles apply whether you are working on a non powered vent, a factory powered vent, or a premium upgrade fan.

Three Common RV Roof Vent Projects

• Simple replacement: Swapping a cracked, leaking, or worn out vent for a similar non powered unit. Parts and accessories are here: Non Powered RV Roof Vents and Replacement Parts.
• Powered upgrade: Replacing that cheap, loud bathroom or main living area fan with a higher quality unit from Maxxair, Hengs, or Fantastic for dramatically better airflow and lower noise. See options here: Powered RV Vent Fans.
• Adding a new vent: Cutting and framing a brand new 14 x 14 opening to add ventilation where there was none before.

On top of that, we will also touch on vent covers, which let you use your vent in more weather and help protect the lid and seal over time: RV Vent Covers.

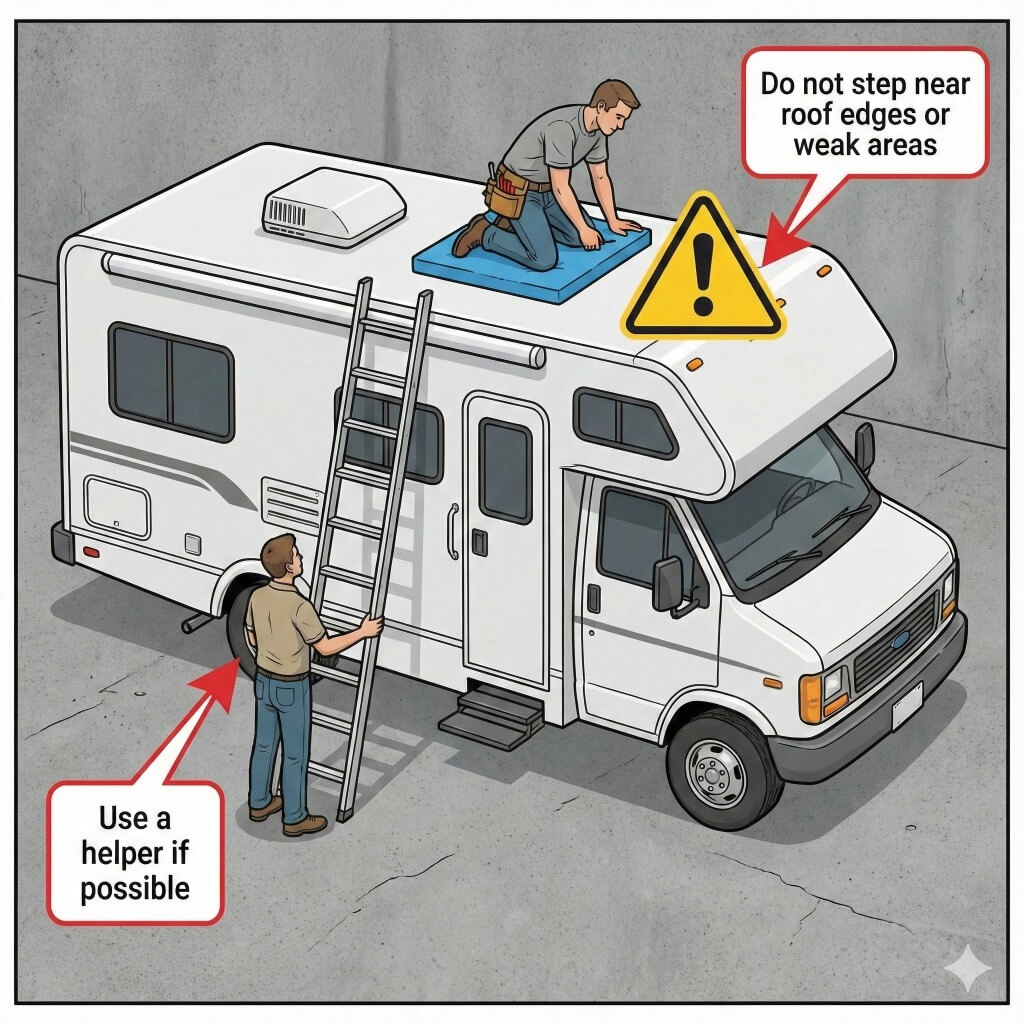

Safety First: Working On An RV Roof

All three projects share the same reality: you are working on a roof. Treat this like a real roofing job, not a quick little chore. A bad step or a rushed seal can cost you far more than the new vent.

Basic Safety Checklist

• Choose the right day. Work on a dry day with minimal wind. Avoid wet, icy, or frosty roofs.
• Use a solid ladder. Set your ladder on level ground and make sure it is stable. Secure it at the top if possible.
• Wear shoes with grip. No slick soles. You want real traction on the roof surface.
• Protect the roof membrane. Use a kneeling pad or foam board to spread out your weight and avoid point damage.
• Watch your footing. Stay away from roof edges and soft spots, and move slowly and deliberately.
• Kill power before wiring. For powered vent work, unplug shore power and disconnect the house battery before touching any wiring.

How Your RV Roof Is Built

Whether you are replacing, upgrading, or adding a vent, you are dealing with the same roof structure. Once you understand the roof layers, it is easier to cut, drill, and seal without causing unintended damage.

• Roof membrane: The outer skin of the roof, often rubber, TPO, or fiberglass.
• Roof decking: Usually plywood or OSB under the membrane.
• Insulation: Foam board or fiberglass insulation under the decking.
• Roof framing: Wood or aluminum rafters that support the roof and form the vent opening.
• Interior ceiling panel: The finished panel you see from inside the RV.

The vent body passes through a framed 14 x 14 opening in this sandwich. The vent flange sits on top of the roof membrane and is sealed to keep water out. That flange and the sealant around it are your primary defense against leaks.

This view explains why you:

• Use butyl tape or a gasket under the flange
• Seal over screw heads and around the flange edge
• Avoid over tightening screws that can crush the roof sandwich and warp the flange

Tools And Materials For All Three Projects

Replacing, upgrading, and adding a vent all use the same basic toolkit. Adding a new opening adds some cutting and framing, but the core tools are the same.

Tools

• Cordless drill or driver with screwdriver bits
• Phillips and flat head screwdrivers
• Putty knife or plastic scraper for old sealant
• Utility knife with sharp blades
• Caulk gun
• Tape measure and square
• Pencil or marker
• Wire strippers and crimpers (for powered vent upgrades and installs)
• Non contact voltage tester or meter (for wiring)
• Optional for new vents: jigsaw or oscillating saw for cutting a new opening

Materials

• New vent: Either a non powered vent or a powered vent fan. See:
  • Powered RV Vent Fans
  • Non Powered Vents and Replacement Parts
• Interior garnish ring (usually included with the vent)
• Butyl tape or a vent installation gasket
• Self leveling RV roof sealant compatible with your roof membrane
• Wood screws appropriate for the roof structure
• Wire connectors and correct gauge wire (for powered vents)
• Optional but smart: a vent cover to protect the new vent and allow use in more weather conditions: RV Vent Covers.

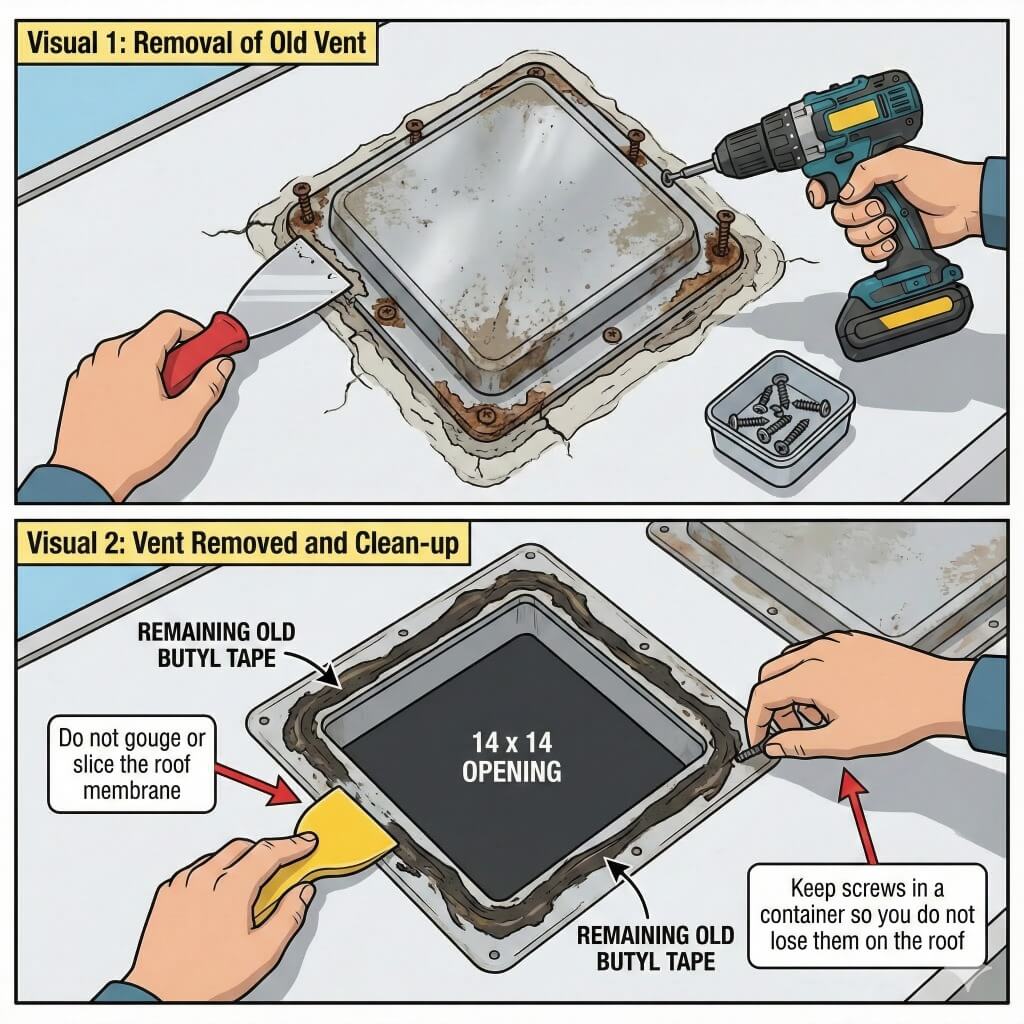

Step 1: Remove The Old Roof Vent (Replacement Or Upgrade)

If you are replacing a broken vent or upgrading a cheap factory fan, removal is the same. The goal is to get the old unit out without tearing the roof membrane or chewing up the surrounding sealant more than necessary.

Inside The RV

1. Remove the interior garnish trim by taking out the screws around the vent opening.
2. If the vent has a powered fan, locate the power wires and disconnect them. Cap or tape the bare ends so they cannot touch each other or the metal vent body.

On The Roof

1. Inspect the vent and see how it is sealed. Most have screws hidden under a thick bead of sealant around the flange.
2. Use a putty knife to carefully scrape old sealant away from the screw heads and from the outer edge of the flange.
3. Remove all of the mounting screws and put them in a container so they do not roll off the roof.
4. Gently pry up the vent flange. Work slow and steady around the perimeter. If it fights you, use a utility knife to cut through stubborn butyl tape or sealant without slicing the roof membrane.
5. Lift the vent out of the 14 x 14 opening and set it aside.

Clean The Roof Surface

Use your scraper and putty knife to remove as much old butyl tape and sealant as you reasonably can. You want a flat, clean contact surface so the new vent flange can sit tight and seal properly.

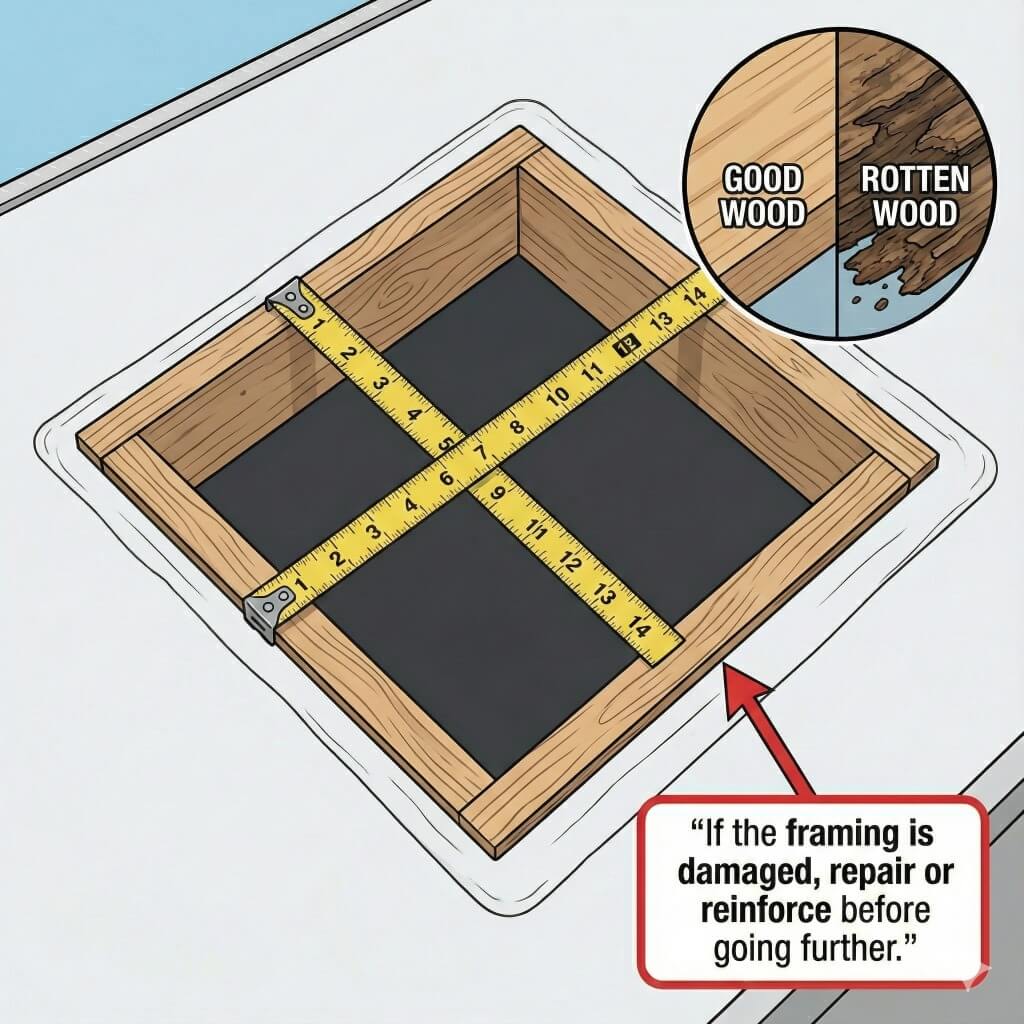

Step 2: Inspect And Prep The Roof Opening

Whether you are swapping to a similar non powered vent or upgrading to a high performance powered fan, you now have an open 14 x 14 hole in your roof. This is the time to deal with any hidden problems.

1. Confirm the size. Measure the opening both directions to confirm it is roughly 14 x 14 inches.
2. Inspect the framing. Check all four sides of the framed opening. If the wood is soft, dark, or crumbling, it has likely seen water damage and needs repair or reinforcement before you continue.
3. Clean up insulation. Remove loose insulation that might get into the fan or block airflow once the new vent is installed.
4. Dry fit the new vent. Set your replacement or upgrade vent into the opening from the roof side. It should sit flat and square. If it rocks or the roof is badly uneven, address that before you move on.

Step 3: Install The New Roof Vent Or Powered Upgrade

This step is where you either fix or create leaks. Take your time, especially with the butyl tape and sealant. The process is the same whether you are installing a basic non powered vent or a premium powered fan from brands like Maxxair, Hengs, or Fantastic.

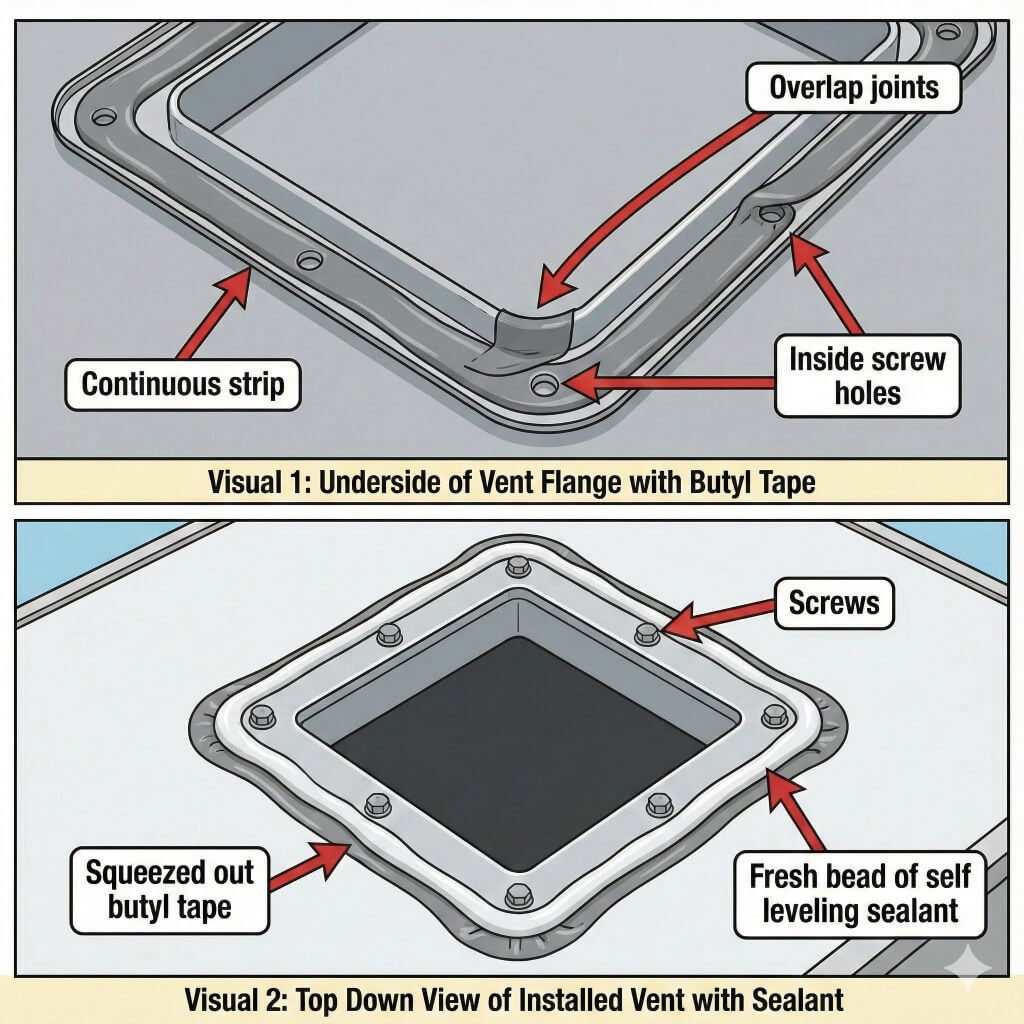

Prepare The Vent Flange

1. Flip the new vent upside down to expose the underside of the flange.
2. Apply a continuous strip of butyl tape around the flange where it will contact the roof membrane.
3. Overlap the ends of the tape slightly so there are no gaps. Position the tape just inside the screw holes so it will seal around them as you tighten.

Set The Vent In Place

1. Set the vent into the opening from the roof side, centered so the gap is even on all four sides.
2. Press down around the flange by hand to start compressing the butyl tape and seating the vent.

Install Mounting Screws

1. If needed, drill small pilot holes through the flange and into the roof decking.
2. Install the screws in a criss cross pattern so the flange pulls down evenly and the butyl tape squeezes out uniformly around the perimeter.
3. Stop tightening when you see a consistent squeeze of butyl tape. Do not overtighten to the point that you deform the flange or crush the roof sandwich.

Apply Roof Sealant

1. Use a self leveling RV roof sealant rated for your roof membrane.
2. Cover each screw head with a generous dab of sealant.
3. Run a continuous bead of sealant all the way around the outer edge of the flange, tying screw heads and edges into a single sealed border.
4. Check for thin spots or gaps and fill them now. You want an unbroken seal all the way around the flange.

Step 4: Wiring A Powered Roof Vent Upgrade

This section applies if you are swapping a basic bathroom or living area fan for a higher quality powered vent, or converting a non powered opening to a powered fan. Many RVs are delivered with a cheap powered vent that screams on high and barely moves air. Upgrading to a Maxxair, Hengs, or Fantastic fan gives you better airflow, more control, and much lower noise.

Confirm Power Is Off

• Unplug shore power.
• Disconnect the house battery or shut off the master disconnect.

Identify The Circuit

If you are upgrading an existing powered vent, reuse the existing 12 volt wiring that already runs to the opening. If you are converting a non powered vent to powered, the circuit needs to be run from a properly fused 12 volt DC source. If you are not comfortable with 12 volt wiring, this is a good time to bring in a qualified tech.

Make The Connections

1. Most powered vents have two main leads: one positive 12 volt wire and one negative or ground wire. Check the vent instructions for exact color coding.
2. Strip the ends of the RV wires and the vent wires.
3. Use crimp connectors or other approved 12 volt connectors.
4. Connect positive to positive and negative to negative. Verify polarity if there is any doubt.
5. Tuck the connections into the roof cavity where they will not contact moving fan parts or sharp metal edges.

Test The New Fan

1. Reconnect battery and power.
2. Turn the fan on and cycle through speeds. You should notice a big drop in noise and a big jump in airflow compared to the factory fan.
3. Confirm the lid opens and closes correctly and that any built in thermostat or remote functions work as expected.
4. Turn power back off while you finish the interior trim.

You can compare upgrade options and features here: Powered RV Vent Fans.

Step 5: Install The Interior Garnish

The interior garnish ring finishes off the vent opening inside and hides the rough cut edges of the ceiling. This step is the same whether you replaced a non powered vent, upgraded a powered fan, or added a brand new vent.

1. Inside the RV, dry fit the garnish ring up into the opening. Most are longer than the ceiling thickness and designed to be trimmed.
2. If it extends too far down, mark how much needs to come off. Many garnish rings have molded trim lines to guide you.
3. Trim the garnish carefully with a fine tooth saw or a sharp utility knife, taking small cuts until the length is right.
4. Slide the garnish back into place so it fits snugly against the ceiling and around the vent body.
5. Secure it with the supplied screws, tightening just enough to pull it tight. Do not overtighten and crack the plastic.

Adding A Brand New Roof Vent Where There Was None

Cutting a new opening in an RV roof is an advanced project. If you are not confident with framing and cutting, you may be better off hiring a pro. But at a high level, this is what is involved.

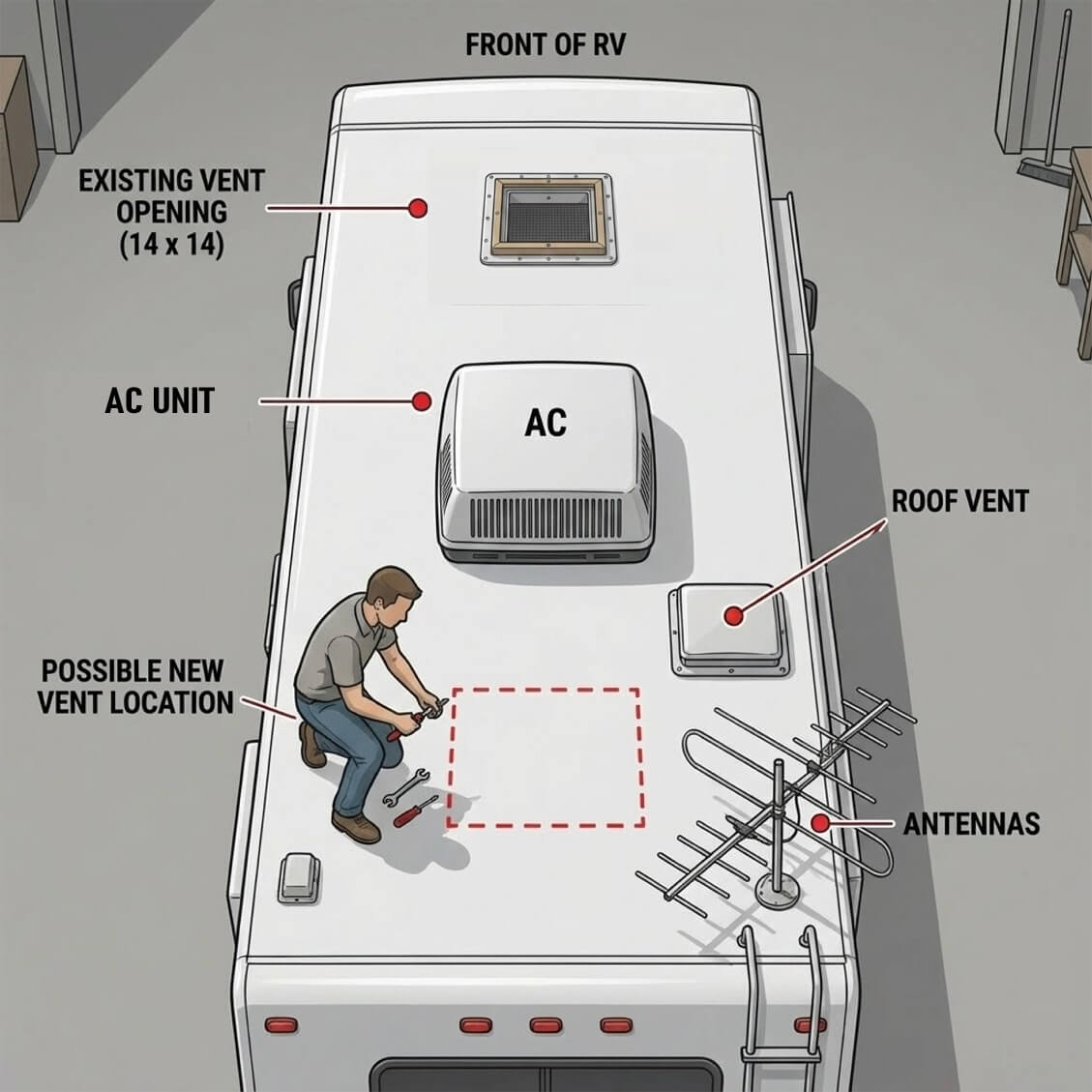

Planning The New Opening

• The new opening needs to be between roof rafters or framed in so all four sides are supported.
• You must confirm there are no wires, ducts, or hidden structures where you plan to cut.
• Avoid low spots where water tends to pool.

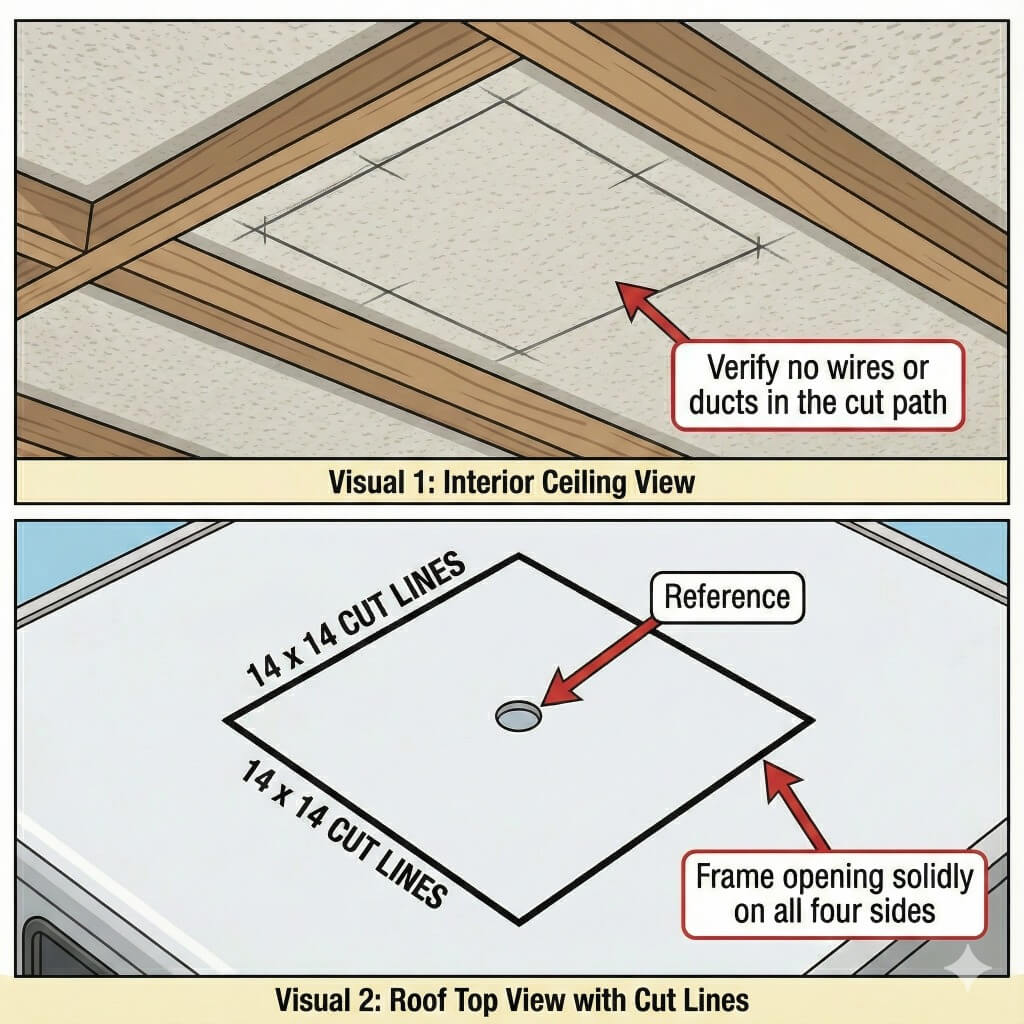

High Level Steps

1. Inside the RV, pick the location and mark the approximate center between ceiling joists.
2. Drill a small reference hole from the inside through the ceiling and roof at that center point.
3. On the roof, find the reference hole and use a square to mark out a 14 x 14 inch opening around it.
4. Carefully cut through the roof membrane and decking along your lines, following roof manufacturer recommendations for cutting the membrane.
5. Frame the opening so all four sides of the cutout are supported and tied back into the rafters.
6. Once the opening is framed and solid, proceed with the same flange, butyl tape, sealant, wiring, and garnish steps as you would for a replacement or upgrade vent.

Why You Should Add A Vent Cover

Once you have gone through the work of replacing, upgrading, or adding a vent, protecting it is cheap insurance. A vent cover sits over the vent on the roof and lets you use the vent in more real world conditions.

Benefits Of A Vent Cover

• Helps keep rain out so you can run the vent during light rain without soaking the interior.
• Protects the vent lid from sun and hail, extending its life.
• Allows you to leave the vent slightly open while traveling or when the RV is stored, which helps control heat and moisture buildup.
• Available in different styles and colors to match your setup.

Vent covers are an easy add on to a new or existing vent. You can see options here: RV Vent Covers.

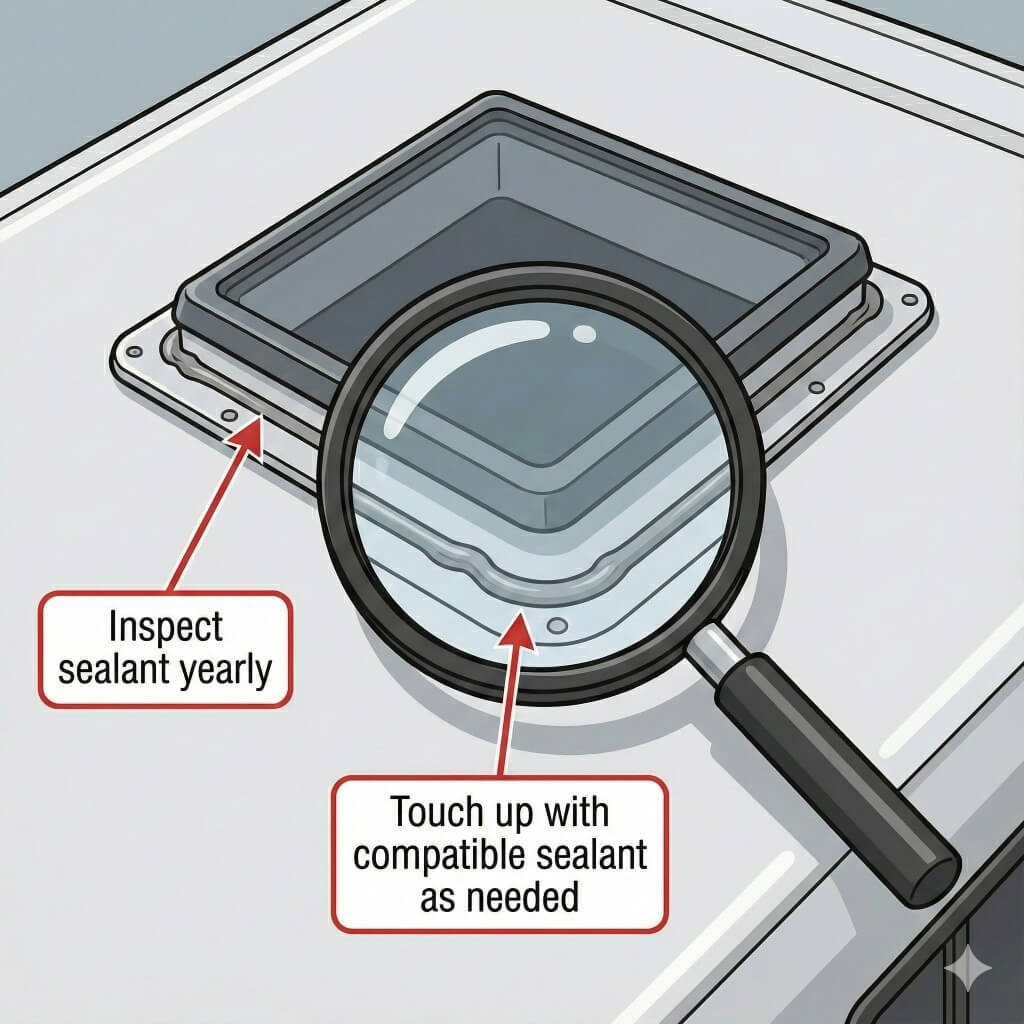

Final Checks And Ongoing Maintenance

Whether you replaced a basic vent, upgraded to a premium fan, or cut in a brand new opening, you finish the same way: test everything and set a simple maintenance routine.

On The Roof

• Open and close the vent lid fully and confirm it does not hit any AC units, antennas, or vent covers.
• Inspect the sealant around the flange. Look for missed spots, gaps, or thin areas and touch them up while you are already up there.
• Note the installation date so you can re inspect seals once or twice a year.

Inside The RV

• Open and close the vent several times to confirm smooth mechanical operation.
• For powered upgrades, run the fan at different speeds and listen. A quality fan upgrade should move significantly more air with much less noise than the factory fan.
• Verify any switches, remotes, or thermostats are functioning correctly.

Simple Maintenance Schedule

• Every 6 to 12 months, inspect the sealant around the vent flange and reseal any cracks or gaps.
• Check that mounting screws are still snug.
• Clean the vent screen and fan blades so airflow stays strong.
• If you use a vent cover, inspect its mounting hardware and make sure the cover opens and closes correctly.

Frequently Asked Questions

Is upgrading a factory powered vent really worth it?

Yes. Most factory vents are loud and weak. Upgrading to a quality powered vent from brands like Maxxair, Hengs, or Fantastic usually gives you better airflow, more speed and direction control, and noticeably less noise. That makes a huge difference in small spaces like bathrooms and bedrooms.

Can I install a powered vent where I had a non powered vent?

Yes, as long as you have a suitable 12 volt circuit available or are willing to add one. The physical opening is the same 14 x 14 size. The extra work is wiring and any switch or control mounting the new vent requires.

Do I need a vent cover?

You can run a vent without a cover, but a cover lets you use it in more conditions, protects the lid, and helps keep water out. For the cost, it is a solid add on, especially after a powered vent upgrade.

When should I hire an RV tech instead of doing this myself?

Replacing a vent like for like is a reasonable DIY project if you are comfortable on a roof and handy with basic tools. If you are dealing with rotten framing, cutting a brand new opening, or running new 12 volt wiring, paying a tech can save time, frustration, and potential mistakes.
