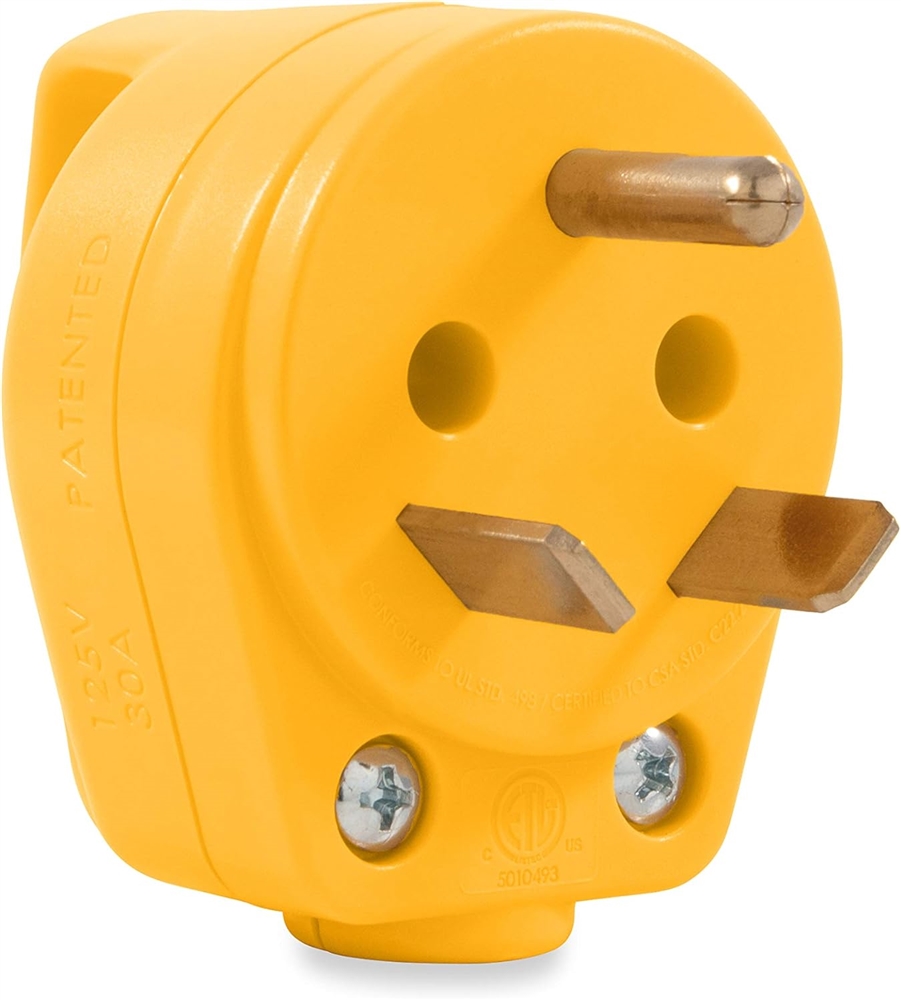

Compact wire-on replacement plug for 30-amp RV power cords. Same NEMA TT-30P configuration as the full-size 55242 but with a smaller profile that fits completely inside the RV's cable hatch door so it can be closed during travel. PowerGrip handle, 5.75" x 3.88" x 2.50". Wiring instructions included.
The Camco 55283 PowerGrip Mini is a compact version of the 55242 full-size replacement plug — same NEMA TT-30P male configuration, same 125V/3750W rating, same wire-on installation, but with a smaller overall housing that is specifically designed to fit completely inside the RV's power cord cable hatch so the hatch door can be fully closed during travel.
On many RVs, the standard full-size 55242 replacement plug is too large to retract fully into the cable hatch, leaving the plug protruding or preventing the door from closing. The 55283 solves this: at 5.75" x 3.88" x 2.50", it is compact enough to tuck into the cable compartment with the cord, keeping the exterior clean and the plug protected from road debris, rain, and UV exposure while driving. Like the 55242, it includes a PowerGrip ergonomic handle for easy gripping and unplugging, and wiring instructions for safe installation.
Installation is identical to the full-size 55242: 1. Cut back the cord jacket and strip each wire end 2. Connect wires to the correct terminals per the included wiring instructions 3. Secure the housing around the cord Standard wire terminal assignments (typical 30A RV cord): Black = Hot (X) · White = Neutral (W) · Green/Bare = Ground (G) Always disconnect the cord from shore power completely before doing any wiring work.
• 1x Camco 55283 PowerGrip Mini TT-30P Male Replacement Plug • Wiring instructions Related products: • 55242 — Full-size 30A PowerGrip male replacement plug (use when hatch clearance is not a concern) • 55243 — PowerGrip 30A female replacement receptacle (TT-30R) • 55191 — PowerGrip 30A extension cord, 25 ft. • 55197 — PowerGrip 30A extension cord, 50 ft.
The 55283 is a wire-on replacement plug requiring cord preparation and terminal wiring. It does not come pre-wired and cannot be used standalone as an adapter. If you need a complete 30-amp adapter rather than a cord repair part, see Camco's adapter line.
If your RV's cable hatch door closes fully with the standard replacement plug stored inside, the 55242 works fine. If the plug protrudes or prevents the door from closing, the 55283 Mini is the solution.
