Connect a 50-amp RV to a compatible 30-amp power source with the Camco 55460 Power Grip circuit analyzer dogbone. This 18" adapter adds fault indication and surge protection in one compact 30A male-to-50A female connection.
The Camco 55460 Power Grip RV Circuit Analyzer Dogbone Adapter is designed to connect a 50-amp RV power cord to a compatible 30-amp pedestal or power outlet. It is rated for 125 volts and 3750 watts.

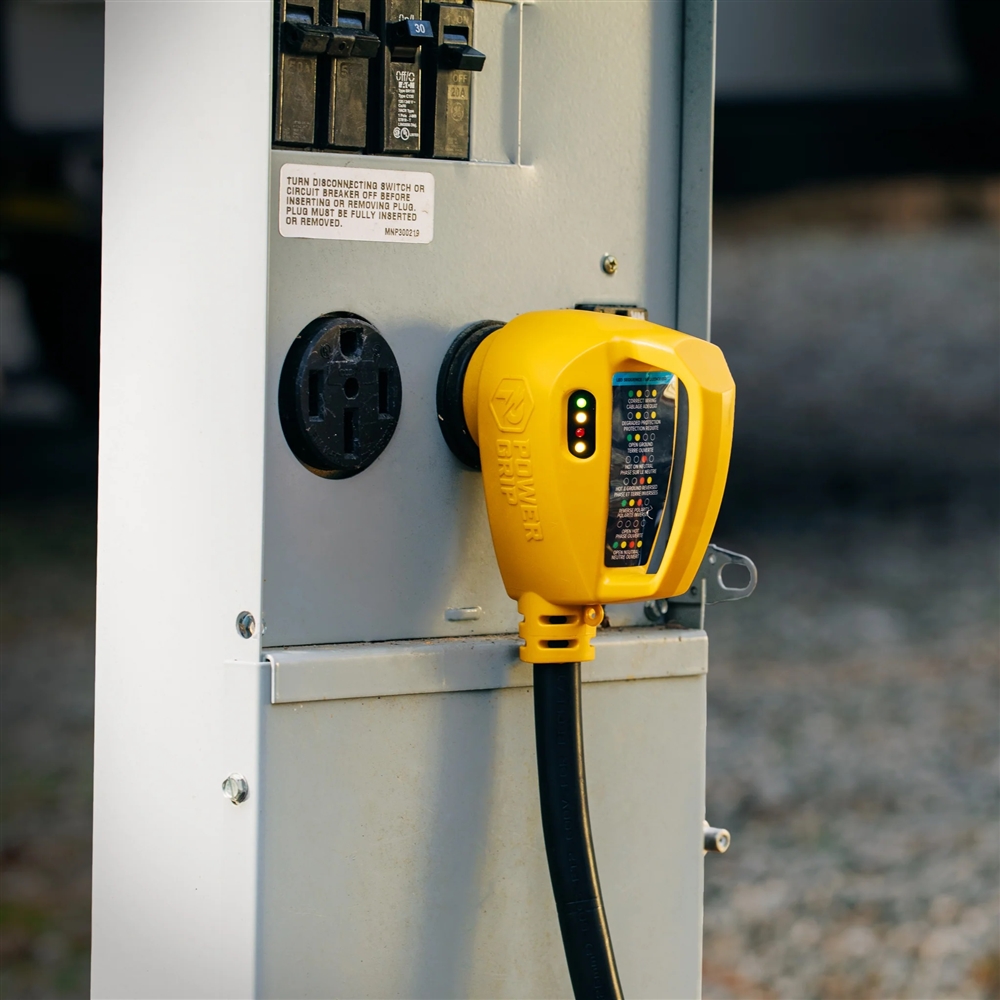

This 18" adapter combines a dogbone connection, circuit analyzer, fault indication, and integrated surge protection in one unit. The PowerGrip handle helps make plugging and unplugging easier at campground pedestals and RV power hookups.
Connects a 50-amp RV cord to a compatible 30-amp power source

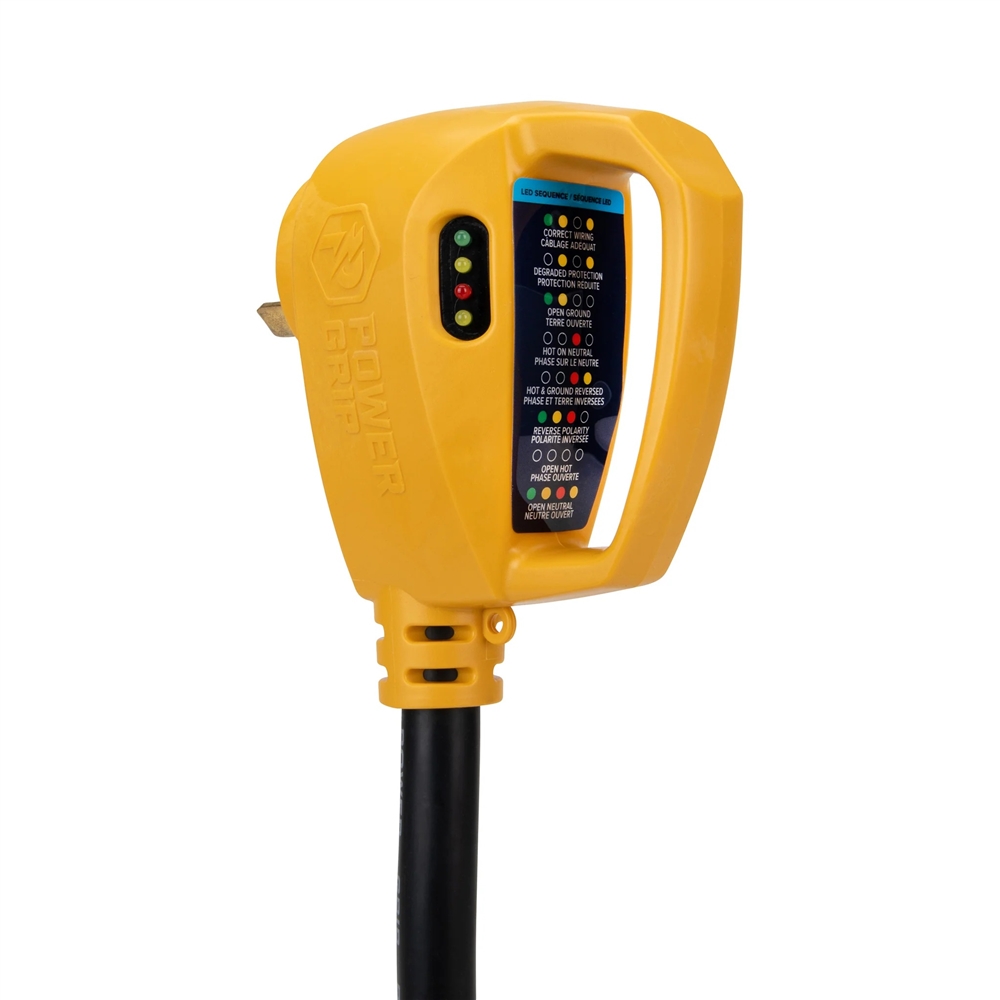

Fault indication helps identify common power connection issues
Integrated surge protection helps guard RV electronics
Grip handle helps reduce strain when plugging and unplugging
Designed for connecting a 50-amp RV to a compatible 30-amp, 125V power source. This is an 18" dogbone adapter, not an 18' extension cord. Confirm RV amperage, pedestal outlet type, plug configuration, voltage, GFI/GFCI outlet limitations, and connected load before ordering.
1. Confirm Power Source: Verify the pedestal or outlet is a compatible 30-amp, 125V power source. 2. Connect Adapter: Plug the 30-amp male end into the compatible power source. 3. Check Indicators: Review the circuit analyzer fault indicators before connecting the RV power cord. 4. Connect RV Cord: If the indicators show a proper connection, plug the RV’s 50-amp power cord into the female end of the adapter. 5. Disconnect Safely: Turn off or disconnect loads before unplugging the RV cord and adapter.

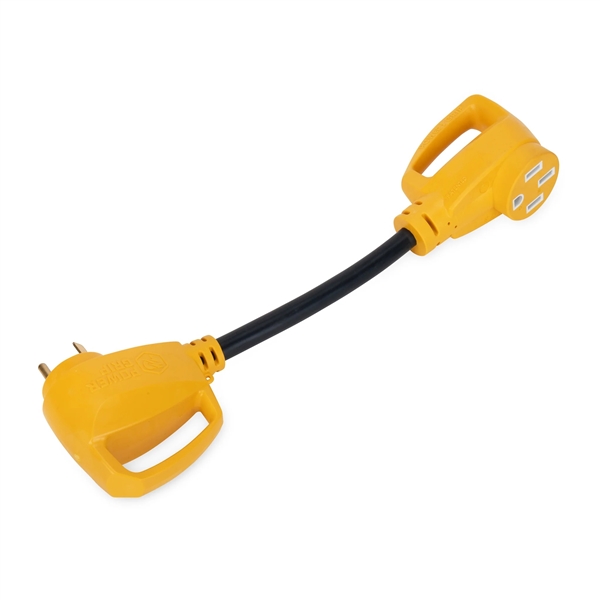

One Camco 55460 Power Grip 18" 30-amp male to 50-amp female circuit analyzer dogbone adapter with integrated surge protection
Camco Customer Support: Phone: 800-334-2004 Website: camco.net For fitment help, confirm the RV amperage, pedestal outlet type, plug configuration, voltage rating, GFI/GFCI outlet limitations, and complete RV electrical setup before ordering.
