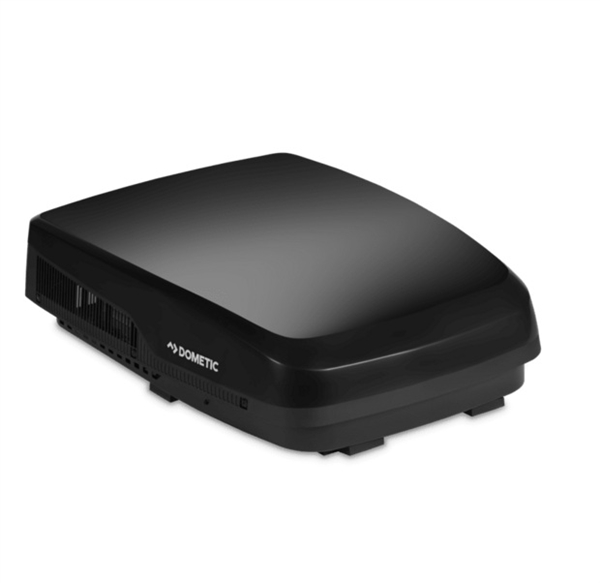

The Dometic FJX5457MBKCS FreshJet 5 is a direct-fit upgrade for coaches running the Penguin II. Same 14 x 14 in. roof cutout, same low 10.5 in. profile -- but quieter, more efficient, and built for modern campgrounds and boondocking demands.
If your Penguin II is struggling to keep up or finally gave out, the FreshJet 5 slots into the same roof opening without recutting or resealing around a new footprint. The reinforced steel base plate matches the Penguin II mounting pattern, so installation is a straightforward rooftop swap.
Beyond the fit, the FreshJet 5 is a genuinely better unit. Dometic redesigned the fan and compressor mounting to cut operational noise by up to 9 dB compared to the Penguin II -- a measurable difference you'll notice inside the coach. The built-in hard start capacitor handles the compressor start surge without a separate add-on kit, which matters on smaller generators and shore power pedestals with marginal amperage.
Rated cooling capacity for coaches up to approximately 28-32 ft., depending on insulation and climate.
Clears low-clearance campsite structures and garages. Same height envelope as the Penguin II it replaces.
Integrated start capacitor reduces compressor start-up amp draw -- no separate hard start kit required.
Lower global warming potential than R-410A. Factory sealed -- no field refrigerant servicing required or intended.
Dometic redesigned the blower wheel, compressor mounts, and internal airflow path on the FreshJet 5. The result is a noticeably quieter cabin -- critical for full-timers, light sleepers, and anyone who runs AC overnight. A 9 dB reduction is roughly perceived as half as loud by the human ear.
R-32 is a single-component HFC refrigerant with a lower global warming potential than the R-410A used in older Dometic units. It is factory-charged and sealed at the factory. This is not a field-serviceable refrigerant system -- if the sealed circuit is compromised, the unit must be replaced or returned to a certified Dometic service center. Do not attempt to recharge or modify the refrigerant circuit.
The FreshJet 5 uses an optimized scroll compressor mounting with vibration-isolating grommets and a redesigned centrifugal blower wheel. Combined with a more aerodynamic internal air duct, the unit runs measurably quieter at both high and low fan speeds. If you've ever been kept awake by a rattling Penguin II, the difference is real and immediate.
The base pan is constructed from reinforced steel rather than the lighter-gauge materials used in some competing low-profile designs. This reduces flex and vibration transmission into the roof structure, contributes to the quieter operation, and provides a more rigid sealing surface against the roof gasket. For full-timers covering high annual mileage, a stiffer base means fewer leak callbacks down the road.
The matte black ABS shroud is formulated for UV resistance. Black shrouds absorb more solar heat than white -- this is a cosmetic choice some owners prefer for aesthetic matching with black-accent RV exteriors. For hot-climate full-timers who prioritize maximum cooling efficiency, white shroud variants are also available in the FreshJet 5 lineup. Refer to the polar white model (FJX5457MWHCS) if color is a factor in your purchase.
The FreshJet 5 requires a standard 14 x 14 in. roof opening. Verify your existing opening dimensions before ordering. The unit ships with a mounting gasket and hardware, but does not include a ceiling assembly or ducted distribution kit -- order separately if needed. Confirm your roof structure can support the unit weight (approximately 72 lb.) and that your existing wiring is 115V AC, 60 Hz.
The FJX5457MBKCS rooftop unit is compatible with Dometic FreshJet 5 series ceiling assemblies, including both non-ducted and ducted configurations. If you are retaining your existing Penguin II ceiling assembly, verify compatibility with Dometic before installation -- not all Penguin II ceiling assemblies are forward-compatible with FreshJet 5 rooftop units. The unit is compatible with Dometic Single Zone CT thermostat systems.
