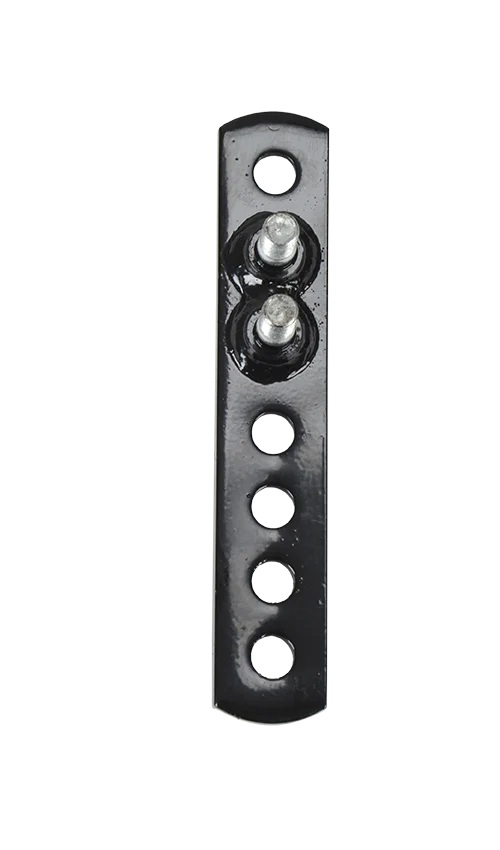

Replacement outside link plate for Fastway e2 weight distribution hitch sway-control bracket assemblies. This 2-studded outside link plate bolts to the outside of the trailer frame and holds the mounting points for the e2 L-bracket.
The Fastway 93-02-5350 e2 Outside Link Plate is a replacement component for the trailer-frame sway-control bracket assembly used on Fastway e2 weight distribution hitches. It installs on the outside of the trailer frame and provides the mounting studs used to attach the e2 L-bracket.
This outside link plate works with compatible Fastway e2 6K, 8K, 10K, and 12K round bar and trunnion bar hitch systems. It is useful when the original outside link plate is missing, damaged, bent, corroded, or being replaced during bracket service.
Replacement 2-studded outside link plate for Fastway e2 sway-control bracket assemblies
Works with compatible Fastway e2 systems rated from 6,000 to 12,000 lbs GTW
Holds the mounting studs for the e2 L-bracket on the outside of the trailer frame
Compatible with Fastway e2 round bar and trunnion bar hitch systems
This is the outside link plate for the Fastway e2 trailer-frame bracket assembly. It mounts on the outside of the trailer frame and pairs with the matching inside link plate on the inside of the frame. Confirm the outside link plate, inside link plate, L-bracket, bolts, washers, nuts, L-pin, and clip are correctly installed before towing.
Replace the outside link plate if the original plate is missing, bent, cracked, heavily corroded, or if the L-bracket mounting studs are damaged. Damaged studs: Replace the plate if the studs are bent, stripped, cross-threaded, or no longer hold the L-bracket securely. Visible plate damage: Do not tow with a cracked, distorted, or loose trailer-frame bracket component. Heavy corrosion: Rust or pitting can weaken the bracket assembly and make correct hardware torque difficult. Used hitch setup: This part is helpful when restoring a used Fastway e2 hitch with missing or questionable trailer-frame bracket hardware.
Installation Steps: 1. Park Safely: Park the tow vehicle and trailer on level ground before servicing the hitch 2. Confirm Plate Position: Make sure this outside link plate is installed on the outside of the trailer frame 3. Pair with Inside Plate: Align the outside link plate with the matching inside link plate on the inside of the trailer frame 4. Attach the L-Bracket: Mount the e2 L-bracket onto the outside link plate studs in the correct position 5. Secure Hardware: Tighten all bracket hardware evenly and torque according to the Fastway e2 owner's manual 6. Seat the Spring Arm: Place the e2 spring arm onto the L-bracket and secure it with the proper L-pin and clip 7. Final Safety Check: Confirm both trailer-frame bracket assemblies, spring arms, L-pins, and clips are properly installed before towing Always follow the Fastway e2 owner’s manual for your specific hitch model. Do not tow with missing, damaged, modified, loose, or improperly installed weight distribution hitch hardware.
• (1) Fastway e2 2-Studded Outside Link Plate
Fastway Trailer Products / Progress Mfg.: Website: fastwaytrailer.com/contact-us Fastway is manufactured by Progress Mfg., the same company behind Fastway and Equal-i-zer towing products.
