Replace a damaged or worn offset-mount trigger latch on a compatible RV baggage or storage compartment door. This silver steel latch measures 3.21 inches long and uses mounting holes spaced 3 inches on center.

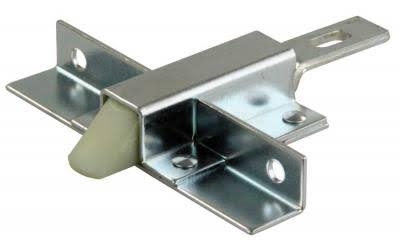

The JR Products 11715 is an OEM-style trigger latch designed to replace compatible hardware on RV baggage, storage, and exterior compartment doors. Its offset-mount configuration positions the latch mechanism away from the mounting surface to match doors that use this specific hardware arrangement.
The latch measures 3.21 inches in overall length and uses two mounting holes spaced 3 inches on center. Comparing these measurements and the offset position to the original latch helps ensure proper alignment with the door and existing catch.
Durable steel construction supports repeated compartment-door use, while the trigger-style mechanism provides straightforward operation. The latch is designed for quick installation in compatible applications and is backed by the JR Products lifetime warranty.
Compare the original latch's offset-mount configuration, 3.21-inch overall length, 3-inch mounting-hole spacing, trigger position, catch alignment, door thickness, and available clearance before ordering. Flush-mount, end-mount, and offset-mount trigger latches are not automatically interchangeable.
One JR Products 11715 offset-mount compartment door trigger latch
JR Products Customer Service: Phone: 1-800-269-7622 Website: jrproducts.net For fitment help, compare the original latch style, overall length, mounting-hole spacing, offset position, trigger orientation, and compartment-door configuration before ordering.
