Surface-mount aluminum city water flange for RV sidewall installation. Lead-free brass check valve, connect-it-tight grips, 1/2" FPT x 3/4" hose fitting. Cutout: 1-1/2" dia. Outside: 2-7/8" dia. Valve depth: 1-5/8". Includes rubber dust cap.

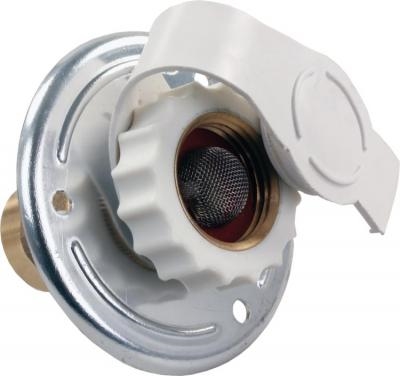

The JR Products 62175 is a surface-mount aluminum city water flange for connecting an RV to campground water pressure via a standard 3/4" garden hose. The aluminum flange is the premium material option in this series, offering corrosion resistance and a clean finished appearance on the exterior wall. The lead-free brass check valve prevents backflow, and the connect-it-tight grips make securing the hose connection quick and positive. Connects to 1/2" FPT plumbing inside the wall. Includes a rubber dust cap to protect the inlet when not in use.
JR Products offers city water flanges in multiple material and thread combinations, all sharing the same 1-1/2" cutout and 2-7/8" outside diameter: 62135 — Plastic flange, 1/2" FPT 62145 — Plastic flange, 1/2" MPT 62155 — Metal flange, 1/2" FPT 62165 — Metal flange, 1/2" MPT 62175 (this product) — Aluminum flange, 1/2" FPT 62185 — Aluminum flange, 1/2" MPT Verify your existing inside plumbing thread type (FPT or MPT) and choose the flange material that best suits your installation.
• (1) JR Products 62175 city water flange • (1) Rubber dust cap (62105)
Requires a 1-1/2" round cutout in the RV sidewall. Connects to existing 1/2" FPT plumbing inside the wall. Apply butyl tape or appropriate sealant behind the flange before mounting to prevent water intrusion.
