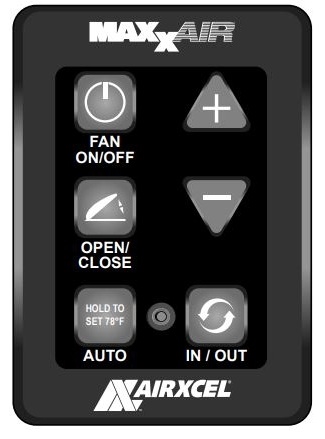

Black replacement 6-key hard-wired wall control panel for compatible Maxxair MaxxFan Plus and MaxxFan Deluxe RV roof vent fans.
The Maxxair 00A03650K is a replacement 6-key wall control panel for select MaxxFan Plus and MaxxFan Deluxe roof vent fans. If the original wall control is damaged, worn, cracked, or no longer responding properly, replacing the panel can help restore convenient fan operation from a fixed wall location.
This 6-key control is commonly listed for MaxxFan Plus 4700K / 4900K and MaxxFan Deluxe 8700K through 8900K models. It provides controls for fan power, vent lid position, intake/exhaust direction, auto mode, and thermostat set temperature.
Replacement hard-wired wall control for compatible Maxxair roof vent fans
Controls airflow direction on supported reversible MaxxFan models
Supports thermostat-based automatic fan operation on compatible fans
Opens and closes the vent lid from the wall control location
This wall control is not universal for every Maxxair roof vent. It is commonly listed for MaxxFan Plus 4700K / 4900K and MaxxFan Deluxe 8700K through 8900K models. Before ordering, verify your fan model, original wall control type, and cable connection style.
Before Starting: Disconnect 12V power to the roof vent fan before servicing control wiring or wall control components. Basic Replacement Steps: 1. Confirm Compatibility: Verify the fan model and compare the existing wall control to the replacement panel. 2. Disconnect Power: Turn off 12V power to help prevent shorts or control board damage. 3. Remove Old Panel: Carefully remove the existing wall control panel from its mounting location. 4. Document Wiring: Take a photo of the cable connection and routing before disconnecting the old panel. 5. Disconnect Cable: Unplug or disconnect the control cable without damaging the connector or cable end. 6. Inspect Cable: Check the cable and connector for corrosion, broken tabs, cuts, or pinched areas. 7. Connect New Panel: Connect the replacement wall control panel and seat it in place. 8. Restore Power: Turn 12V power back on and test fan on/off, vent open/close, intake/exhaust, auto mode, and thermostat functions.
Package Contents: • Maxxair 00A03650K replacement 6-key wall control panel NOT Included — May Also Need: • Control cable • Roof vent fan assembly • Fan control board or receiver • Wall plate screws or mounting hardware, if existing hardware is missing or damaged • Wiring harness or connector repair parts This listing is for the replacement wall control panel only. Inspect the cable, fan-side connection, power supply, and control board if the fan still does not respond after replacement.
To confirm compatibility before ordering, have the following ready: • Roof vent / fan model number • Existing wall control part number, if visible • Photos of the control panel and cable connector, if available • Whether the fan originally used a 6-key wall control • Description of the fan/control issue being diagnosed Why this matters: Maxxair wall controls vary by fan model and control functions. Matching the fan model and original wall control style helps avoid ordering a control panel that does not operate the fan correctly.
Match this wall control by fan model, original wall control type, and cable connection. This is the 6-key wall control, not the 4-key wall control or handheld remote.
