Smoke-lid manual-lift MaxxFan roof vent with 4-speed exhaust fan, ceiling-mounted controls, 12V DC operation, and standard 14" x 14" RV roof opening fit.

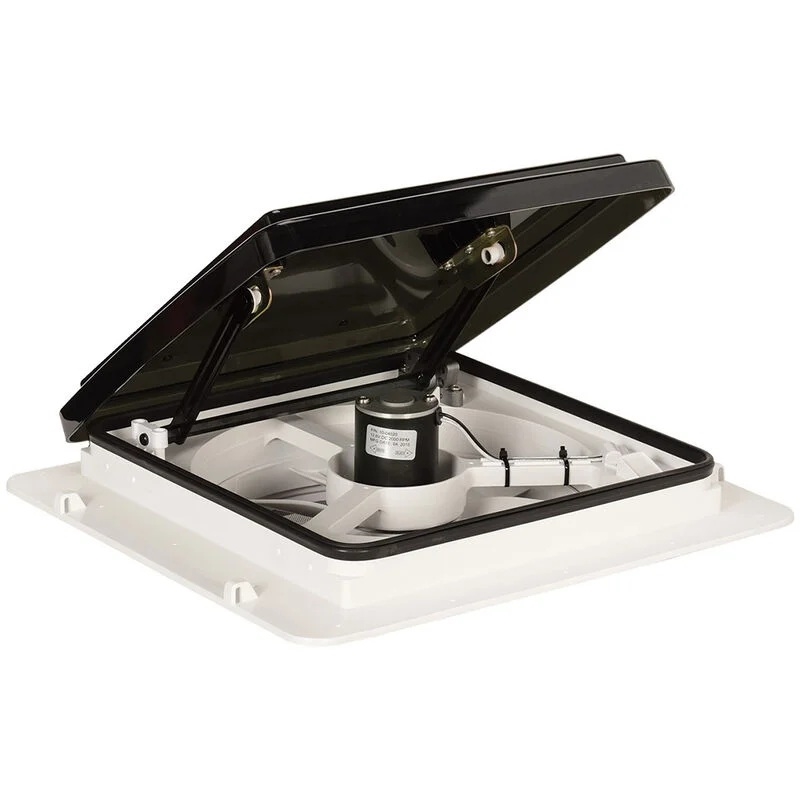

The Maxxair 00B04401K MaxxFan is a standard manual-lift RV roof vent fan designed for simple, reliable ventilation. This smoke-lid model uses a high-powered 4-speed exhaust fan to help pull warm, stale, humid, or odor-filled air out of the RV while fitting the common 14" x 14" roof vent opening used on many campers, trailers, and motorhomes.
This model keeps operation straightforward with ceiling-mounted controls and a manual opening knob. It is a good option for RV owners who want a powered exhaust roof vent with a tinted smoke lid, but do not need additional automatic features such as a remote control, powered lid, rain sensor, or reversible intake airflow.
Adjustable exhaust fan helps remove hot, stale, or humid air from the RV interior

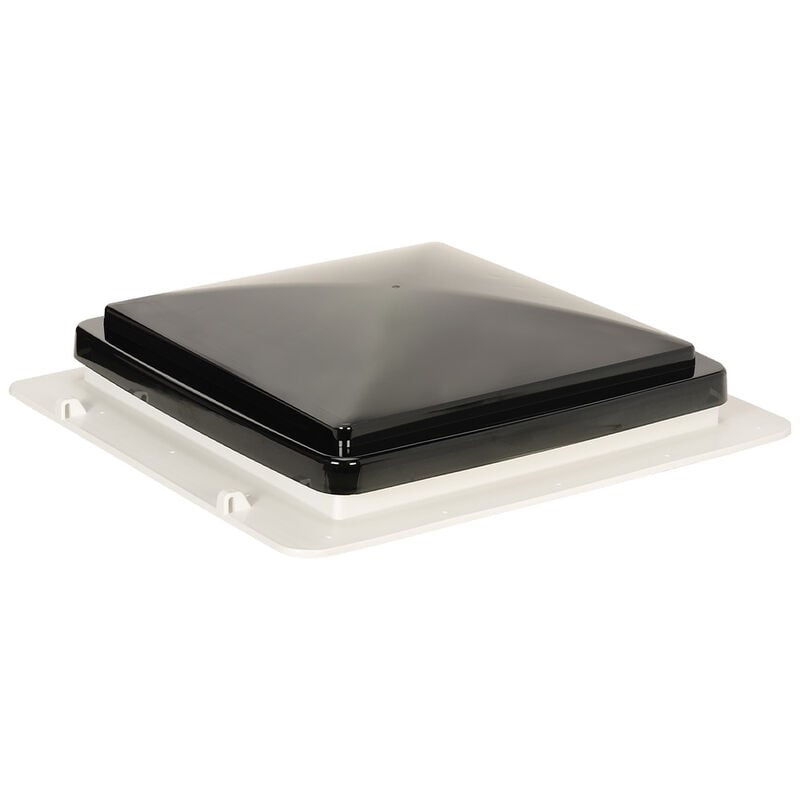

Tinted lid helps reduce glare while still allowing some natural light into the RV
Ceiling-mounted knob opens and closes the lid without powered lift components
Designed for the standard RV roof vent opening used on many RVs and trailers
This MaxxFan model is designed for a standard 14" x 14" RV roof vent opening. Before ordering, confirm your roof opening size, lid color preference, and that 12V DC power is available at the vent location. This is an exhaust-only model and does not provide reversible intake airflow.
The 00B04401K is the smoke-lid standard manual-lift MaxxFan model and is commonly associated with the earlier 00A04401K version. Current Part Number: • 00B04401K Legacy / Related Model Number: • 00A04401K Product Family: • Original MaxxFan / Standard MaxxFan Always verify the full part number and lid color before ordering, as Maxxair offers several similar-looking MaxxFan, MaxxFan Plus, MaxxFan Deluxe, and MaxxFan Pivot models.
In The Box: • Maxxair 00B04401K MaxxFan roof vent fan • Smoke manual-lift vent lid • 4-speed exhaust fan assembly • Ceiling-mounted manual controls • Removable interior insect screen • Mounting flange with FanMate tabs May Be Needed Separately: • Roof sealant and butyl tape • Compatible FanMate vent cover, if desired • Additional wiring or connectors if existing wiring is missing or damaged • Interior garnish, if replacing a missing or damaged trim ring Included components can vary by supplier packaging. Always inspect all parts before beginning installation.
Installation Overview: 1. Confirm Fit: Verify that the RV roof opening measures 14" x 14". 2. Disconnect Power: Turn off 12V power before removing or wiring the roof vent fan. 3. Remove Existing Vent: Remove the old roof vent and clean old sealant from the roof surface. 4. Apply Butyl Tape: Apply a continuous strip of butyl tape or equivalent under the mounting flange. 5. Mount the Fan: Center the MaxxFan in the roof opening and secure it using appropriate mounting hardware. 6. Connect Wiring: Connect the fan to a 12V DC power source using correct polarity. 7. Seal the Flange: Use roof-compatible sealant around the flange and fasteners to help prevent leaks. 8. Test Operation: Confirm lid operation and all 4 fan speeds before travel.
This Standard MaxxFan model is a good fit for RV owners who want a basic, reliable powered exhaust roof vent with smoke lid, manual lid operation, and no added automatic controls.
Before placing your order, verify that your RV has a standard 14" x 14" roof vent opening, suitable 12V DC power at the vent location, and that the smoke manual-lift exhaust-only configuration matches your needs. This model does not include intake/reversible airflow, thermostat control, remote control, rain sensor, or electric lid operation.
