Roadmaster Taillight Wiring Kit

Roadmaster Taillight Wiring Kit
Roadmaster Taillight Wiring Kit



: $52.24
MFG P/N: 155
MFG: Roadmaster
UPC #: 758306300071
Weight (lbs): 3
Shipping: Free Shipping on Orders $99 or More!

Quantity in Stock :10

Availability:
In Stock
Product Code: 94-9551
Qty:

DESCRIPTION Instructions

A self-contained wiring system that bypasses your towed car's turn signals, running lights and brake lights with a set of independent plugs and sockets mounted inside the taillights. Wiring is routed underneath the car, to a socket mounted to the grille or fascia. Since the towed vehicle's electrical system is bypassed, this kit eliminates the concern of voiding the vehicle manufacturer's warranty.
  • Kit allows you to use your vehicle's tail lights without tapping into its wiring.
  • Bypasses your vehicle's electrical system, eliminating concerns over violating the warranty.
  • Works with independent plugs and sockets mounted inside the tail lights.
  • Maintains manufacturer's warranty on towed vehicle by avoiding involvement with its electrical system.
  • Connects your RV's tail, brake and turn signal lights to your towed vehicle's lighting system.
  • Prevents electrical feedback and damage it can cause to your vehicle's electrical components.
  • Max amperage: 85 amps
  • Max voltage: 24 volts
  • Compatibility:
  • Weight: 2.5 lbs
  • Bulb measurements: 2-1/4"
    • Length of bulb from flange to top of bulb: 2"

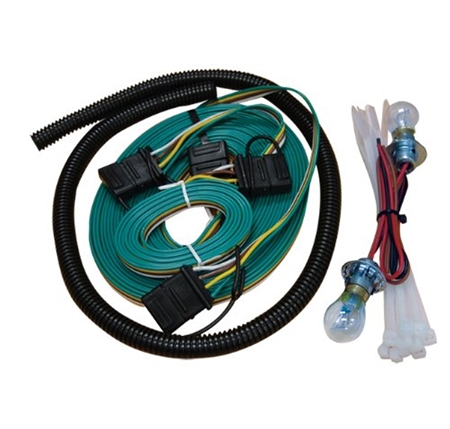

  • Included: (1) 30' 4-wire electrical harness, (1) 6' 4-wire electrical cord, (2) bulbs, (2) socket assemblies, (2) ring terminals, (3) yellow butt connectors, (3) blue butt connectors, (1) self-tapping screw, (13) wire ties, (1) 3' of 1/2" split loom, & installation instructions.
  • Limited 90 day warranty.
  • Note: The towed vehicle's taillights must have room for an extra socket and bulb inside the lens housing.
  • Made in the USA!

Roadmaster Taillight Wiring Kit

Additional Product Information

Note: The towed vehicle's taillights must have room for an extra socket and bulb inside the lens housing.
