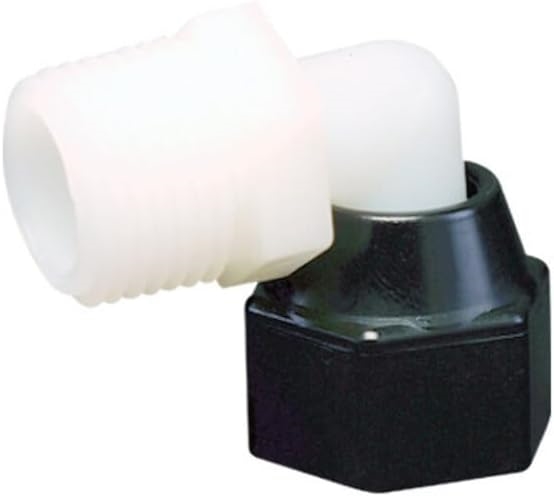

OEM SHURflo 90° elbow pump fitting with wingnut swivel. Connects to the 1/2" MPT port on any SHURflo demand pump and redirects the plumbing 90° when an in-line straight fitting won't fit the installation geometry. Hand-tighten only.
The SHURflo 244-3366 is the 90° elbow version of SHURflo's wingnut swivel pump fitting family — the same OEM fitting supplied with SHURflo demand pumps, but with a right-angle body instead of a straight-through configuration. Where the straight 244-2926 routes plumbing in-line with the pump port, the 244-3366 elbow turns the hose 90° immediately at the pump head — essential in tight installations where a straight fitting would direct the hose into a wall, the pump mounting surface, or another component before it can make its first bend.
The 1/2"-14 NPT female wingnut swivel inlet threads onto the pump's 1/2" MPT port, and the 1/2"-14 NPT male outlet accepts the plumbing connection or hose barb at the 90° turn. The wingnut swivel body rotates freely during tightening to prevent hose twist, and the knurled wingnut is designed for hand-tightening only — no tools needed or recommended. Nylon construction for fresh water use. Compatible with all SHURflo demand pumps with 1/2" MPT ports.
• 1x SHURflo 244-3366 90° Wingnut Swivel Elbow Fitting Hose clamp recommended (sold separately): A stainless steel hose clamp over any barb connection downstream is recommended to prevent pull-off under pump pressure.
All wingnut swivel style for SHURflo demand pumps with 1/2" MPT ports: Straight fittings: • 244-2916 — 1/2" FPT x 3/8" Barb, straight • 244-2926 — 1/2" FPT x 1/2" Barb, straight Elbow fittings (90°): • 244-3916 — 1/2" FPT x 3/8" Barb, elbow • 244-3366 — 1/2" FPT x 1/2" NPT (M), elbow (this item) Choose elbow (244-3366) when the hose needs to make a 90° turn directly at the pump port. Choose straight (244-2926) for in-line routing.
The wingnut swivel is designed for hand-tightening only. Using pliers or a wrench on the wingnut body can crack the nylon and cause leaks. This fitting is rated for fresh water applications only. Do not use with grey water, black water, or chemical systems.
