Replacement furnace core module for select Suburban SF-25 and SF-30 series RV furnaces. Slides into the existing furnace cabinet to refresh the internal furnace assembly without replacing the outer cabinet or ductwork.

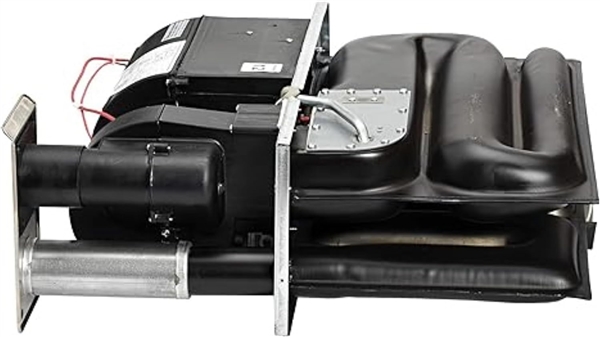

The Suburban 2607A RP-30Q is a replacement furnace core module designed for select Suburban RV furnace models. Instead of replacing the complete furnace cabinet, the old core module can be removed and the new core can slide into the existing furnace shell when the installation is compatible.
This can be a practical repair option when the existing furnace cabinet, ducting, and exterior installation are still usable, but the internal furnace module needs replacement. The RP-30Q core is designed for compatible Suburban SF-25, SF-25Q, SF-30, and SF-30Q style furnace applications.
Replaces the internal furnace core while reusing the existing cabinet when compatible
Designed for select Suburban SF-25 and SF-30 series furnace applications
Replacement core is listed with electronic ignition for compatible furnace systems
Designed to avoid removing the full cabinet and ductwork when the existing shell is usable
The 2607A RP-30Q is commonly used when repairing compatible Suburban SF-series RV furnaces where the cabinet and ducting can remain in place. It is intended for furnace-core replacement, not for a new complete furnace installation. Always verify the existing furnace model number before ordering. Suburban furnace cores are model-specific and should not be selected by BTU rating alone.
• One Suburban 2607A RP-30Q furnace core module • Furnace control board included with core module • Installation instructions/documentation as supplied by manufacturer
This is the internal furnace core/module only. It does not include the outer furnace cabinet, exterior access door, thermostat, ducting, interior vents/registers, or LP gas installation components. The existing furnace cabinet and ductwork must be compatible and in usable condition.
Product data for Suburban 2607A / RP-30Q commonly lists this as a 25,000 BTU core for select SF-25/SF-30 series furnaces, despite some titles describing it as RP-30 or 30,000 BTU. Confirm your existing furnace model number and the required replacement core before ordering. Furnace service involves LP gas, combustion, exhaust, 12V wiring, and airflow requirements. Installation should be handled by a qualified RV technician.
The Suburban 2607A RP-30Q is a furnace core replacement module for select Suburban SF-25/SF-30 series RV furnaces. It replaces the internal furnace module while reusing the existing compatible cabinet and ductwork.
