Surge Guard AECM20020 Electra Check Digital Power Monitor

Surge Guard AECM20020 Electra Check Digital Power Monitor
Surge Guard AECM20020 Electra Check Digital Power Monitor



Alternative Views:


: $63.33
MFG P/N: AECM20020
MFG: Surge Guard
UPC #: 852208000012
Weight (lbs): 1
Shipping: Free Shipping on Orders $99 or More!

Quantity in Stock       :28

Availability:
In Stock
Product Code: 19-0489
Qty:

Description Technical Instructions

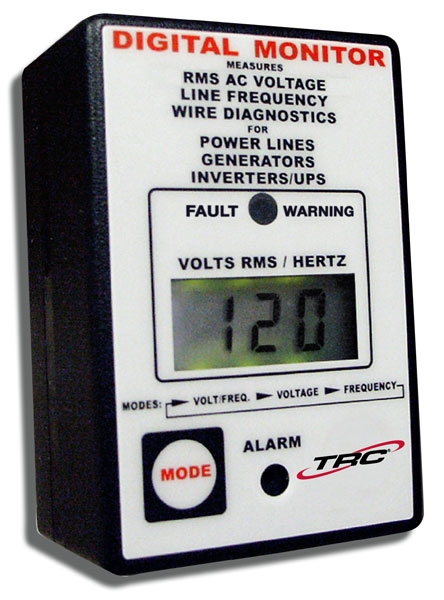

This compact, easy to use instrument is made with advanced microelectronics and provides accurate testing and monitoring of electrical outlets and systems. Constantly monitors voltage and frequency indicating potential improper polarity and ground wiring. Its small size and rugged construction allows for convenient installation in an electrical outlet or use as a portable service tool.
  • Accurate testing and monitoring of all AC power source types
  • RMS voltage and frequency meter
  • Multi-tone fault alarm
  • Hands-free auto reset
  • Advanced microelectronics
  • One-button operation
  • Wiring diagnostics
  • LCD display with LED back-light

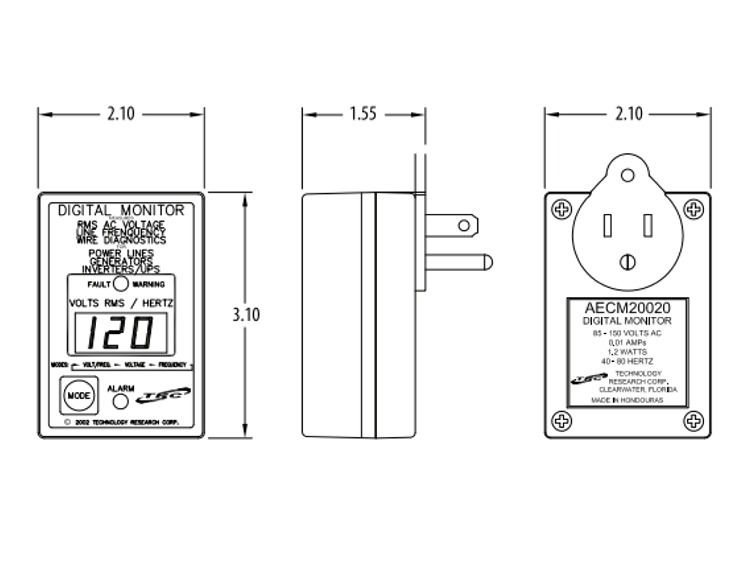

  • Dimensions: 3.1"L x 2.1"W x 1.55"H
  • 90 Day Limited MFG'er Warranty
Check out our Surge Protection Comparison Guide to help make your buying decision easier.

Surge Guard Electra Check Digital Power Monitor

Additional Product Information
Voltage is measured as RMS which is much more precise than just an AC average. RMS stand for Root-Mean-Square which is a method of measuring the average voltage value of alternating current. RMS metering is the only method that can accurately measure all AC power sources. The RMS voltage and frequency readings are ideal for monitoring modified sine waves such as solid-state generators, inverters and Uninterruptable Power Supplys.

The Digital Power Monitor display will alternate between line voltage in RMS volts and line frequency in Hertz. The LCD display shows an "F" in front of the reading to denote frequency. Pressing the MODE button on the front of the Digital Monitor will cycle through the display modes. Both voltage and frequency are constantly monitored regardless of the display mode.

The Digital Power Monitor display will alternate between line voltage in RMS volts and line frequency in Hertz. The LCD display shows an “F” in front of the reading to denote frequency. There are three display modes available:  Alternating Voltage and Frequency (VOLT/FREQ.)  Voltage only (VOLTAGE)  Frequency only (FREQUENCY) Pressing the MODE button on the front of the Digital Monitor will cycle through the display modes. Both voltage and frequency are constantly monitored regardless of the display mode. When the Digital Monitor detects a fault condition the fault LED comes on immediately upon fault threshold being exceeded. If the fault threshold is exceeded and sustained for three seconds it sounds an audible alert for 5 seconds and shows the cause for the fault on the display. The wiring faults are Open Ground (GF) and Polarity Fault (PF). The voltage faults are Low voltage (Lo) of 102 Vac or lower and High voltage (HI) of 135 Vac or higher. The frequency faults are Low Frequency (LF) of less than 55 Hz and High Frequency (HF) of over 65 Hz. Fault reset thresholds must be obtained to re-enable the fault alarms. When a wiring fault (GF) or (PF) is displayed, the MODE button may be used to sequence the display to show the current voltage or frequency by successive button actuation's.
