Vehicle-specific plug-and-play T-connector for select Kia Rondo and Kia Soul without LED tail lights. Plugs directly into the taillight assembly — no cutting, splicing, or soldering. Provides a standard 4-way flat output for trailer tail lights, brake lights, and turn signals. SMT circuitry, tail light converter included, rubber dust cover. Lifetime warranty.
The Curt 56222 is designed for the following vehicles without LED tail lights: Kia: • Rondo — 2007 to 2012 • Soul — 2010 to 2019 This harness is vehicle-specific — verify your make, model, year, and tail light type (non-LED) match before ordering. It will not fit other vehicles or Kia Soul / Rondo models equipped with LED tail lights.
This harness is designed for Kia Rondo and Soul models with standard (non-LED) tail lights only. If your vehicle is equipped with LED tail lights, a different harness is required. Check your vehicle's tail light type before ordering.
The Curt 56222 is a custom T-connector wiring harness that gives your Kia Rondo or Soul a standard 4-way flat trailer connector without touching a single wire. The harness uses OEM-compatible connectors to "T" into the vehicle's taillight assembly — unplug the existing taillight connectors, plug in the harness between them, and route the 4-way flat output to the rear of the vehicle. No cutting, no splicing, no soldering — just basic hand tools and the included instructions.
A built-in tail light converter handles the signal translation between the vehicle's separate brake and turn signal circuits and the standard combined trailer wiring format. SMT (surface mount technology) circuitry keeps the converter compact, generates less heat, and provides better long-term durability under towing vibration. A rubber dust cover protects the 4-way flat connector when no trailer is connected.
Plugs directly into the vehicle's existing taillight connectors — no cutting, splicing, or soldering at any point

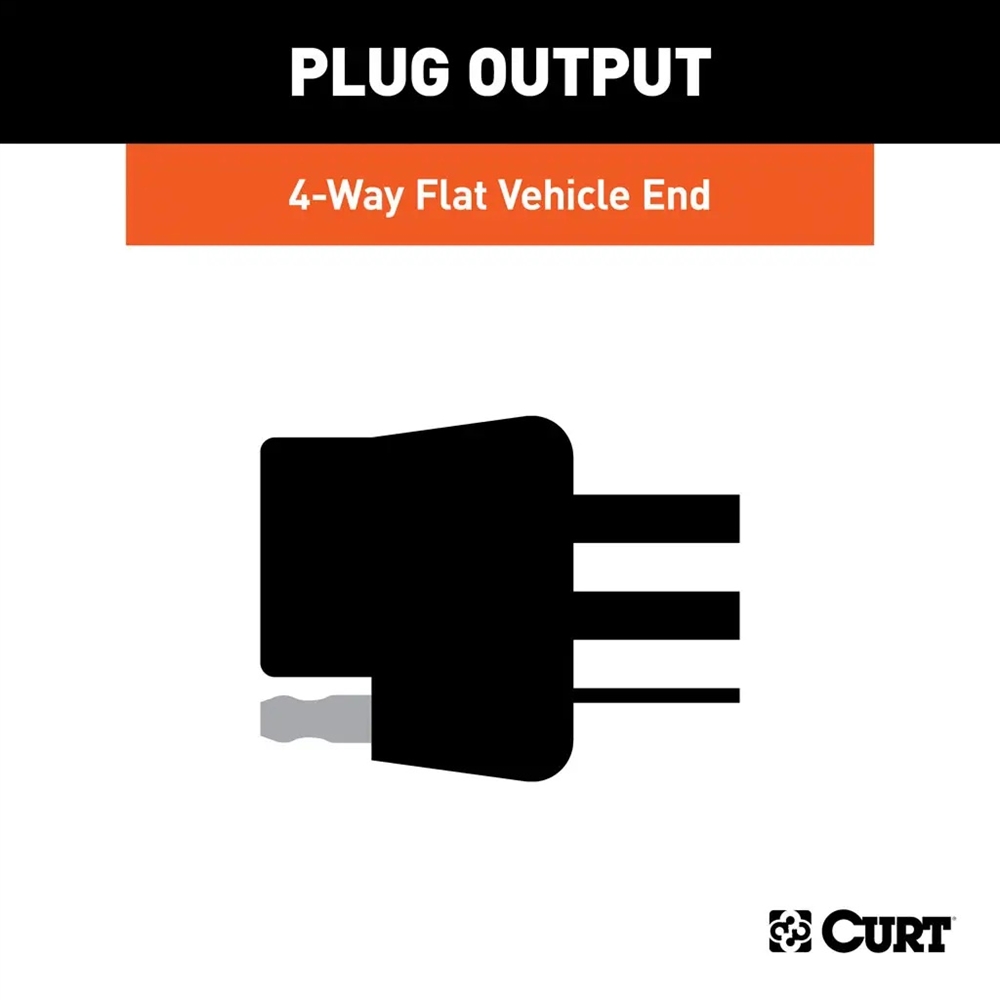

Provides a standard 4-way flat trailer connector for tail lights, brake lights, and turn signals
Surface mount technology converter — less heat, lower resistance, better vibration resistance, longer service life
Built-in converter translates the vehicle's separate brake/turn circuits to the combined trailer wiring format
Protects the 4-way flat connector from dirt and moisture when no trailer is connected
Durable construction designed to handle road splash and outdoor exposure at the rear of the vehicle
• (1) Curt 56222 T-connector wiring harness • Built-in tail light converter • Metal mounting bracket • Rubber dust cover • Installation instructions
1. Access the vehicle's taillight assembly 2. Unplug the existing OEM taillight connectors 3. Plug the T-connector harness in between — OEM connectors on one side, vehicle taillight connectors on the other 4. Route the 4-way flat output to the rear of the vehicle and secure with the included metal bracket 5. Install the dust cover when no trailer is connected No cutting, splicing, or soldering required. Basic hand tools only. Note: some reviewers note the cross-vehicle green wire has minimal slack — take care when routing.
Covered by Curt's lifetime limited warranty against defects in factory workmanship and materials.
