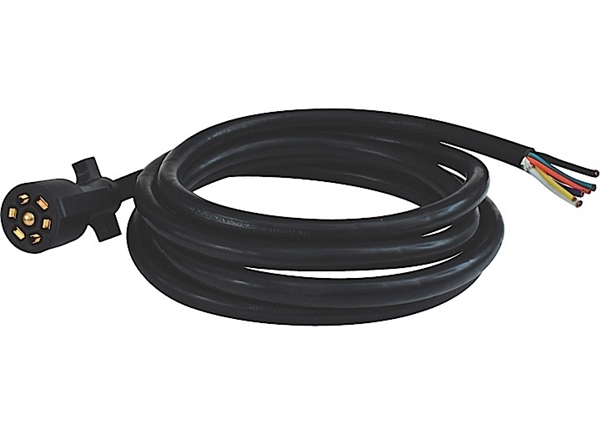

Stop fighting a cord that is too short or too stiff to reach your hitch receiver cleanly. The Valterra A10-7W10 gives you a full 10 feet of heavy-duty 7-way blade wiring between your tow vehicle and trailer, with molded connector ends built to handle the flex, weather, and road vibration that come with every tow.
The standard 7-way blade connector is the most common tow vehicle wiring standard on North American trucks, SUVs, and full-size vans sold since the early 2000s. If your truck has a factory trailer brake controller outlet or a factory hitch receiver, it almost certainly has a 7-way blade socket. The Valterra A10-7W10 plugs directly into that socket on one end and into your trailer's 7-way receptacle on the other -- no adapters needed for most setups.
At 10 feet, this cord gives you enough slack to handle longer truck beds, extended cab and crew cab configurations, and gooseneck or fifth-wheel setups where the distance from the cab-mounted socket to the trailer connector pin box is greater than the 6-foot cords that come bundled with many trailers. Extra length also means the cord is less likely to stretch taut during tight turns or backing maneuvers.
Carries all seven standard circuits: running lights, left turn/brake, right turn/brake, electric trailer brakes, 12V auxiliary power, reverse/backup lights, and chassis ground.
Extra length suits crew cab trucks, extended beds, and gooseneck pin box offsets where shorter cords pull tight during turns.
Overmolded connector housings resist moisture intrusion and protect the solder or crimp connections at both plug ends from vibration fatigue.
Fits the 7-way RV blade socket found on virtually all modern tow vehicles and travel trailers, fifth wheels, toy haulers, and horse trailers built to SAE J2863 / ASAE S366 standards.
Understanding the pin-out helps you troubleshoot fast when a circuit stops working on the road. The standard RV blade 7-way layout assigns each pin as follows:
Pin 2 carries the brake controller output signal. This cord supports single-axle and tandem-axle electric drum brake trailers with proportional or time-delayed brake controllers. Make sure your truck's brake controller is properly calibrated for your trailer's loaded weight -- the cord itself does not limit brake gain.
This cord is designed for the standard RV 7-way blade (also called "RV blade" or "7-pin flat blade") connector -- the large round connector with seven flat blade contacts. It is NOT compatible with the smaller 7-way round-pin connector used on some European and older horse trailer applications, nor with 4-flat, 5-flat, or 6-round connectors without an adapter.
Compatible tow vehicles include virtually all modern half-ton, three-quarter-ton, and one-ton pickup trucks from Ford (F-150, F-250, F-350), GM (Silverado, Sierra, Suburban), Ram (1500, 2500, 3500), and Toyota (Tundra, Sequoia) equipped from the factory with a trailer wiring harness. Also fits most Class 3 and Class 4 hitch receivers with a factory 7-way socket on SUVs such as the Chevrolet Tahoe, GMC Yukon, Ford Expedition, and Ram 1500.
Compatible trailers include:
Valterra produces a full line of trailer wiring accessories under their electrical category. The A10-7W10 is a 10-foot cord version within the 7-way blade cord family. Valterra also offers shorter 6-foot versions (A10-7W6) and coiled cord variants, as well as 7-way to 4-flat adapters and 7-way to 5-flat adapters for trailers with smaller connector standards. If your trailer has a 4-way flat connector and your truck has a 7-way socket, look for the Valterra A10-7W4 adapter instead.
Plug the truck-side connector into your tow vehicle's 7-way socket (usually mounted near the hitch receiver or on the rear bumper). Plug the trailer-side connector into your trailer's 7-way receptacle on the coupler, pin box, or A-frame. Route the cord so it has a drip loop below the connection points to keep water from running into the sockets. Secure excess cord length with a loop of rope or a hook so it does not drag on the ground or wrap around the hitch ball during turns.
The 7-way RV blade and the 7-way round-pin connector look superficially similar but are not interchangeable. Count the pins and check their shape -- flat blade contacts indicate the RV blade standard this cord is built for. Round pin contacts require a different cord. When in doubt, bring your existing connector to a trailer supply store and match it physically.
