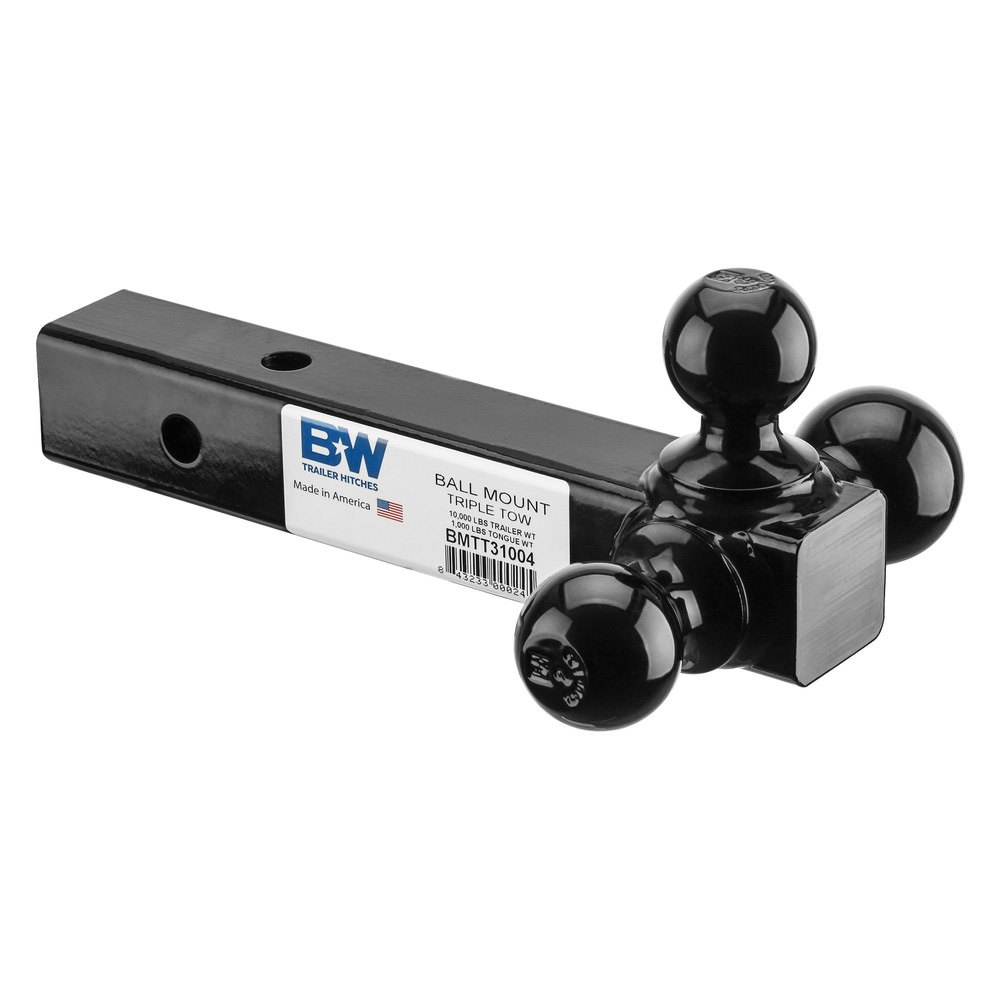

B&W Hitches BMTT31004 Triple Tow Ball Mount -- Three-Ball Setup for Class III/IV Receivers

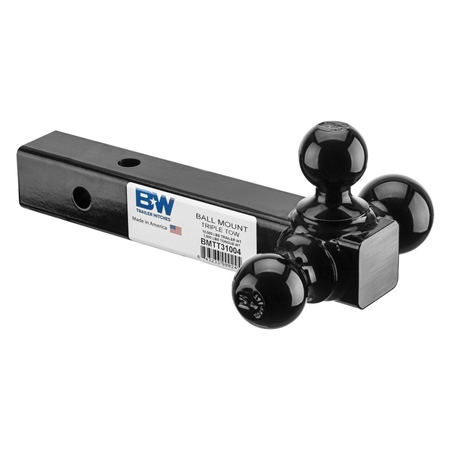

B&W Hitches BMTT31004 Triple Tow Ball Mount for 2-inch Class III and IV receivers, three-ball heavy-duty steel tow mount
B&W BMTT31004 Trailer Hitch Triple Tow Ball Mount

: $68.00
Part Number: BMTT31004
Manufacturer: B&W Hitches
UPC #: 843233000245

Quantity in Stock :97

Availability: In Stock
Qty:


B&W HitchesTriple Ball MountClass III / IV ReceiverB&W Hitches BMTT31004 Triple Tow Ball Mount -- Three Balls, One Insert, No More Swapping

If you tow more than one trailer -- a fifth-wheel adapter, a boat, a car trailer, a utility trailer -- you already know the hassle of digging through the truck bed for the right hitch ball every time you hitch up. The B&W BMTT31004 Triple Tow Ball Mount puts three pre-mounted tow balls on a single heavy-duty steel shank. Pull into camp, flip to the right ball, pin it, and go. Built to B&W's commercial-grade standards with the kind of fit and finish RV towers and gooseneck haulers expect from this brand.

Three Tow Configurations. One Receiver Insert.

The BMTT31004 is part of B&W's Tow & Stow / Triple Ball lineup -- a category B&W developed specifically for towers who regularly switch between trailers of different sizes. Instead of carrying a bag of loose hitch balls or a multi-step adjustable mount, you get three fixed balls permanently positioned on a rotating or multi-position head, all on a single 2-inch receiver shank.

At 18.55 lbs, this is a substantial, all-steel unit -- not a lightweight import casting. The weight reflects the solid steel ball mount body and the three installed hitch balls, which are forged steel just like you'd buy separately. The overall envelope of 12.0 x 7.83 x 4.75 inches keeps it compact enough to store in a truck bed toolbox when not in use.

Three Balls Installed

Typically covers 1-7/8 inch, 2 inch, and 2-5/16 inch ball sizes -- the three most common trailer coupler sizes in RV and trailer towing. No loose balls to lose.

2-Inch Receiver Shank

Fits standard 2-inch Class III and Class IV trailer hitches found on most full-size trucks, SUVs, and tow vehicles used with RV trailers.

Heavy-Duty Steel Construction

Forged and machined steel body and ball assemblies. Finished with a durable powder coat or black oxide -- built to B&W's working-truck standards, not recreational-only spec.

Fast Configuration Changes

Rotate or reposition to the correct ball for your trailer coupler without removing the entire mount from the receiver. Cuts hitch-up time significantly at a busy campground or job site.

Who This Is Built For

The BMTT31004 is the right choice if you regularly tow two or more different trailers -- for example, a 2-5/16 inch gooseneck-style RV trailer plus a 2-inch utility trailer plus a 1-7/8 inch single-axle boat trailer. It's also popular with RV owners who tow a car dolly behind a motorhome (using a tow bar receiver adapter) and need a secondary tow ball on the flat-tow vehicle.

Campground hosts, RV park operators, and mobile RV service techs who move multiple trailers around a property find the triple-ball format especially practical -- no toolbox full of loose balls and wrenches required.

B&W Quality Standard: B&W Hitches is an American manufacturer based in Humboldt, Kansas. Their tow products are manufactured to commercial agricultural and oilfield towing standards -- the same factory that builds their turnoverball gooseneck hitches and fifth-wheel rails. The BMTT31004 is not a harbor-freight-tier import; it is a working tool built for repeated daily use under load.

Fitment and Receiver Compatibility

This mount installs into any standard 2-inch (Class III or Class IV) receiver hitch tube. It secures with a standard hitch pin and clip or a receiver lock (sold separately). It does NOT fit 1-1/4 inch (Class I/II) receivers or 2-1/2 inch (Class V) receivers without an adapter.

  • Fits 2-inch Class III receiver hitches (most common on half-ton and three-quarter-ton trucks)
  • Fits 2-inch Class IV receiver hitches (common on heavy-duty trucks and SUVs)
  • Does NOT fit 1-1/4 inch Class I or Class II receivers
  • Does NOT fit 2-1/2 inch Class V receiver without a separate reducer sleeve
  • Compatible with standard hitch pin (5/8 inch pin hole typical -- confirm your receiver pin size)
Drop Weight / Rise: The BMTT31004 is configured at a specific drop and rise measurement to accommodate the three-ball layout. Check the ball heights relative to your coupler height before towing. Proper ball-to-coupler height alignment is critical for level towing and trailer brake performance.

What Is Included

  • One B&W BMTT31004 Triple Tow Ball Mount (complete assembly)
  • Three tow balls pre-installed (1-7/8 inch, 2 inch, 2-5/16 inch typical configuration)
  • Hitch pin and clip may or may not be included -- confirm at time of purchase and have a 5/8 inch hitch pin on hand
Hitch Pin Not Confirmed Included: B&W packages vary. Have a 5/8 inch hitch pin and clip available at installation. For added security, a receiver lock rated for your ball mount's shank diameter is strongly recommended, especially when the mount is stored in the receiver unloaded.

Storage and Handling

At 18.55 lbs and 12.0 x 7.83 x 4.75 inches, the BMTT31004 stores easily in a truck bed toolbox, a basement compartment on a Class A motorhome, or a cargo area. The three installed balls do create some awkward contact points -- a foam sleeve or old towel wrapped around the assembly protects truck bed liners and nearby gear.

Maintenance Tips: Wipe tow ball surfaces with a dry cloth before coupling. Do not grease the ball excessively -- excess grease attracts dirt and can contaminate trailer brake components on electric-brake trailers. Inspect the mount shank and ball threads annually for corrosion, particularly if the mount is stored in the receiver year-round in wet climates. B&W's powder coat finish is durable but not impervious to road salt.

Physical Specifications

Length12.0 inches
Width7.83 inches
Height4.75 inches
Weight (assembled)18.55 lbs
UPC843233000245

Receiver and Hitch Compatibility

Receiver Size2-inch standard
Hitch ClassClass III, Class IV
Shank Size2-inch (fits 2-inch receiver tube)
Hitch Pin Hole5/8 inch (standard)

Tow Ball Configuration

Number of Balls3 (pre-installed)
Ball Sizes (typical)1-7/8 inch, 2 inch, 2-5/16 inch
Ball MaterialForged steel
Mount MaterialHeavy-duty steel, powder coat finish

Manufacturer Information

ManufacturerB&W Hitches
Part NumberBMTT31004
Country of ManufactureUSA (B&W -- Humboldt, KS)
Product LineTriple Tow Ball Mount Series

Common Towing Applications

Travel Trailers2-5/16 inch or 2 inch coupler (most common)
Boat Trailers1-7/8 inch or 2 inch coupler
Utility Trailers1-7/8 inch or 2 inch coupler
Car Dollies2 inch coupler (typical)
Pop-Up Campers1-7/8 inch or 2 inch coupler
Important Information -- Read Before Installing or Towing
  • Always verify your trailer coupler size matches the tow ball you are using before towing. Mismatched ball-to-coupler sizes are a leading cause of trailer separation accidents.
  • This mount fits 2-inch Class III and Class IV receivers ONLY. Do not attempt to use in a 1-1/4 inch or 2-1/2 inch receiver without a proper rated adapter.
  • Never exceed the gross trailer weight (GTW) or tongue weight rating of your vehicle's hitch, your tow vehicle's towing capacity, OR the rating of this ball mount -- the lowest of all three ratings governs your safe tow limit.
  • Confirm the hitch pin is fully inserted and secured with a clip or lock before every tow. Check again after the first mile of travel.
  • Ball-to-coupler height alignment must place the trailer coupler within the manufacturer's recommended range (typically level or within 3 inches of level) for safe towing. An improperly leveled trailer can cause sway, handling instability, and premature component wear.
  • This product is heavy (18.55 lbs). Use proper lifting technique and secure storage to prevent injury or damage.
