B&W Hitches RVC3200 Patriot Coupler - 5th Wheel to Gooseneck Conversion - 49.4 lbs

B&W Hitches RVC3200 Patriot Coupler 5th wheel to gooseneck conversion unit, 49.4 lbs, 25 x 16.25 x 7.5 inches

: $375.00
Part Number: RVC3200
Manufacturer: B&W Hitches

Quantity in Stock :294

Free Shipping
Availability: In Stock
Qty:


B&W Hitches 5th Wheel to Gooseneck Part RVC3200 B&W Patriot Coupler -- Tow Your 5th Wheel with a Gooseneck Ball

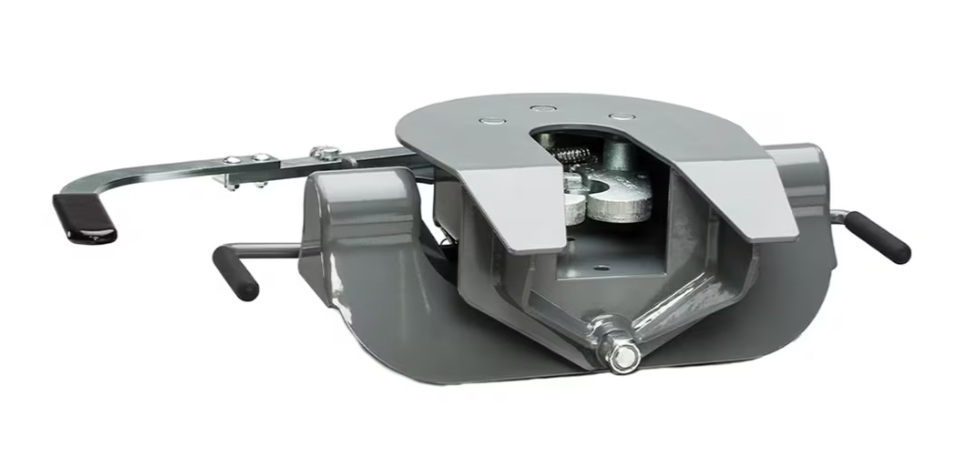

The B&W Hitches RVC3200 Patriot Coupler is the solution for truck owners who already run a gooseneck hitch and don't want to install a separate 5th wheel slider. Attach the Patriot to the king pin of your 5th wheel trailer and you're ready to tow with a standard 2-5/16 inch gooseneck ball -- no bed rails, no plate, no dedicated 5th wheel hitch occupying your truck bed.

One Coupler, Two Towing Worlds

Many truck owners find themselves in a frustrating position: they have a quality gooseneck hitch installed for work or other trailers, but they want to tow a 5th wheel RV or equipment trailer on weekends. Installing a full 5th wheel hitch on top of a gooseneck setup means drilling, re-wiring, and consuming your entire truck bed. The B&W Patriot Coupler solves this cleanly -- it installs on the trailer side, connects to your existing gooseneck ball, and delivers the solid, low-profile tow you need without touching your truck setup.

B&W Hitches is an American manufacturer based in Humboldt, Kansas, known for precision-machined towing products. The Patriot Coupler fits into the B&W "Turnoverball" and "Companion" ecosystem, designed to give gooseneck hitch owners a path to 5th wheel compatibility without compromise.

Gooseneck Ball Compatible

Designed to couple directly to a standard 2-5/16 inch gooseneck ball -- works with B&W Turnoverball and other quality gooseneck hitches.

King Pin Connection

Attaches to the standard 2 inch king pin on your 5th wheel trailer -- no trailer-side modifications required on most units.

American-Made Precision

Manufactured by B&W Hitches in Humboldt, Kansas using heavy-gauge steel construction and a durable powder coat finish.

No Truck Bed Hardware

Eliminates the need for bed rails, mounting plates, or a dedicated 5th wheel hitch -- your truck bed stays clear for gooseneck loads.

How the Patriot Coupler Works

The RVC3200 mounts to the king pin box of your 5th wheel trailer in place of -- or alongside -- your standard 5th wheel pin connection. When you're ready to tow, you back under the trailer and the Patriot's coupler jaw latches onto the gooseneck ball just like a conventional gooseneck trailer coupler would. The geometry is engineered to maintain correct towing angles and weight distribution consistent with 5th wheel towing dynamics.

This approach means the coupler travels with the trailer, not the truck. If you tow with multiple trucks -- some equipped with 5th wheel hitches and some with gooseneck setups -- the Patriot Coupler makes the trailer compatible with either without modifying any truck.

Truck Bed Stays Clear -- Because all hardware mounts to the trailer, your truck bed remains fully usable for gooseneck loads, flatbeds, or other trailers. Switch between towing modes without removing anything from your truck.

Fitment and Compatibility

The RVC3200 Patriot Coupler is designed to fit trailers equipped with a standard 2 inch king pin -- the most common king pin size on North American 5th wheel RVs and equipment trailers. Before purchasing, verify your trailer's king pin size (2 inch is nearly universal, but some heavy commercial applications use larger pins).

  • Compatible with standard 2 inch king pin 5th wheel trailers
  • Couples to standard 2-5/16 inch gooseneck ball
  • Works with B&W Turnoverball gooseneck hitches (all current bed sizes)
  • Compatible with other quality gooseneck hitches using 2-5/16 inch ball
  • Suitable for RV 5th wheel trailers, horse trailers, equipment trailers with 5th wheel king pin
Part of the B&W Gooseneck Ecosystem -- B&W's Turnoverball gooseneck hitch is one of the most popular under-bed gooseneck systems in North America. The Patriot Coupler is engineered as a companion product to that system, making the combination a seamless pairing for dual-use truck owners.

Installation Overview

The Patriot Coupler installs on the trailer's king pin box. Installation is a one-time setup on the trailer side. Once installed, hitching and unhitching is a routine gooseneck ball-and-coupler operation -- familiar to any driver who has towed a gooseneck trailer.

  • No truck-side modifications needed beyond your existing gooseneck hitch
  • Hardware mounts at the trailer's king pin box location
  • Unit ships fully assembled at 49.4 lbs -- two-person lift recommended for installation
  • Powder coat finish -- touch up any chips promptly to prevent rust at connection points
Maintenance Tips -- Inspect the coupler jaw and latch mechanism before each tow. Apply a light grease to the ball contact surface and the jaw pivot points seasonally or every 5,000 towing miles. Check all mounting hardware for torque at the start of each towing season.
Weight Rating -- Verify Before You Tow -- Confirm the Patriot Coupler's rated gross trailer weight (GTW) and king pin weight capacity against your trailer's actual loaded weights. Do not exceed the coupler's rated capacity or your gooseneck hitch's rated capacity, whichever is lower.

Product Dimensions and Weight

Part NumberRVC3200
UPC843233002041
ManufacturerB&W Hitches
Product NamePatriot Coupler
Length25.0 in
Width16.25 in
Height7.5 in
Shipping Weight49.4 lbs

Coupler Specifications

Coupler Type5th Wheel King Pin to Gooseneck Ball
King Pin SizeStandard 2 inch
Ball Size Compatibility2-5/16 inch gooseneck ball
FinishPowder coat
ConstructionHeavy-gauge steel
OriginMade in USA

Compatibility Reference

Trailer Types5th wheel RV, horse trailer, equipment trailer with standard 2 in king pin
Gooseneck Hitch CompatibilityB&W Turnoverball and other 2-5/16 in ball gooseneck hitches
Truck Bed Modification RequiredNone (installs on trailer)

In the Box

IncludedPatriot Coupler assembly (RVC3200)
Not IncludedGooseneck hitch (truck-side), installation fasteners may vary -- verify with B&W instructions

Brand Information

ManufacturerB&W Trailer Hitches
HeadquartersHumboldt, Kansas, USA
Product LinePatriot Coupler Series
Related B&W ProductsTurnoverball Gooseneck Hitch, Companion 5th Wheel Hitch
Important Information -- Read Before Purchase and Installation
  • Verify your trailer has a standard 2 inch king pin before ordering -- oversized commercial king pins are not compatible.
  • The Patriot Coupler must be used with a properly rated 2-5/16 inch gooseneck ball and a gooseneck hitch rated for your trailer's gross trailer weight and king pin weight.
  • Never exceed the lower of the coupler's rated capacity, the gooseneck hitch's rated capacity, or your truck's towing and payload ratings.
  • Inspect all hardware and the coupler latch before every trip -- do not tow with a damaged, cracked, or improperly latched coupler.
  • At 49.4 lbs, use a second person or lifting assistance during installation to avoid injury.
  • This product is not intended for use as a conventional bumper-pull or pintle hitch coupler -- it is designed specifically for the 5th wheel king pin to gooseneck ball application only.
  • Check local and state towing regulations for any requirements related to safety chains, breakaway cables, and trailer brakes when towing via gooseneck conversion.
