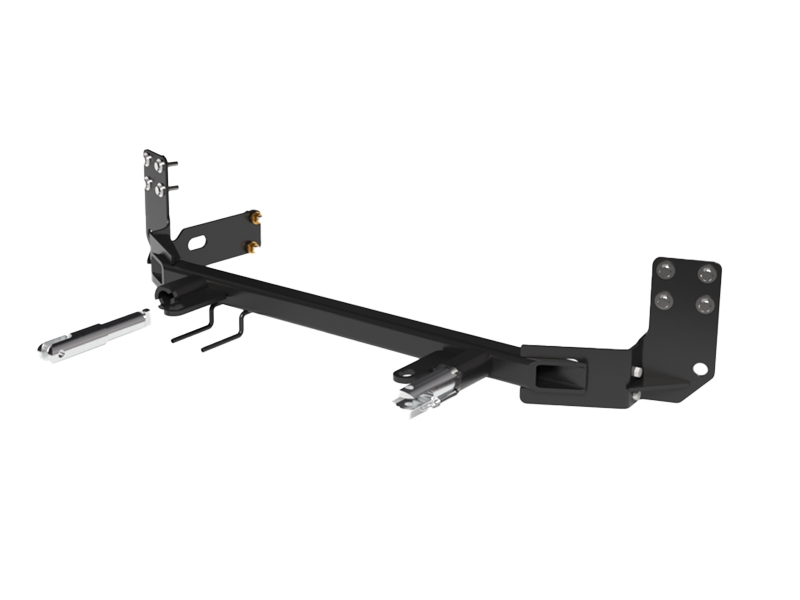

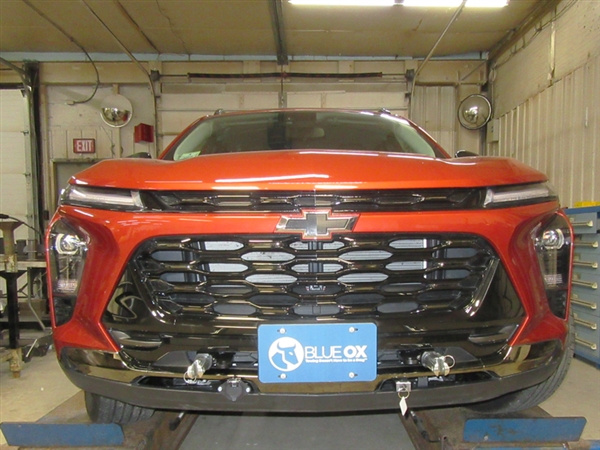

Set up a compatible 2024-2026 Chevrolet Trax ACTIV for flat towing with this Blue Ox BX1765 baseplate. The vehicle-specific design provides attachment points for a compatible Blue Ox tow bar and includes removable tabs for a cleaner look when not towing.
The Blue Ox BX1765 baseplate is designed for 2024-2026 Chevrolet Trax ACTIV models with no lower shutters or engine block heater. It is compatible with listed applications that include Adaptive Cruise Control and Turbo.
This baseplate provides the frame-mounted connection points needed to attach a compatible Blue Ox tow bar for dinghy towing behind a motorhome. The removable attachment tabs twist and lock into place for towing, then remove when not in use.
Designed for 2024-2026 Chevy Trax ACTIV models without lower shutters
Provides attachment points for compatible Blue Ox tow bars
Tabs twist and lock for towing, then remove when not in use
Custom-fit baseplate bolts to the vehicle chassis for flat towing use
Fits 2024-2026 Chevrolet Trax ACTIV models with no lower shutters or engine block heater. Includes applications with Adaptive Cruise Control and Turbo. Confirm vehicle year, trim, lower shutter equipment, engine block heater equipment, tow bar compatibility, and flat towing requirements before ordering.
1. Confirm Vehicle: Verify the Trax year, ACTIV trim, lower shutter equipment, engine block heater equipment, and towability before installation. 2. Review Instructions: Read the Blue Ox installation instructions completely before beginning the baseplate installation. 3. Prepare Front End: Remove or loosen required front-end components, including fascia-related hardware, as directed by the installation instructions. 4. Install Baseplate: Position the baseplate between the frame and bumper, install supplied hardware, and torque all fasteners to Blue Ox specifications. 5. Final Check: Confirm tow bar tab width compatibility, reinstall removed components, and test the complete flat towing setup before travel.
Blue Ox BX1765 baseplate Removable attachment tabs Installation hardware
Blue Ox Customer Care: Phone: 800-228-9289 Phone: 402-385-3051 Website: blueox.com For fitment help, confirm the Chevrolet Trax year, ACTIV trim, lower shutter equipment, engine block heater equipment, tow bar model, and flat towing requirements before ordering.
