Coleman-Mach RV-C NetZone Gateway – 9430-5501
Coleman-Mach RV-C NetZone Gateway 9430-550

List Price: $133.89
: $98.49
You save $35.40!
Part Number: Coleman
Manufacturer: Coleman Mach

Quantity in Stock :24

Availability: In Stock
Qty:

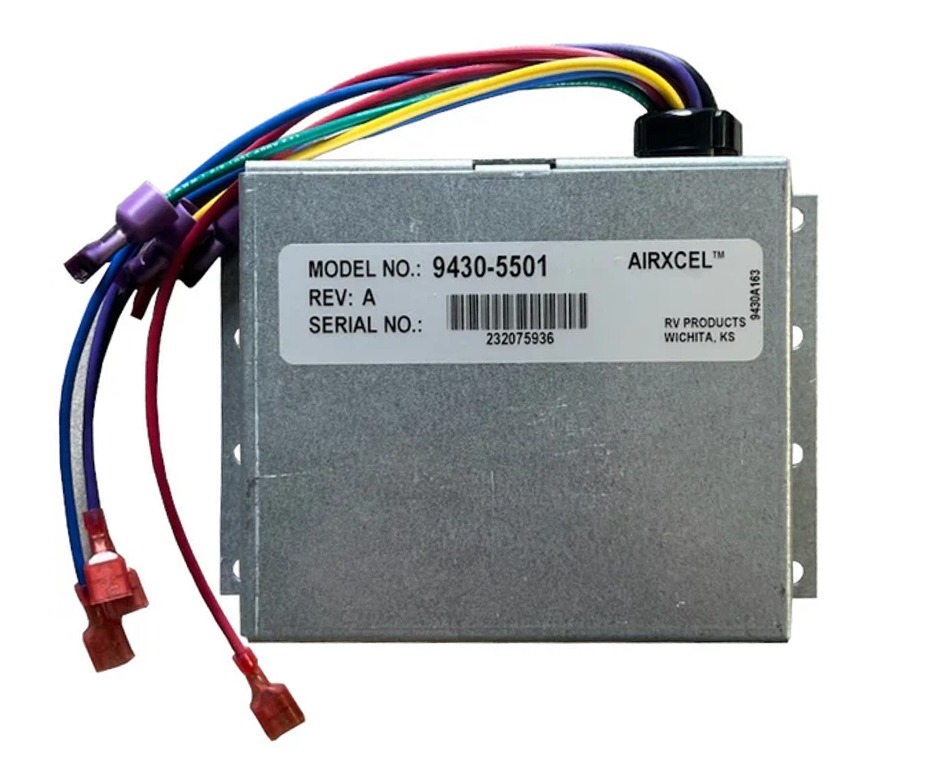

Coleman-Mach RV-C NetZone Gateway - 9430-5501

The Coleman-Mach RV-C NetZone Gateway (9430-5501) bridges your Coleman-Mach HVAC system to an RV-C (iN•Command) network. Pair it with the correct 2-wire zone control box(es) to enable centralized control of your Coleman-Mach air conditioners and heat pumps—directly from your RV’s iN•Command display or compatible controller. Ideal for single- or multi-zone setups.

  • RV-C Integration: Translates Coleman-Mach zone bus to RV-C so iN•Command can control climate functions.
  • Multi-Zone Ready: Works with one or more 2-wire Coleman-Mach zone control boxes (one per AC/heat-pump unit).
  • Heat-Pump Compatible: When paired with heat-pump-capable control boxes (e.g., 9530A751) and heat-pump units (e.g., 48004-666).
  • Clean Install: Compact module with simple harnessing; mounts near control box or service area.
  • Service Friendly: LED/status feedback (model-dependent) and standard connectors for quick diagnostics.
What’s Included
  • RV-C NetZone Gateway module – P/N 9430-5501
  • Interface harness (model-typical)
  • Quick start / installation documentation
  • Mounting hardware (if provided by revision)
Note: In some shipments, mounting screws are reused from the cabinet; verify contents on arrival.
Key Specs
  • Part Number: 9430-5501
  • Interface: Coleman-Mach 2-wire zone bus <→> RV-C (CAN-based)
  • Zones Supported: Works with single or multiple zones (add one zone control box per rooftop unit)
  • Power: Powered via control network (low-voltage, draws minimal current)
  • Use Case: Enables iN•Command (RV-C) to command A/C, fan speeds, heat pump, and (when present) furnace calls through the Mach zone control system
  • Mounting: Interior mounting near zone control box / service bay
  • Environment: Interior-only (dry location)
  • Compatibility: Coleman-Mach rooftop A/C and heat-pump units using 2-wire zone control boxes (e.g., 9530A751 for heat-pump applications)
Wiring & Compatibility Notes
  • Requires 2-wire zone control box(es): One control box per HVAC unit/zone. For heat-pump models like 48004-666, use a heat-pump-compatible box (e.g., 9530A751).
  • RV-C Backbone: Connect the gateway to the coach’s RV-C (iN•Command) network. Ensure proper termination on the RV-C bus.
  • T-Stat Replacement: Traditional wall thermostats are not used when the system is controlled by iN•Command via RV-C.
  • Furnace Calls: If a propane furnace is present, the call is routed through the Mach zone control box to the furnace board (verify furnace wiring at the zone box).
  • Firmware/Config: After wiring, discover/configure zones in the iN•Command interface; set equipment type (A/C or heat-pump) per zone.
Fit / Applications
  • RVs with an RV-C/iN•Command network seeking integrated climate control.
  • Coleman-Mach single- or multi-zone systems using 2-wire zone control architecture.
  • Compatible with Mach A/Cs and Mach heat-pump models (use heat-pump-capable control box).
Why Choose This Gateway

It’s the cleanest path to make your Coleman-Mach climate system “talk” to iN•Command. No wall thermostat clutter, unified screen/app control, and full support for multi-zone/heat-pump configurations when paired with the right zone hardware.

Common Questions
Do I need one gateway per air conditioner?
No. You need one RV-C NetZone Gateway for the coach, plus one 2-wire zone control box per rooftop unit/zone.
Will this work with my 48004-666 heat-pump?
Yes—use a heat-pump-compatible zone control box (e.g., 9530A751). The gateway then exposes control to iN•Command.
Can I still use my old wall thermostat?
No. In an RV-C/iN•Command setup, the iN•Command display/app becomes the thermostat interface.
Does it control the furnace too?
Yes, if the furnace is wired through the Coleman-Mach zone control box, iN•Command can call for heat via RV-C.
