When your Norcold refrigerator stops cooling on AC or gas, the control board is the first thing to suspect. Dinosaur Electronics builds this direct-fit replacement with upgraded protection features the original board lacked -- including an onboard circuit breaker, a short circuit indicator light, and fused 120V AC heater circuits -- so your next board lasts longer than the one it replaces.

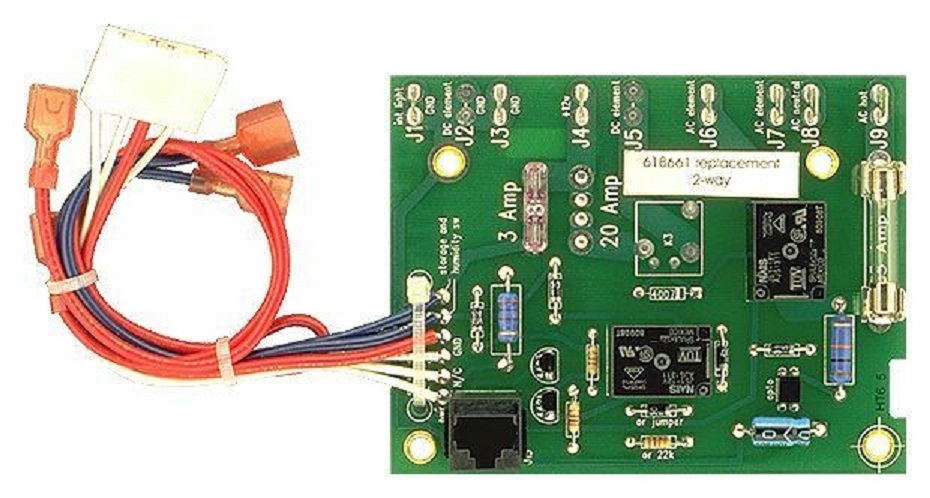

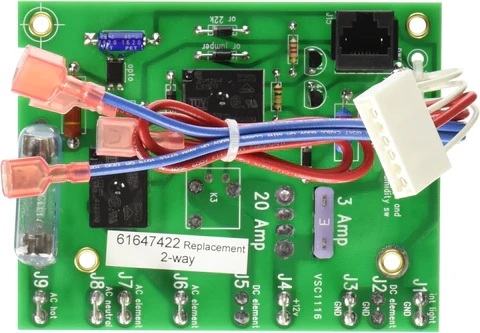

The Dinosaur Electronics 39-0488 is a drop-in replacement for the Norcold 618661 control board and also directly replaces the older 61647422 board. It is designed for 2-way (AC/Gas) Norcold refrigerators and handles all the core functions of the OEM board while adding meaningful electrical protection that prevents the cascading failures that destroy original boards.
Dinosaur Electronics has been producing aftermarket RV refrigerator control boards since the 1990s and is one of the most trusted names in this category among RV technicians and full-timers. This board ships ready to install with no modifications required for the compatible model list below.
A resettable circuit breaker protects the 12V DC circuits from short circuit damage -- no fuse to hunt down and replace in the field.
A dedicated indicator light reveals shorts in the wiring to the main switch or interior light, cutting diagnostic time significantly.
A heavy-duty diode trips the onboard breaker if 12V DC leads are connected backwards, protecting the board during installation.
Fuses on the 120V AC circuits protect heater wires and the heating element from short circuit damage on the AC side.
This board is rated for the following Norcold 2-way (AC/Gas) refrigerator models:
Norcold OEM boards in this series are known to fail due to 12V wiring shorts (from chafed interior light or switch wires) and from reversed polarity during battery work or shore power switching. The original boards have no protection against either scenario. Dinosaur's design adds the circuit breaker and reverse-polarity diode specifically to address these failure modes.
The fused 120V AC circuits add a second layer of protection: if the AC heating element or heater wire develops a fault, the fuse opens before the board traces are damaged. On an OEM board, the same fault destroys the board entirely.
