4-spray premium shower column with rain-style overhead head, 2 pivoting body jets, and handheld wand on a 60" hose. 3-bracket wall mount. Corrosion-resistant, water-saving design. Lead-free. Limited lifetime warranty.

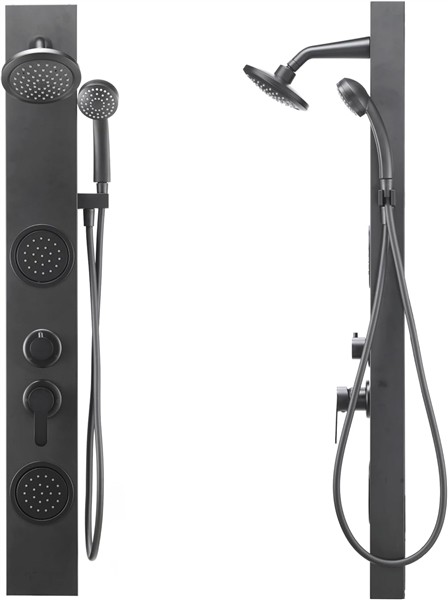

The Dura Faucet DF-SA914-MB Premium RV Shower Panel Column is Dura Faucet's top-tier shower upgrade — a full multi-function shower system that replaces a single fixed showerhead with four distinct spray outputs in a single sleek column. It brings a residential spa-style shower experience to the compact, pressure-variable world of RV plumbing without requiring any specialized valves, rough-in work, or professional installation.
The column mounts flat to any shower wall with three included brackets and connects to your existing RV hot and cold supply lines — everything you need for installation comes in the box. The rain-style overhead shower delivers a wide, gentle coverage across the shoulders and head, while the two independently pivoting body jets can be aimed at back, mid-torso, or lower body for targeted relief after a long day on the road. The handheld wand on its generous 60-inch hose provides complete reach for rinsing every corner of the shower, washing hair, bathing pets or children, and cleaning the shower enclosure itself. The fingerprint- and water spot-resistant matte black finish keeps the column looking sharp use after use.
Wide-coverage overhead showerhead delivers a broad, even spray for an immersive, full-body shower experience
Independently aimed body sprayers target back, shoulders, or torso — customizable to any height or preference
Extra-long 60-inch hose gives full-range reach for rinsing, hair washing, pet bathing, and shower cleaning
Engineered for RV plumbing pressure ranges — delivers a luxurious shower feel while conserving water for off-grid or limited tank situations
The DF-SA914-MB features four independent water outlets routed through the column's internal diverter — each serving a distinct showering purpose: 1. Rain-Style Overhead Shower Head — Mounted at the top of the column, this wide-face shower head delivers a broad, even coverage spray across the full head and shoulders. The rain-style pattern feels gentle and immersive rather than focused and concentrated. 2. Pivoting Body Jet #1 — Mid-column adjustable sprayer aimed at mid-to-upper torso. Rotate to your preferred angle and it stays in place during use. 3. Pivoting Body Jet #2 — Second adjustable sprayer below the first, targeting lower torso, lower back, or hips. Together with the first, they provide full mid-body coverage. 4. Handheld Shower Wand (60" hose) — Detachable handheld wand on a 60-inch flexible hose. Lifts off a holder bracket on the column for unrestricted hand-held use, then returns to the bracket when not needed. The longest hose in the Dura Faucet shower line — 60 inches provides reach to every part of the body and every corner of the shower stall.
Measure your shower wall height before ordering. The full column with overhead head and body jets at functional heights requires adequate vertical wall clearance — confirm your RV shower stall wall can accommodate the column's full mounting span. Hot and cold supply lines: This shower panel connects to both a hot and cold supply line. Verify that your existing shower plumbing has separate hot and cold connections accessible at the wall. If your RV shower currently uses a single mixed-supply line (common in older setups), you may need a diverter valve upstream. RV water pressure: Running all four outputs simultaneously draws more flow than a single showerhead. At low-pressure campsites or on tank water with a marginal pump, activating multiple outputs at once may reduce individual spray intensity. Use the outputs selectively if pressure is limited. Warranty registration required: Register at durafaucet.com to activate the limited lifetime warranty. Keep your purchase receipt as proof of purchase.
Tools & Materials Needed: Drill, wall fasteners appropriate for your shower wall material (fiberglass, acrylic, or tile), adjustable wrench, plumber's tape Installation Steps: 1. Shut off water supply to the RV shower 2. Plan column placement: Hold the column against the wall and mark the three bracket positions so the overhead head clears your height comfortably and body jets land at torso level 3. Mount the 3 wall brackets: Drill and secure brackets using fasteners appropriate for your shower wall — use wall anchors if mounting into fiberglass or acrylic without a stud behind it 4. Slide column onto brackets: The column panel mounts to the installed brackets and locks in place 5. Connect hot and cold supply lines: Using plumber's tape on all threaded fittings, connect the column's supply inlets to the wall's hot and cold water lines 6. Attach handheld wand hose: Connect the 60-inch hose between the column's handheld outlet and the wand 7. Restore water and test: Turn on the supply and test each of the four spray outputs. Check all threaded connections for leaks and tighten as needed.
In the Box (everything needed for installation): • DF-SA914-MB shower column panel • Rain-style overhead shower head (mounted to column top) • (2) pivoting body jet sprayers (mounted to column mid-section) • Handheld shower wand with 60-inch flexible hose • Handheld wand wall bracket / holder • (3) wall mounting brackets • All mounting hardware and supply connection fittings NOT Included — Purchase Separately: • Plumber's tape / thread seal tape • Wall anchors or screws for your specific shower wall material • Upstream shower diverter valve (only if your RV currently has a single mixed supply line rather than separate hot/cold connections)
Dura Faucet Customer Service: Phone: 888-242-5932 Email: [email protected] Warranty Registration: Register at durafaucet.com/registration. Proof of purchase (original sales receipt) is required for all warranty claims. Warranty Coverage: Leak- and drip-free performance for the life of the original purchaser's ownership under normal use. All other aspects of the product — including the finish — are warranted against defects in materials and workmanship during normal RV use. Plated metal and plated plastic finishes carry a 1-year warranty. Does not cover damage from misuse, abrasive cleaners, or improper installation. Installation Manual: Download the DF-SA914 manual at durafaucet.com/manuals.
All DF-SA914 finish variants share identical spray output configurations, mounting systems, and installation requirements. Only the surface finish differs. Confirm finish availability with your retailer before ordering.
The DF-SA914-MB is the premium tier of the Dura Faucet shower column lineup — distinguished from the SA913 by its specifically defined 4 spray modes and the confirmed 60-inch handheld hose length. The SA150 and SA100 series are traditional two-hole wall valve replacements for buyers who want a faucet upgrade without a full column system.
