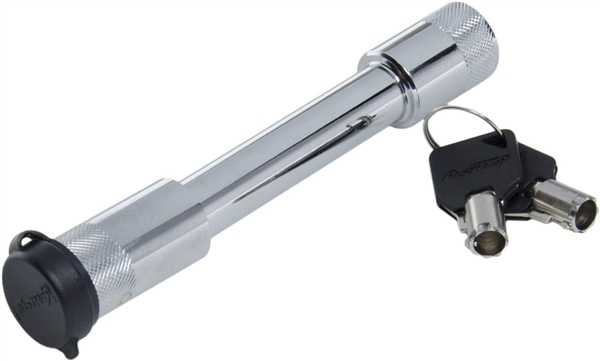

Secures your ball mount in your 2" receiver hitch and deters theft with a drill-resistant barrel lock that cannot be false-locked. 5/8" pin diameter. Chrome-plated hardened steel. Fast 1/4-turn lock and unlock. Weather-resistant O-ring and rubber dust cap protect the mechanism. 2 barrel keys included.
A standard hitch pin and clip secure your ball mount in the receiver — but they offer zero theft deterrence. Anyone with a pair of pliers can remove a clip and walk away with your ball mount in seconds. The Fastway 86-00-3050 Locking Hitch Pin replaces the standard pin and clip with a keyed, drill-resistant barrel lock that secures the ball mount to the receiver and makes removal without a key genuinely difficult.
The key differentiators here go beyond just "it locks." The barrel lock is drill-resistant — a common attack on lesser hitch locks — and specifically engineered so it cannot be "false locked," meaning it won't appear locked while failing to engage properly. The 1/4-turn lock-and-unlock mechanism is fast enough that you'll actually use it every time rather than leaving the mount unprotected for convenience. Chrome-plated hardened steel construction, a diamond knurling grip band for easy handling even with cold or wet hands, and a weather-resistant O-ring with rubber dust cap to keep the mechanism functioning in all conditions. Two keys come included so you have a spare.
Extra-level protection against a common attack method — and specifically cannot be "false locked" into an insecure position
Quick enough to use every time — no excuse to leave your mount unprotected while you're away from the rig
O-ring and rubber dust cap keep ice, water, and dirt out of the locking mechanism to extend its service life
Textured grip band makes the lock easier to handle with cold, wet, or gloved hands at the campsite or work site
Before ordering, confirm the following: 1. Receiver size — 2" only: This locking hitch pin is designed for standard 2" receivers (Class III, IV, and V). If your receiver opening is 2-1/2", see the Fastway 86-00-3160 instead — it uses the same 5/8" pin diameter but is sized for the wider 2-1/2" receiver tube. 2. Pin hole diameter — 5/8": This pin is 5/8" diameter. Confirm your receiver has a 5/8" cross pin hole. Most standard 2" Class III–V receivers use a 5/8" hole, but some OEM factory receiver hitches (particularly on certain Toyota Tundra and other truck models) use a slightly different specification that can cause fit issues. If your existing hitch pin is not 5/8", this lock will not fit. 3. Safety chain routing: Some users note the lock body can impede safety chain hook attachment on certain hitch configurations. If this is a concern for your setup, confirm clearance before purchasing.
Installing the Locking Hitch Pin: 1. Remove Existing Pin and Clip: Pull the existing hitch pin and clip from your receiver's cross pin hole 2. Insert Ball Mount: Slide your ball mount shank fully into the 2" receiver tube, aligning the cross pin hole in the shank with the receiver's pin hole 3. Insert Locking Pin: With the lock in the open (unlocked) position, slide the 5/8" pin through the receiver and ball mount cross holes 4. Lock: Insert the barrel key and turn 1/4 turn to engage the lock — the ball mount is now secured in the receiver 5. Remove Key and Install Dust Cap: Remove the key and cover the keyhole with the rubber dust cap between uses 6. To Remove: Insert key, turn 1/4 turn to unlock, and slide the pin free Store one key separately from the other as a backup. Keep the dust cap installed whenever the lock is not being accessed to extend its service life.
In The Package: • (1) 86-00-3050 Locking Hitch Pin — 5/8" for 2" Receivers • (2) Barrel Keys • (1) Rubber Dust Cap Need a 2-1/2" Receiver Version? • See Fastway 86-00-3160 — same locking system, sized for 2-1/2" receiver tubes
Fastway Trailer Products: Website: fastwaytrailer.com/contact-us Fastway is a brand of Progress Mfg., a leading manufacturer of towing security and accessory products.
Select by receiver size. Both models share the same drill-resistant barrel lock, 1/4-turn operation, chrome-plated construction, and limited lifetime warranty.
