Upgrade to 10 Gallons | LP Gas + Electric | Direct Spark Ignition | Fits 6-Gallon Cutouts
Transform your RV's hot water capacity with the GE Profile PR10DSATBA - a smart 10-gallon dual-fuel water heater that fits existing 6-gallon cutouts with no RV modifications required. This intelligent upgrade provides 67% more hot water capacity while maintaining the same cutout dimensions as your existing 6-gallon Suburban or Dometic water heater. Perfect for families or RVers who want longer showers and greater hot water availability without the expense and complexity of expanding cutout openings.

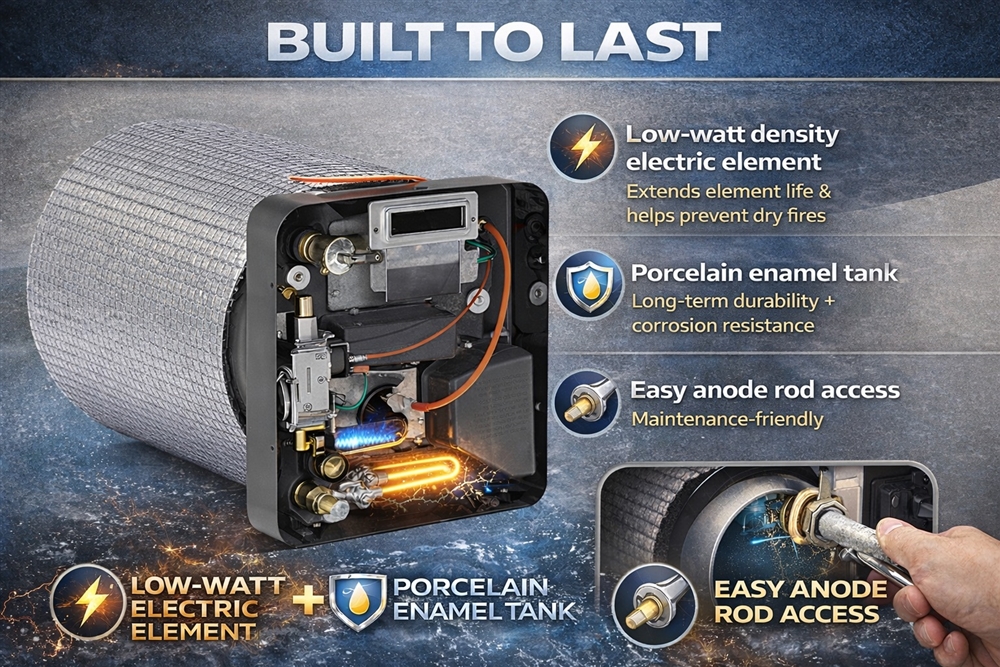

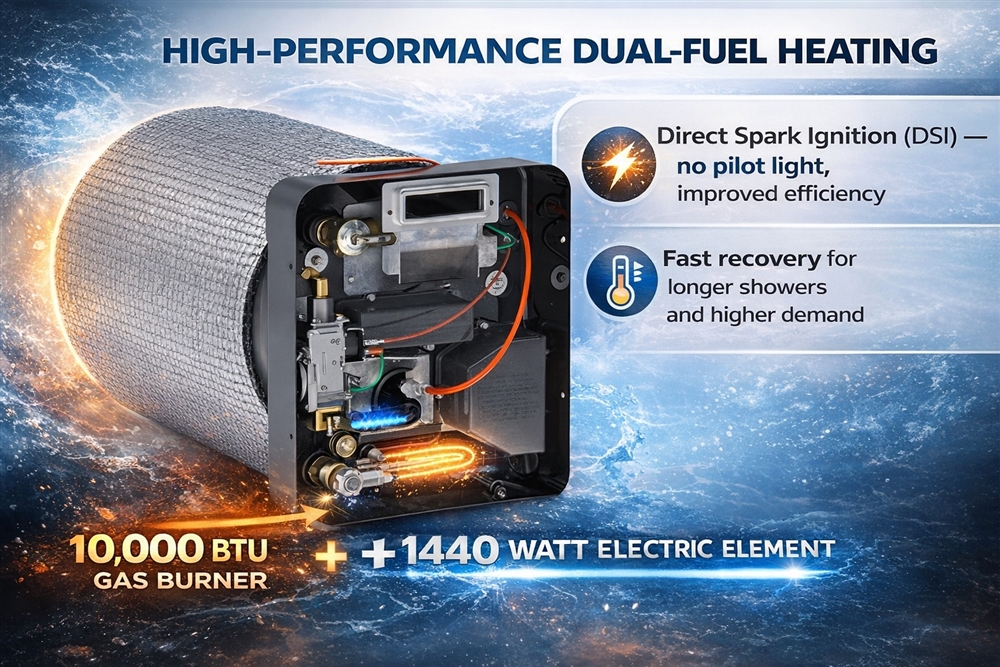

Featuring a powerful 10,000 BTU gas burner and a 1440-watt stainless steel electric element, this water heater delivers exceptional heating performance with flexible dual-fuel operation. Run on LP gas when boondocking, electric when connected to shore power, or both simultaneously for maximum recovery speed. The direct spark ignition (DSI) system eliminates wasteful pilot lights for improved efficiency and reliability. With superior insulation, an enclosed control board, and a porcelain enamel tank, the PR10DSATBA delivers professional-grade performance that enhances your RV's value and your travel comfort.
Upgrade from 6 to 10 gallons for longer showers and greater hot water availability
Fits standard 6-gallon cutouts - upgrade capacity without modifying your RV
10K BTU gas + 1440W electric - run separately or together for max performance
Direct spark ignition - no pilot light for efficient, worry-free operation
The PR10DSATBA is uniquely engineered to fit existing 6-gallon Suburban and Dometic cutouts, allowing you to upgrade from 6 to 10 gallons without any RV sidewall modifications: Upgrades These 6-Gallon Models: • Dometic 94002SP (6-gallon gas/electric) • Dometic WH-6GEA (6-gallon gas/electric) • Suburban SW6DEL (6-gallon DSI/electric with relay) • Suburban SW6DELC (6-gallon DSI/electric with relay) How It Works: The PR10DSATBA maintains the same 12.75" x 12.75" cutout dimensions as 6-gallon models, but extends deeper into the RV cabinet (26.1" vs 18.75" depth). You simply need to ensure adequate cabinet depth to accommodate the larger tank. The same door (PM6BRS or PM6WRS) fits both 6-gallon and 10-gallon models. Important: Your existing on/off switch from Suburban or Dometic 6-gallon models is compatible with this unit. However, you MUST purchase a new GE Profile door (PM6BRS or PM6WRS) as doors are not interchangeable between brands.
This water heater does NOT include an exterior door or indoor switch. You MUST purchase BOTH components separately for a complete, functional system: Exterior Access Door: • PM6BRS - Black exterior door • PM6WRS - White exterior door Indoor Toggle Control Switch: • PMBSRS - Black toggle switch • PMCSRS - White toggle switch ⚠️ WARNING: Competing manufacturers' doors are NOT interchangeable. Only GE Profile door and switch assemblies (listed above) will fit properly.

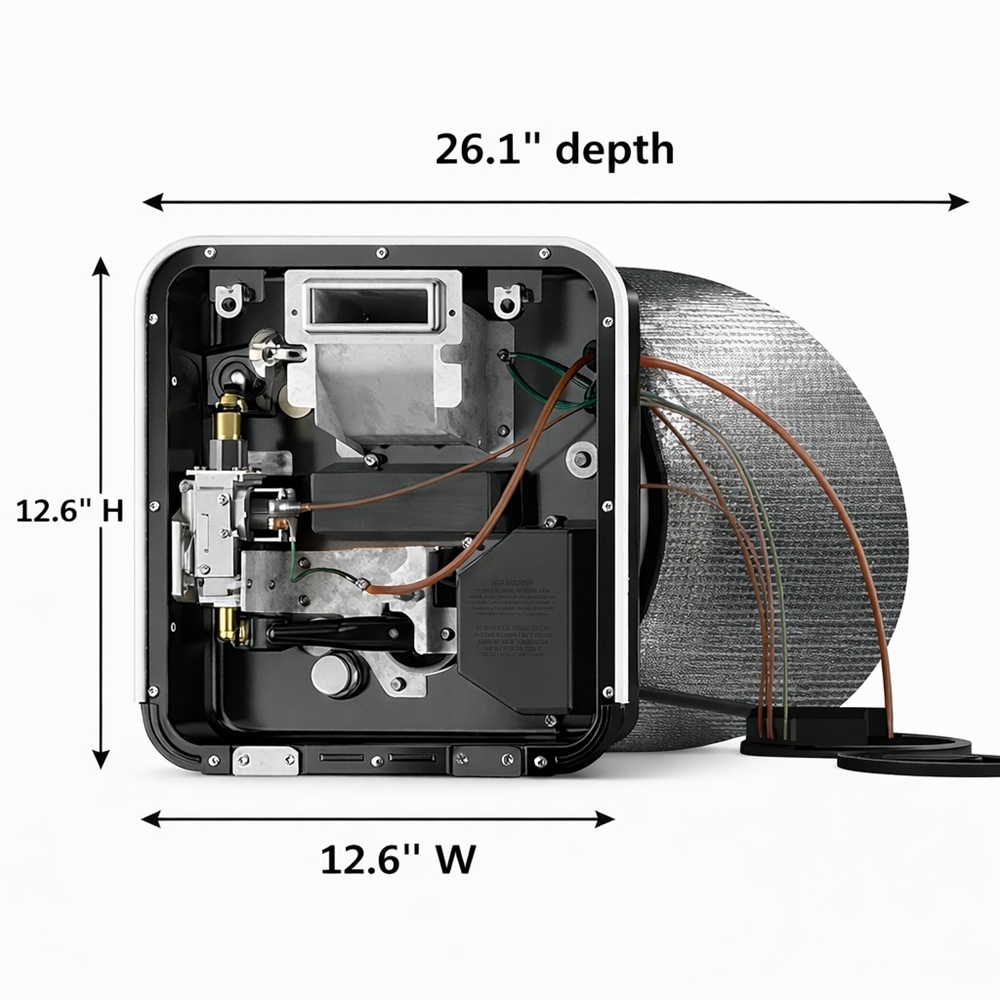

IMPORTANT: While the PR10DSATBA fits existing 6-gallon cutout openings (12.75" x 12.75"), the 10-gallon tank extends deeper into the RV cabinet: Depth Comparison: • 6-Gallon Models: 18.75" depth • 10-Gallon Model: 26.1" depth • Additional Depth Required: 7.35 inches Before ordering, measure the depth of your water heater cabinet from the exterior sidewall to ensure you have at least 26.1 inches of available space. Most RVs with 6-gallon water heaters have adequate cabinet depth, but some compact models may have limited space. If your cabinet depth is insufficient, you may need to: • Remove interior cabinet components (shelves, false walls) • Relocate plumbing or electrical components • Consider staying with a 6-gallon model (PR06DSATBA) Note: Will NOT fit Atwood water heater cutouts, which use completely different dimensions and mounting configurations.
Professional Installation Recommended Pre-Installation Cabinet Check: 1. Measure cabinet depth: Must be at least 26.1" 2. Check for obstructions (shelves, false walls, plumbing) 3. Ensure adequate clearance around tank Basic Installation Steps: 1. Turn off LP gas, 120V power, and water supply 2. Drain existing water heater completely 3. Disconnect propane, electric, and water lines 4. Remove old water heater and door assembly 5. Install new GE Profile door frame to cutout 6. Position PR10DSATBA into cutout (verify cabinet depth first) 7. Seal unit with putty tape around door frame 8. Connect 1/2" water lines (inlet/outlet) 9. Connect 3/8" propane line (use leak detector solution) 10. Plug in 6-foot power cord to 120V outlet 11. Connect 12V power for DSI ignition system 12. Install or reuse toggle switch inside RV 13. Fill tank, check all connections for leaks, test both fuel sources Note: Installation requires intermediate knowledge of RV plumbing, electrical, and propane systems. Hire a qualified RV technician if unfamiliar with these systems.
In The Box: • PR10DSATBA 10-Gallon Water Heater Tank with DSI System • Factory-Installed 6-Foot Power Cord • Owner's Manual • Warranty Documentation
Both models use identical heating systems (10K BTU gas + 1440W electric). The 10-gallon model provides significantly more capacity with the same cutout dimensions, making it ideal for families or anyone wanting longer, more comfortable showers without modifying their RV.
With 10 gallons of capacity and dual-fuel operation, you can run both heating sources simultaneously for maximum performance during peak usage times, or choose the most economical mode based on available utilities.
Product Manuals:Download the GE Appliances PR10DSATBA Dual Fuel RV Water Heater Owner's Manual Technical Support: Phone: 1-800-943-8186 (GE RV Products) Hours: Monday-Friday 8AM-6PM EST Warranty Information: 2-Year Limited Manufacturer's Warranty Covers defects in materials and workmanship Warranty is transferable to new owners Product Registration: Register at: www.geappliances.com
A: Yes, the PR10DSATBA is specifically engineered to fit the same 12.75" x 12.75" cutout opening as 6-gallon Suburban and Dometic models. However, the unit extends deeper into the cabinet (26.1" vs 18.75"). Before ordering, measure your water heater cabinet depth from the exterior sidewall inward. Most RVs with 6-gallon water heaters have adequate cabinet depth to accommodate the 10-gallon unit, but some compact RVs may have limited space. If your cabinet has shelves or false walls behind the water heater, you may need to remove them to create the additional 7.35 inches of depth required. The external cutout dimensions remain unchanged - no sidewall cutting or modifications needed.
A: Absolutely! The PR10DSATBA is designed specifically as a capacity upgrade for 6-gallon Suburban and Dometic models. Your existing Suburban SW6DEL on/off switch will work perfectly with the new unit - you don't need to buy a new switch. You'll only need to purchase a GE Profile exterior door (PM6BRS for black or PM6WRS for white). The installation process is straightforward: drain and disconnect your old Suburban, verify your cabinet depth is at least 26.1", install the new GE door frame, position the PR10DSATBA, and reconnect your propane, water, and electrical lines. Your 12V ignition wiring is also compatible. This is one of the most popular upgrades for families who find 6 gallons insufficient but don't want to cut new holes in their RV sidewall.
A: The practical difference is significant. With a 6-gallon tank, most people get 5-8 minutes of comfortable shower time (depending on flow rate and how much you mix with cold water). With a 10-gallon tank, that extends to 8-12 minutes per person - roughly 60-70% more shower time. More importantly, with the 10-gallon capacity, two people can shower back-to-back without running out of hot water or waiting for recovery. For families, the 10-gallon model can handle 2-3 consecutive showers with minimal wait time between, while a 6-gallon tank typically requires 15-20 minute recovery periods between showers. The larger capacity is also beneficial for dishwashing, laundry, or any situation where you're using hot water continuously. Many RVers report that upgrading from 6 to 10 gallons was one of their best comfort upgrades.
A: For a full 10-gallon tank from cold to hot (140°F): Gas-only (10,000 BTU) takes approximately 25-30 minutes, electric-only (1440W) takes about 50-60 minutes, and running both simultaneously reduces heating time to roughly 20-25 minutes. Recovery time after partial use is faster - if you use 3 gallons for a shower, gas-only recovery takes about 8-10 minutes, electric-only takes 15-20 minutes, and dual-fuel recovers in 6-8 minutes. Most RVers use electric-only mode overnight when plugged into shore power (letting it heat slowly while you sleep), then switch to gas-only or dual-fuel during the day when hot water demand is higher. The dual-fuel capability is especially valuable for families - run both sources when multiple people need showers in the morning to minimize wait time between users.
A: Unfortunately no - the PR10DSATBA will NOT fit Atwood water heater cutouts. Atwood models use completely different cutout dimensions and mounting configurations than Suburban and Dometic models. This GE unit is specifically designed for Suburban SW6DEL/SW6DELC and Dometic 94002SP/WH-6GEA 6-gallon cutouts only. If you have an Atwood water heater and want to upgrade, your options are: (1) Purchase a Dometic water heater specifically designed to replace Atwood models, or (2) Hire an RV technician to modify your sidewall cutout to accept this GE unit (expensive, complex, and not recommended). Always verify your existing brand and model before ordering any RV water heater replacement. Check the label on your current water heater or measure your cutout dimensions before purchasing.
A: The initial heating of 4 additional gallons does use more energy, but in real-world usage, the increase is modest. If you heat from empty once daily, you'll use approximately 40% more propane or electricity for that initial heat cycle. However, the better-insulated 10-gallon tank retains heat longer, reducing standby losses. More importantly, because the 10-gallon tank provides more hot water per heating cycle, you may actually use LESS total energy per gallon of hot water used. For example, if you were running three heating cycles per day with a 6-gallon tank to meet your family's needs, you might only need one or two cycles with a 10-gallon tank. The dual-fuel capability also helps you optimize energy costs - use electric when connected to included campground power, and reserve propane for boondocking. Most RVers report that the comfort and convenience far outweigh any modest increase in energy consumption.
A: Measuring your cabinet depth is straightforward. From inside your RV, locate the water heater cabinet (usually behind an access panel). Measure from the interior cabinet wall straight back to the exterior RV sidewall - you need at least 26.1 inches of clear depth. Most RVs designed for 6-gallon water heaters have 28-32 inches of cabinet depth, providing adequate clearance. However, check for obstructions: Some RVs have false walls, shelves, or plumbing/electrical components behind the water heater that reduce usable depth. If you find obstructions that can be removed (like a shelf or false wall), you can usually create the necessary space. If you're uncertain, take photos of your cabinet interior and consult with an RV technician or your RV dealer before ordering. As a backup option, the 6-gallon PR06DSATBA provides the same dual-fuel technology with 67% less depth requirement if your cabinet space is truly limited.
A: No, you cannot reuse doors from Suburban or Dometic water heaters - you MUST purchase a new GE Profile door (PM6BRS for black or PM6WRS for white). While the cutout dimensions are the same, the mounting systems, hinge configurations, and latch mechanisms are different between manufacturers. GE Profile doors are specifically engineered to mate with GE water heaters and provide the proper seal and ventilation. Using an incompatible door would create air leaks, prevent proper combustion air flow, and could void your warranty. Budget approximately $80-120 for the door when planning your upgrade. The good news is that both the 6-gallon (PR06DSATBA) and 10-gallon (PR10DSATBA) models use the same door, so you only need one door regardless of which capacity you choose. The door is a one-time purchase that will last the life of your water heater.
A: No, winterization procedures are identical to any RV water heater - the larger capacity doesn't change the process. Before freezing temperatures: (1) Turn off gas and electric power, (2) Remove the drain plug and allow all 10 gallons to drain completely (this takes longer than a 6-gallon model - allow 10-15 minutes for complete drainage), (3) Open the pressure relief valve to ensure complete drainage and break any vacuum, (4) You can bypass the water heater when running RV antifreeze through your system, or use compressed air to blow out water lines. The porcelain enamel tank has an accessible anode rod that should be inspected annually and replaced when significantly corroded (typically every 1-2 years depending on water quality). The larger tank doesn't require more maintenance - just be patient during draining to ensure all water is removed before freezing temperatures arrive.
A: The PR10DSATBA comes with a 2-year limited manufacturer's warranty from GE Appliances covering defects in materials and workmanship under normal use. When service is performed by authorized service centers, the warranty typically covers both parts and labor. However, the warranty does NOT cover: damage from improper installation, freezing damage (failure to winterize), damage from sediment buildup (lack of maintenance), normal wear items like the anode rod, damage from incorrect power supply (wrong voltage), or physical damage from impact or abuse. To maintain warranty coverage: keep your purchase receipt, register the product with GE within 30 days, perform annual maintenance (drain tank, inspect anode rod, flush sediment), and ensure proper installation by following the manual or hiring a professional. If you hire an installer, get documentation proving professional installation - this can be crucial for warranty claims. Contact GE at 1-800-943-8186 with questions about specific coverage.
A: Installation requires solid intermediate-level skills in RV plumbing, electrical systems (both 120V AC and 12V DC), and LP gas systems. If you've successfully completed similar RV projects and are comfortable with all three systems, DIY installation is possible by carefully following the manual. However, professional installation is recommended because: (1) LP gas connections must be leak-free and properly tested - gas leaks are extremely dangerous, (2) 120V electrical connections must meet code requirements, (3) 12V wiring for the DSI system must be correctly connected, (4) Water connections must be properly sealed to prevent interior water damage, (5) The heavier 10-gallon unit requires careful maneuvering and support during installation, and (6) Improper installation voids your warranty. Most RV service centers charge $250-500 for water heater installation labor, with the higher end for capacity upgrades requiring cabinet modifications. Many mobile RV technicians can perform the installation at your location. Given the complexity and warranty implications, professional installation is worth the investment for peace of mind and proper operation.
