Overview

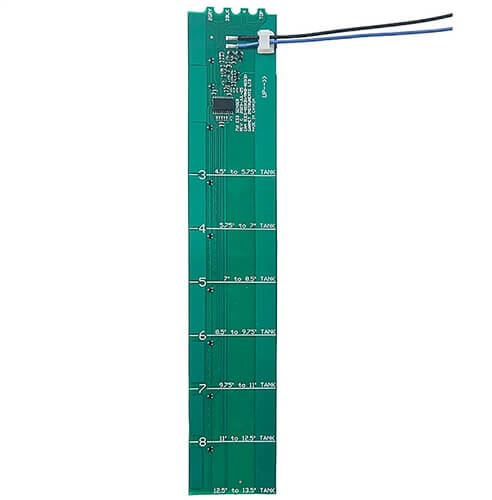

The Garnet 710-ES3 is a flexible, self-adhesive printed circuit sender that mounts to the outside of standard plastic RV tanks—no drilling into the tank. This 12" board can be trimmed in 1.33" increments to match your tank height, and multiple boards can be stacked for taller tanks. It works with all SeeLevel 709-series displays and supports multi-tank installations.

Key Features

• Height Range: Fits tanks 4.5"–14" (single sender), or up to 26" when stacked.*
• Trim-to-Fit: 12" sender can be cut down to 4" in 1.33" segments for a precise fit.
• External Mounting: No inside-tank probes—adhere to the outside wall.
• Multi-Tank: Supports up to 7 tanks (system dependent).
• Fine Resolution: ~0.33" measurement resolution.
• Rugged Build: Flexible glass-epoxy PCB with conformal coating and 3M 300LSE adhesive.
• 709 Compatibility: 710-ES3 works with all SeeLevel 709 systems.

*On 4-tank systems, the gray and galley tanks cannot use stacked senders.

What’s Included

• (1) 710-ES3 12" sender board (self-adhesive)
• Wiring pigtail (as supplied)

Installation (Summary)

1. Confirm tank material (plastic only) and clean the mounting surface.
2. Trim the sender in 1.33" steps to match tank height (min 4").
3. Adhere sender vertically; press firmly along full length.
4. Wire to your SeeLevel harness per the diagram; secure leads.
5. Calibrate/test on your 709 display and verify readings at 0/50/100% levels.

Technical Specifications

Downloads

• Garnet 710-ES3 Sender Installation Instructions (PDF)

FAQs
