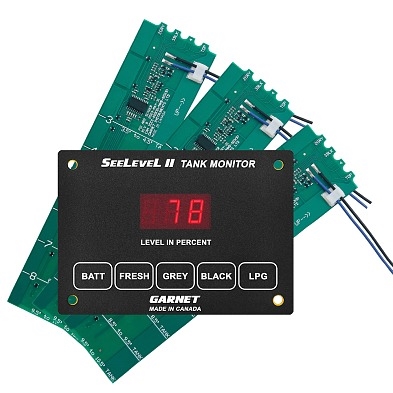

Garnet 709-RVC SeeLevel II Tank Monitoring System with Alarm
Garnet 709-RVC SeeLevel II Tank Monitoring System with Alarm
Garnet 709-RVC SeeLevel II Tank Monitoring System with Alarm



Normally: $357.43
MFG P/N: 709-RVC-1003
MFG: Garnet Technologies
Weight (lbs): 3

Quantity in Stock :9

Availability: In Stock
Product Code: 709-RVC
Qty:

DESCRIPTION Instructions

The Garnet 709-RVC SeeLevel II Tank Monitoring System with Alarm is designed for accurate level measurement of motorhomes and trailers with three holding tanks. This system monitors battery voltage, fresh, grey and black water levels and the LPG tank. The level in percent is shown on a three digit LED display. This model includes an RV-C network interface and a common alarm output which is programmable for level and polarity.
  • Monitors battery voltage, fresh water tank, grey water tank, black water tank the LPG tank
  • Provides accurate tank level information using percentage of full readout
  • Tanks are monitored using Garnet’s proprietary external level sensing technology
    • This ends fouling problems caused by debris build-up in the holding tank
    • Detailed diagnostic information monitors sender operation
  • Measures tanks from 5" up to 34" depending on the sensors you specify
    • Grey and galley water tanks are limited to 12" Tall
  • Tank senders connect to display via a common bus network topology which saves wiring costs
  • LPG tank connection compatible with existing electric senders
  • Calibrate LPG at first fill of tank or it can be factory calibrated
  • Uses common industry connector for ease of installation and servicing
  • RV-C CAN bus interface allows continuous communication with other RV-C compatible systems such as Silver Leaf and Firefly
  • Alarm output for controlling warning devices, pumps, shutoffs, etc.
    • Any or all of the tanks can control the alarm
  • Continuous scanning of tank levels ensures that the alarm and RV-C interface are always current
  • Display requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts
  • Current drain is less than 200mA
  • Panel Dimensions: 4" W x 2.8" H x 1" D
    • Required Cutout Size: 3" W x 1.8" H
  • Includes: (1) Display monitor, (3) 12″ 710ES tank senders, (1) pigtail and mounting screws
  • Limited 1 year manufacturer warranty
  • SeeLevel II RV Tank Monitor Comparison Guide
NOTE: This system will not work on metal tanks.
NOTE: The standard 12″ 710ES senders may be swapped out for either the 6” 710JS and/or 16” 710SS senders. (If you need to exchange senders, please call 866-332-7881 to place your order. Additional charges may apply.)

Garnet 709-RVC SeeLevel II Tank Monitoring System with Alarm

Additional Product Information
Display Mounting Panel: Black panel, approximately 4” wide by 2.8” high by 1” thick (102mm wide X 71mm high X 25mm deep). Panel screws to wall.

Power Requirements: Display requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts. Current drain is less than 200mA.

Wiring: A single two wire conductor required from the display to the senders. All the senders are wired in parallel. 12 V power and ground required for display. Single wire required for LPG sender if sender grounded at tank.

LPG Sender: Display will work with an LPG sender resistance of 0-50 ohms to 0-500 ohms. Display shows increasing level as resistance increases. System must be calibrated with the LPG tank full.
