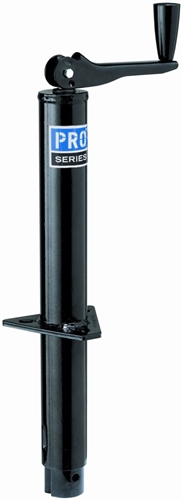

Pro Series EA20000103 A-Frame Top-Wind Jack, 14" Lift - 2,000 Lbs
Pro Series EA20000103 A-Frame Top-Wind Jack, 14" Lift - 2,000 Lbs
Pro Series A-Frame Top-Wind Jack, 14" Lift - 2,000 Lbs



Alternative Views:


Price: $30.13
MFG P/N: EA20000103
MFG: Pro Series
UPC #: 088154099507


Quantity in Stock :13
Availability: In Stock
Product Code: 94-3800
Qty:

DESCRIPTION Instructions

The Pro Series A-Frame Top-Wind Jack is fit for light to medium duty applications. Features a lift of 14" and a maximum lift capacity of 2,000 lbs. Excellent for agricultural and commercial applications.
  • Smooth, comfortable, ergonomic top-wind handle.
  • Dependable vertical and side load capacity.
  • Precision fitted parts for extra stability.
  • Footplate/caster assembly is sold separately.
  • Weld-on or bolt-on installation onto any A-frame coupler.
  • Bracket Height: 8" retracted, 22" extended.
  • Lift: 14".
  • Clearance: 11" from mounting bracket to the top of the jack.
  • Inner Tube Diameter: 2".
  • Outer Tube Diameter: 2-1/4".
  • Lift Capacity: 2,000 lbs.
  • Weight: 12 lbs.
  • Limited 1-Year Manufacturer Warranty.

Pro Series A-Frame Top-Wind Jack, 14" Lift - 2,000 Lbs
