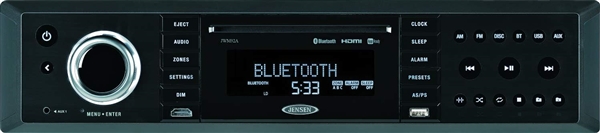

Full-featured wall-mount RV entertainment system with 3 independent speaker zones, DVD/CD player, Bluetooth streaming, HDMI input/output, USB, AM/FM, and app control via the Jensen jControl app. 160W total power across 8 speaker outputs. Slim profile, 12V DC, remote included. Replaces the JWM9A.
The Jensen JWM92A is the definitive wall-mount RV entertainment system â designed from the ground up for recreational vehicle use and tested to withstand the vibration, temperature cycling, and electrostatic discharge conditions of life on the road. It handles everything in one slim, wall-mounted unit: movie nights via DVD with HDMI output to your TV, radio while rolling down the highway, Bluetooth streaming from your phone, and independent audio zones for the bedroom, living area, and outdoor speakers â each with its own volume level and source.
The three-zone architecture is what sets the JWM92A apart from standard single-zone receivers. Zone A, B, and C can each play different sources simultaneously at independent volumes â so one person can watch a DVD in the living area while another listens to the radio in the bedroom and the outdoor zone plays Bluetooth music at the campsite. The jCOM HDMI interface automatically detects DVDs when connected to a Jensen TV, simplifying movie playback. The jControl app lets you control the main functions from any Bluetooth-enabled smartphone or tablet. At 160W total power across 8 speaker outputs, plus dual mono subwoofer outputs, the JWM92A has the headroom to fill your RV with quality audio. The sleek slim-profile design hides mounting screws for a clean finished appearance. Successor to the JWM9A.
Zone A, B, and C each with independent volume control and multi-source playback â different sources in different rooms simultaneously
Control main functions from any Bluetooth-enabled smartphone or tablet with the free Jensen jControl app â dedicated BT button for streaming (A2DP/AVRCP)
Front HDMI input passes through to HDMI output â jCOM interface auto-detects DVDs on Jensen TVs for simplified movie night operation
Slot-type DVD/CD player with 3-second skip protection, plus USB, two aux inputs, optical/coaxial digital inputs, and AM/FM tuner
The JWM92A's three-zone architecture is the key feature that distinguishes it from standard single-zone receivers: Zone A (Main Zone): Typically the living area â full source access including DVD/video output, AM/FM, Bluetooth, USB, and aux inputs. Controls the rear line-level audio output. Zone B (Second Zone): Typically the bedroom or sleeping area â independent volume and source selection. Can play a different source than Zone A simultaneously. Zone C (Third Zone): Typically outdoor speakers â independent volume and source selection. All three zones can play different sources at different volumes at the same time. Available sources per zone: AM, FM, Bluetooth, Front Auxiliary, Rear Auxiliary, Coaxial, Optical, Disc, and USB. Subwoofer outputs: Two mono subwoofer outputs are available for powered subwoofers â in addition to the 8 speaker outputs.
The JWM92A ships with shipping screws installed to protect the DVD mechanism during transport. These must be removed before installation and use. Failure to remove the shipping screws will prevent the DVD mechanism from operating correctly. The shipping screws are located on the unit and are called out in the installation manual â remove them before mounting the unit in the wall. Jensen recommends having the JWM92A installed by a reputable RV dealer or installer familiar with 12V RV electrical systems.
Audio Inputs: âĸ Front 1/8" auxiliary input âĸ Rear RCA auxiliary input âĸ Optical digital audio input âĸ Coaxial digital audio input âĸ Bluetooth (A2DP) âĸ USB (front) âĸ Front HDMI input âĸ Internal CD/DVD player âĸ AM/FM tuner Audio Outputs: âĸ 8 speaker outputs (20W Ã 8, 160W total) âĸ 2 mono subwoofer outputs âĸ Rear RCA fixed/variable line-level output Video Outputs: âĸ Rear HDMI output âĸ Rear RCA composite video output
In The Package: âĸ (1) Jensen JWM92A Wall-Mount RV Stereo âĸ Wireless Remote Control âĸ Mounting Hardware âĸ Installation Manual âĸ Owner's Manual (PDF Download) Free App: âĸ Jensen jControl â available on iOS and Android for smartphone/tablet control via Bluetooth Note: Remove shipping screws from the DVD mechanism before installation â see yellow warning box above.
Jensen / ASA Electronics: Website: jensen-electronics.com Support: support.asaelectronics.com/product/jwm92a Download the Jensen JWM92A Owner's Manual (PDF) Additional support documentation available at support.asaelectronics.com
