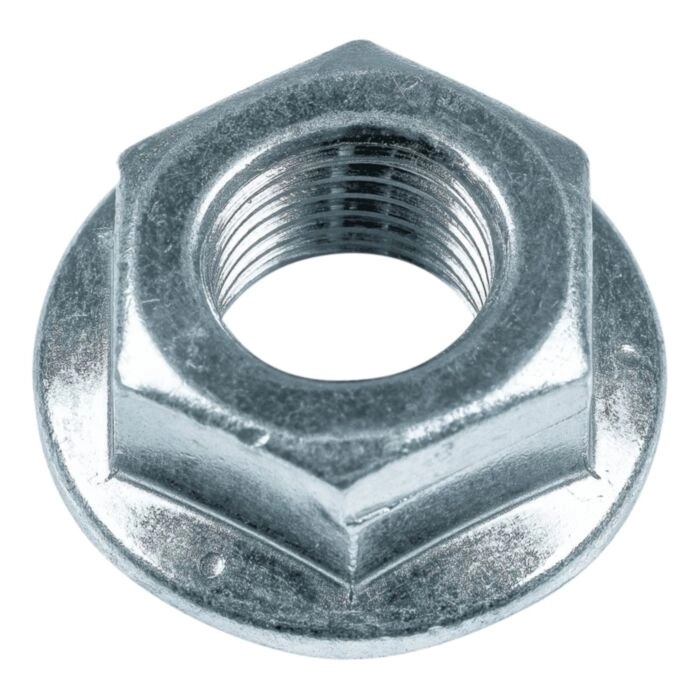

A genuine Lippert replacement hex flange nut engineered for axle shoulder bolt applications in trailer leaf spring suspension systems. The built-in flange bearing surface distributes clamping load evenly, resisting loosening under the vibration and road shock that trailer suspension hardware endures every mile.
The Lippert 122103 is the OEM-spec flange nut used on Lippert axle shoulder bolts that retain leaf spring shackles, equalizer links, and related suspension pivot points. Using the correct nut matters: the flanged bearing surface is sized to seat properly against Lippert's shoulder bolt hardware, and the 7/16"-20 fine thread provides the clamping force and vibration resistance the application demands.
This is a direct-replacement consumable. Suspension hardware should be inspected at every service interval and replaced any time nuts show corrosion, thread damage, or if they have been removed and retorqued more than once. Having a spare set on hand is standard practice for full-timers and anyone running rough roads.
Fine-thread pitch delivers higher clamping force and better resistance to vibration-induced loosening than coarse thread equivalents.
Built-in bearing flange spreads load across the mating surface, eliminating the need for a separate washer and reducing point stress on the shackle plate.
Zinc plating provides a baseline layer of corrosion resistance against road spray and moisture exposure typical of undercarriage hardware.
Exact replacement for Lippert-built axle and suspension assemblies. Matches OEM torque specs and dimensional requirements.
Lippert axle shoulder bolts appear throughout trailer suspension assemblies as the pivot fasteners for:
The shoulder bolt design uses the unthreaded shoulder -- not the threads -- as the actual bearing surface for the shackle or equalizer bushing. The hex flange nut clamps the assembly against the hanger bracket. Correct torque is critical: too loose allows movement and wear; too tight can bind the pivot and accelerate bushing wear.
Using the OEM-spec flange nut ensures the seating geometry matches the shoulder bolt head and bracket face. Substituting a standard hex nut without a flange can create an uneven clamping surface that accelerates wear on urethane or rubber pivot bushings.
Lippert suspension hardware should be inspected at least annually or every 12,000 miles, whichever comes first. Any nut that is corroded, cross-threaded, or has been retorqued more than twice should be replaced rather than reused. This nut is an inexpensive insurance item compared to the cost of a failed shackle on the road.
Keep 2-4 spare flange nuts with your roadside tool kit alongside matching shoulder bolts. Suspension hardware failures are among the most common roadside issues for towed trailers, and having the correct OEM hardware on hand avoids relying on generic hardware store substitutes that may not meet the dimensional or strength requirements of the application.
