Lippert 138417 Hydac Cartridge Valve Assembly with 12V Coil for Hydraulic Slide-Out Systems

Restore Your Slide-Out With the Right Valve -- Not a Workaround

Lippert hydraulic slide-out systems rely on precisely controlled cartridge valves to extend and retract the room under high hydraulic pressure. A worn or failed valve can cause your slide to creep in, refuse to move, or leak fluid internally. Swapping in a genuine Hydac-specification cartridge restores the tight sealing and controlled flow your system was designed for.

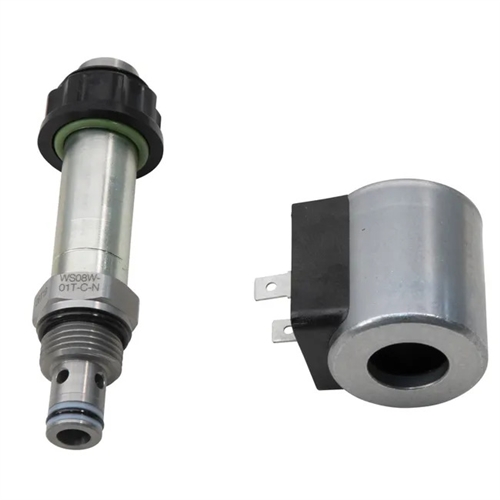

This assembly comes ready to install with both the Hydac cartridge valve body and the matching 12-Volt spade-style solenoid coil. The coil connects directly to your existing wiring harness -- no splicing or adapter needed on compatible Lippert systems. The valve stem includes a turn-and-lock set screw with a built-in manual override, so you can cycle the slide by hand if electrical power is unavailable during service or an emergency.

What Is a Hydraulic Cartridge Valve?

Hydraulic cartridge valves are threaded, self-contained valve elements that screw directly into machined cavities in a hydraulic manifold block. Each valve controls the direction, pressure, or flow of hydraulic fluid to a specific function -- in this case, the extension and retraction of one slide-out room. Because they are sealed against the manifold bore by precision threads and O-ring seals, they must be rated to withstand the full system pressure without weeping or bypass leakage.

The Hydac cartridge in this assembly is a solenoid-operated directional control valve. When the 12V coil is energized by your slide-out control system, the solenoid shifts the valve spool to open a flow path. When de-energized, internal spring pressure returns the spool to the blocked or default position, holding the slide in place.

Installation Notes

Cartridge valve replacement is a manageable DIY job on Lippert hydraulic slide-out systems if you are comfortable working with hydraulic components. Key steps include:

• Relieve all hydraulic system pressure before removing the valve -- never unthread a cartridge under load.
• Use a clean work surface and cap all open ports immediately to prevent contamination.
• Inspect the manifold cavity for scoring or debris before installing the new cartridge.
• Thread the new cartridge in by hand first, then torque to specification using the Hydac cartridge flats -- do not over-torque or you risk distorting the O-ring seals.
• Reconnect the spade-style coil connector, restore system pressure, and cycle the slide several times to bleed air and verify leak-free operation.

Common Failure Symptoms This Part Addresses

• Slide-out slowly creeps in on its own (internal valve bypass leak)
• Slide-out does not respond when button is pressed but pump runs (valve not shifting)
• Visible hydraulic fluid seeping around the manifold in the valve area
• Slide-out moves erratically or only partially extends or retracts
