Slide-out and drop-down griddle tray for RV outdoor kitchens — extends 23.75" and drops 8" to bring most 24" griddles to a comfortable cooking height on taller RVs. 225 lb weight capacity. Powder-coated finish. Compact when retracted: 9.75" H × 25.375" W × 21.75" D. Expands to 45.5" depth when fully extended. Quick installation.

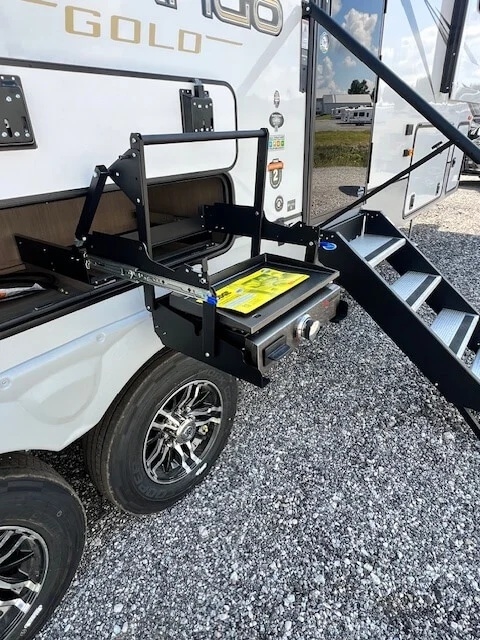

Outdoor kitchens on taller RVs — Class A motorhomes, large fifth wheels, and high-profile travel trailers — often position the slide-out cooking surface at a height that makes griddle cooking awkward or outright uncomfortable. The MOR/RYDE SP56-727 solves that by providing a slide-out tray that extends 23.75" away from the RV and drops 8" down, lowering the griddle to a comfortable working height without modifying the slide-out structure.
The tray is sized to fit most standard 24" RV griddles and supports up to 225 lbs — plenty of capacity for a loaded griddle, accessories, and food prep items. The powder-coated finish resists the outdoor elements, and the unit stores compactly at 9.75" H × 25.375" W × 21.75" D when retracted. When fully deployed, the total depth reaches 45.5" — the combined reach of the slide-out extension and the tray itself.
Lowers the griddle cooking surface 8" from slide-out height — solves the awkward-reach problem on tall RVs
Slides out 23.75" away from the RV for full access to the griddle and cooking space
Rated for 225 lbs — handles a full-size griddle plus accessories, tools, and prep items
Stores at 9.75" H × 25.375" W × 21.75" D when retracted — minimal footprint in the outdoor kitchen bay
Durable powder-coated exterior stands up to outdoor use, grease, and weather exposure
Designed for quick and easy installation into existing RV slide-out outdoor kitchen spaces
• (1) MOR/RYDE SP56-727 Drop Down Griddle Tray • Mounting hardware • Installation instructions / owner's manual
The SP56-727 is designed for RV owners with an outdoor slide-out kitchen whose cooking surface sits too high for comfortable griddle use — a common issue on taller Class A motorhomes, large fifth wheels, and high-profile travel trailers. If your outdoor kitchen griddle is already at a comfortable cooking height, or if your RV does not have a slide-out outdoor kitchen, this tray may not be the right product. MORryde also offers the SP56-567 Griddle Tray — a slide-only (non-drop) version — for installations where drop height isn't needed.
Designed for quick installation into existing RV slide-out outdoor kitchen spaces. Consult the included owner's manual for mounting dimensions and hardware requirements before installation. Verify that your slide-out structure has the clearance and load-bearing capacity to support the tray and rated griddle weight. Consult an RV technician if unsure about your specific installation requirements.
