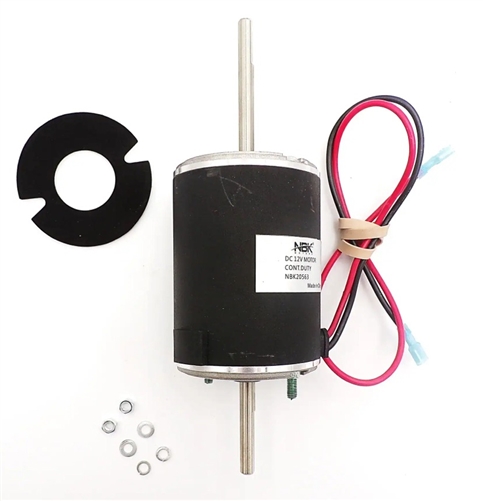

This Suburban 521232 replacement blower motor is designed for Suburban RV forced-air furnaces. This 12V DC motor features a dual-shaft design – one shaft drives the room air blower wheel that circulates warm air through your RV, while the other shaft drives the combustion air wheel that supplies air to the burner assembly.OEM Suburban
When the furnace control board calls for heat, this motor starts and operates continuously throughout the heating cycle. A failing motor typically presents as weak airflow, unusual noises (grinding, squealing, humming), failure to start, or intermittent operation. This OEM motor ensures proper airflow matched to your furnace's BTU rating for safe, efficient heating.
Suburban SF-series furnaces use two different motor shaft configurations. Your furnace model number alone is NOT enough to determine the correct motor. You must check the location of the shaft flat (notch) – the flat spot where the blower wheel set screw seats. This motor (521232) is correct if the flat is on the SHORT shaft, approximately 2–2¾" from the motor face. If the flat is on the LONG shaft (approximately 3½–4" from the motor face), you need Suburban 233102 instead. If the wrong motor is installed: The blower wheel will not line up correctly, the set screw will miss the flat, and the blower may rub the housing or sit too shallow. The furnace may physically fit but will not operate correctly.
521232 supersedes and replaces these earlier Suburban motor part numbers: • 233043 • 521255 If your furnace currently has motor 233043 or 521255, this is the correct replacement.
This motor fits the following Suburban furnace models (with shaft flat on the SHORT shaft):
This motor is NOT compatible with older furnaces below the listed serial numbers. Earlier models used a shorter 2.5" length motor that has been discontinued and is NOT interchangeable with this 3" motor. How to read Suburban serial numbers: Furnaces manufactured after January 1990 have 9-digit serial numbers. The first 2 digits indicate the year of manufacture. The next digits indicate the week of the year. Example: Serial number 012305199 = manufactured in 2001, week 23.
1. Disconnect power – turn off furnace and disconnect 12V supply 2. Access the motor – remove furnace cover/access panel 3. Mark wire positions – note which wire goes where before disconnecting 4. Check the shaft flat – confirm the flat (notch) is on the SHORT shaft before proceeding 5. Remove blower wheels – carefully remove wheels from both shafts (they may be tight) 6. Remove mounting screws – typically 2 screws on short shaft side 7. Install new motor – use included gasket, reinstall in reverse order 8. Align set screw to flat – ensure blower wheel set screw seats firmly on the shaft flat 9. Test operation – verify proper airflow and no unusual noises
The furnace motor is a central component in forced-air RV heating systems. When the thermostat calls for heat, the control board energizes the motor. The dual-shaft design allows one motor to perform two critical functions simultaneously:
The motor RPM and size are matched to the furnace's BTU rating. Using the wrong motor can result in poor heating performance, unsafe operation, or premature failure.
Check the shaft flat (notch) location: Flat on SHORT shaft → This motor (521232) ✓ Flat on LONG shaft → You need Suburban 233102 instead The shaft flat is the flat spot where the blower wheel set screw locks into place. If the flat is on the wrong shaft, the blower wheel cannot be properly secured and the furnace will not operate correctly.
SF = Standard Furnace SFV = Standard Furnace Vent 20/25/30/35/42 = BTU rating (×1000) F = Fan-only switch equipped Q = Quiet operation VH = Very High altitude
