600 lb capacity sport motorcycle carrier. 77.5" x 7.875" rail. 71" x 7.625" ramp included. Reversible. Towing capable (3,000 lb). 111 lbs. Made in USA.

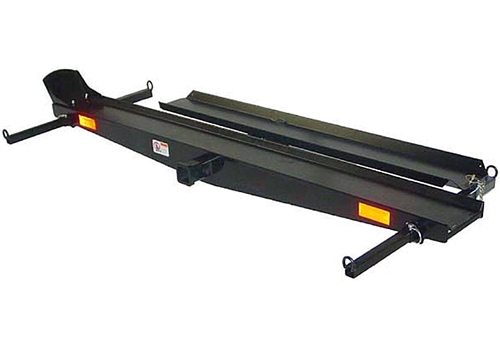

The VersaHaul VH-SPORT RO is a sport motorcycle carrier designed for transporting your bike on road trips without using a trailer. This complete system includes a loading ramp for easy loading and unloading. With a 600 lb capacity and a wide 77.5" x 7.875" carrier track, the VH-SPORT RO accommodates sport bikes and motorcycles with wide tires.
The VH-SPORT RO features reversible rails for loading from either side, a movable wheel stop for perfect positioning, and adjustable tie-down bars for custom bike fit and easy storage. The carrier includes a 71" x 7.625" ramp, anti-tilt lock bracket, 24" main tube, 4 retractable tie-down bars, and an integrated Class III tow receiver for light-duty towing (3,000 lbs maximum). Weighing 111 lbs (89 lbs without ramp) with powder coat finish, the VH-SPORT RO is made in the USA and protected by US Patents (US D554,041 S, 20070052206).
Hitch Requirements: • Class III Hitch: Typically rated for 500 lbs tongue weight • Class IV Hitch: Typically rated for 1,000 lbs tongue weight • Receiver Size: Standard 2" receiver Vehicle Requirements: • Always verify your vehicle's tongue weight rating and payload capacity • Total tongue weight = VH-SPORT RO (111 lbs) + motorcycle (up to 600 lbs) = up to 711 lbs Towing Capability: • Integrated Class III receiver for light-duty towing • Maximum towing weight: 3,000 lbs (light trailers only) • Calculate total tongue weight: carrier + motorcycle + trailer tongue weight
This Complete System Includes: • (1) Anti-Tilt Lock Bracket • (1) 24" Main Tube • (4) Retractable Tie-Down Bars • (1) Carrier Track (77.5" x 7.875") • (1) Wheel Stop • (2) Reflectors • (1) Loading Ramp (71" x 7.625") • Installation Instructions Carrier Specifications: • Model: VH-SPORT RO • Weight: 111 lbs (with ramp), 89 lbs (without ramp) • Capacity: 600 lbs • Towing: 3,000 lbs max • Rail: 77.5" x 7.875" • Ramp: 71" x 7.625"
Pre-Installation Requirements: 1. Verify motorcycle weighs 600 lbs or less 2. Check vehicle tongue weight rating (must handle 711 lbs minimum) 3. Verify ground clearance for ramp deployment 4. Review complete VH-SPORT instruction booklet Installation Overview: Connect 24" main tube to 77.5" x 7.875" carrier track. Install anti-tilt lock bracket. Position wheel stop on carrier track. Mount 4 retractable tie-down bars. Insert assembled carrier into 2" hitch receiver and secure with hitch pin. Attach reflectors. Reversible Rails Feature: Rails can be reversed for loading from either driver or passenger side. Configure for best access in your garage/driveway. Loading Your Motorcycle: 1. Deploy 71" x 7.625" loading ramp 2. Ensure ramp is stable and secure 3. Slowly roll or ride motorcycle up ramp onto carrier track 4. Center motorcycle on 7.875" wide carrier track 5. Roll forward until front wheel reaches wheel stop 6. Secure motorcycle with tie-down straps using retractable tie-down bars 7. Remove and store ramp in vehicle 8. Verify motorcycle stability Using Integrated Tow Receiver (Light-Duty Only): The VH-SPORT RO has a Class III receiver for light-duty towing up to 3,000 lbs maximum. Suitable for small utility trailers, lightweight boat trailers, or compact cargo trailers. DO NOT exceed 3,000 lbs. Calculate total tongue weight: carrier (111 lbs) + motorcycle + trailer tongue weight. Important Safety Notes: • DO NOT exceed 600 lbs capacity • DO NOT exceed 3,000 lbs towing capacity • NEVER exceed vehicle's tongue weight rating
