Full Xanbus system control panel for compatible Xantrex Freedom SW inverter/charger systems. Provides centralized setup, monitoring, configuration, and control of Freedom SW and other compatible Xanbus-enabled devices from one graphical LCD interface.

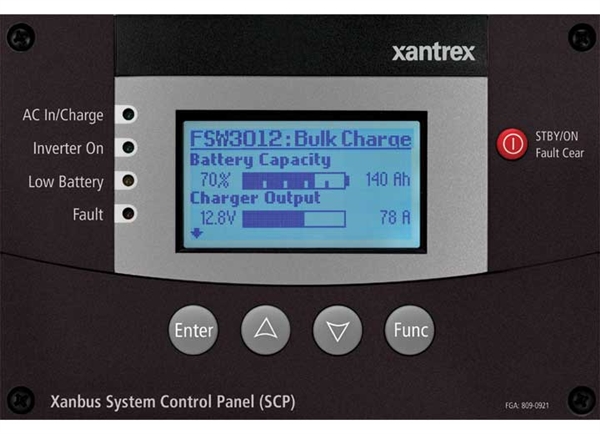

The Xantrex 809-0921 Freedom SW System Control Panel is a full Xanbus control and monitoring interface for compatible Freedom SW inverter/charger systems. It allows users to view system status, adjust settings, review fault information, and control connected Xanbus-enabled devices from a central display.
Unlike the basic Freedom SW remote on/off switch, the System Control Panel provides deeper setup and monitoring functions. It is the correct accessory when the installation requires configuration access, device status, fault review, or control of multiple networked Xanbus components.
128 x 64 pixel display provides system information, menus, and device status
Controls and displays information from multiple compatible networked devices
Allows detailed Freedom SW settings and Xanbus device configuration
Displays warnings, faults, and system information to support troubleshooting
The 809-0921 System Control Panel is commonly used in RV, marine, coach, bus, and specialty vehicle installations with compatible Freedom SW inverter/chargers and other Xanbus-enabled accessories. It is especially useful when the system includes additional Xanbus components such as an Automatic Generator Start module, or when the inverter/charger needs to be configured and monitored from inside the living area.
• One Xantrex 809-0921 Freedom SW Xanbus System Control Panel Note: Verify whether Xanbus network cable and terminators are included with your package or required separately for the specific installation.
The System Control Panel connects to the Freedom SW system through the Xanbus network. Mount the panel in a dry, accessible interior location where system status and settings can be viewed and adjusted conveniently. Xanbus networks require proper cable routing and termination. Follow the Freedom SW and SCP installation instructions for correct network layout, cable length, and terminator placement.
Xantrex 809-0921 is the full Xanbus System Control Panel for compatible Freedom SW systems. If you only need basic remote on/off control, check the Freedom SW Remote On/Off Switch instead. Verify Freedom SW model compatibility before ordering. Xantrex lists 809-0921 for Freedom SW 2012 and 3012, while other Freedom SW generations/models may use a different SCP part number.
The Xantrex 809-0921 is the full Xanbus System Control Panel for compatible Freedom SW 2012 and 3012 inverter/charger systems. It provides comprehensive setup, monitoring, fault display, and control for Freedom SW and compatible networked Xanbus devices.
