Xanbus automatic generator start module for compatible Freedom SW inverter/charger systems. Automatically starts and stops a compatible generator based on battery voltage, thermostat demand, inverter load, and programmed operating preferences.

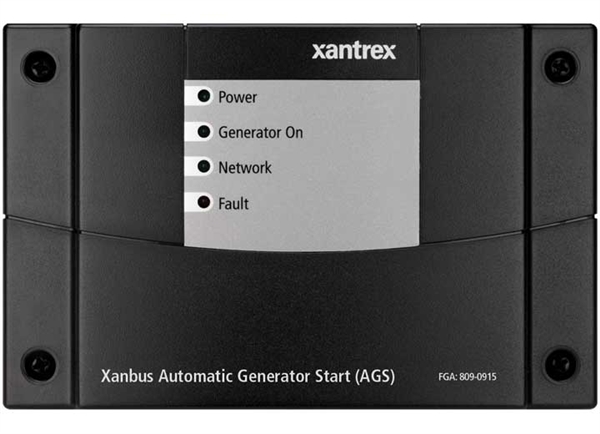

The Xantrex 809-0915 Freedom SW Automatic Generator Start module adds automatic generator control to compatible Xanbus-based Freedom SW inverter/charger systems. When properly installed and configured, the AGS can start a compatible generator automatically to recharge batteries, support heavy loads, or respond to climate-control demand.
This module helps reduce the need to manually monitor battery condition and generator start timing. It is especially useful for RV, marine, coach, and off-grid mobile power systems where battery charging and onboard AC power availability need to be managed automatically.
Starts a compatible generator automatically based on programmed system conditions
Can start the generator when battery voltage reaches configured thresholds
Communicates with compatible Freedom SW systems through the Xanbus network
Can support generator start requests for compatible HVAC/thermostat demand setups
The 809-0915 AGS module is commonly used in Freedom SW inverter/charger systems where generator automation is needed for battery charging, climate control support, or load management. It is not a stand-alone generator controller by itself. It must be installed as part of a compatible Xantrex Xanbus system and configured for the generator and inverter/charger setup.
• One Xantrex 809-0915 Freedom SW Xanbus Automatic Generator Start module • Generator wiring connector / AGS connection interface
This AGS module is designed for compatible Xantrex Freedom SW and Freedom SW-RVC inverter/charger systems using a Xanbus network. Setup and programming require compatible Xanbus control equipment, such as the appropriate Xantrex System Control Panel. Generator wiring varies by generator brand and start/stop control type. Confirm generator remote-start compatibility and required wiring before installation.
Automatic generator start systems can start the generator without someone manually pressing a start switch. Disable the generator starting circuit before wiring, servicing, fueling, or performing maintenance. Do not install or operate the AGS where accidental generator start could create a carbon monoxide, fire, electrical, or mechanical hazard. Installation should be performed by someone familiar with generator control wiring, Xanbus networking, and RV/marine electrical safety.
The Xantrex 809-0915 is the Freedom SW Xanbus Automatic Generator Start module. It adds automatic generator start/stop capability to compatible Freedom SW systems but must be installed, wired, and configured correctly for the generator and Xanbus network.
