3000 watt true sine wave inverter for RV, marine, work truck, and mobile power systems. Converts 12V battery power to clean 120V AC output and includes a built-in 30 amp transfer relay for compatible shore power or generator pass-through installations.

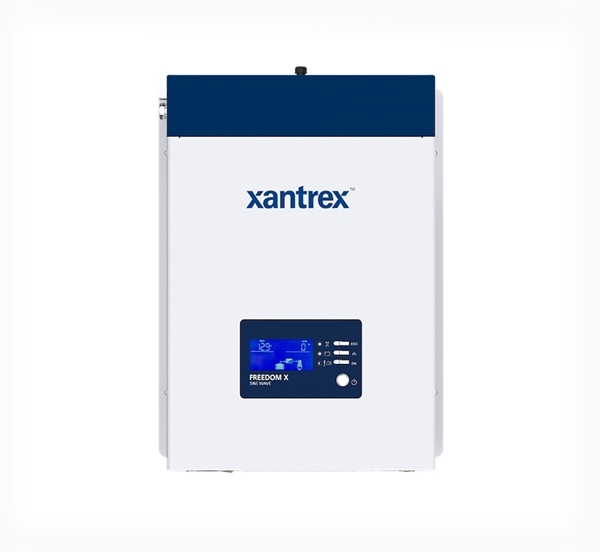

The Xantrex Freedom X 817-3000 is a 3000 watt true sine wave inverter designed to power sensitive electronics, appliances, entertainment systems, tools, and motor loads from a 12V battery bank. It produces clean 120V AC power that is better suited for modern electronics than modified sine wave inverter output.
The Freedom X series includes a built-in AC transfer relay, allowing connected AC loads to transfer between inverter power and an available AC input source when properly installed. This 3000W model is a strong choice for larger RV, marine, van, and work vehicle power systems where higher inverter capacity is needed.
Provides 3000 watts of continuous true sine wave AC power
Supports brief startup surge for compatible motor and appliance loads
Built-in AC transfer relay supports compatible shore/generator pass-through wiring
Compatible with optional Freedom X/XC remote panel and Bluetooth remote options
The Xantrex Freedom X 817-3000 is commonly used in RVs, boats, vans, work trucks, service vehicles, and mobile power systems that need high-capacity clean AC power from a 12V battery bank. Typical uses may include powering entertainment equipment, computers, refrigerators, microwave loads, CPAP machines, tools, small appliances, and selected AC branch circuits when the battery bank, wiring, fusing, and installation design are properly sized.
• One Xantrex Freedom X 817-3000 3000W true sine wave inverter • Built-in 30A AC transfer relay • Installation/owner documentation as supplied by manufacturer
This 3000W inverter requires proper DC battery cable sizing, overcurrent protection, grounding, ventilation, AC input/output wiring, and battery bank capacity. A 3000W inverter can draw very high current from a 12V battery bank, so installation design is critical. The Freedom X 817-3000 is an inverter only. It does not charge batteries. If battery charging from shore power is needed, use an inverter/charger model such as the Freedom XC series or a separate compatible battery charger.
Inverter installation involves high-current 12V DC wiring and 120V AC wiring. Incorrect installation can cause electrical shock, fire, equipment damage, battery damage, or unsafe backfeed conditions. Installation should be performed by a qualified RV, marine, or electrical technician familiar with inverter systems, transfer switching, grounding, ventilation, and battery protection requirements.
The Xantrex Freedom X 817-3000 is a 3000W true sine wave inverter for 12V battery systems with 120V AC output and a built-in 30A transfer relay. Verify battery voltage, load requirements, surge needs, wiring size, overcurrent protection, ventilation, and installation design before ordering.
