You hook up the trailer, walk back to check the lights before pulling out, and there it is, or rather, there it isn't. No brake lights. Dead turn signals. Maybe nothing at all. Few things stop a trip cold like trailer lights that refuse to work, and few things feel more daunting to fix if you are not an electrician.
Here is the reassuring truth: trailer light problems are among the most common towing issues, and the overwhelming majority of them trace back to the wiring connection between your vehicle and trailer, not some mysterious electrical fault deep in the system. A bad connector, a corroded plug, or the wrong harness is usually the whole story.
Beyond the inconvenience, working trailer lights are a legal and safety necessity. Brake lights, turn signals, and running lights tell every driver behind you what you are about to do, and towing without them is both dangerous and illegal. This is not a repair to put off until later.
This guide walks you through why trailer lights fail, how to identify the connection type you need, and the specific wiring harnesses and connectors that get your lights working again, including vehicle-specific harnesses, universal connectors, and a magnetic tow light kit for when you need lights fast.
Almost every trailer light failure comes down to the electrical connection, and understanding the usual suspects makes the fix far less intimidating. The system is simple in principle: your tow vehicle sends power through a connector to the trailer's lights, and anywhere along that path, a fault can break the circuit.
Corroded or damaged connectors are the number one culprit. The plug between vehicle and trailer lives outdoors, exposed to rain, road salt, and mud, and over time, the contacts corrode or the housing cracks. A connection that worked last season may be green with corrosion this spring, interrupting the power your lights need.
A wrong or failing wiring harness is the next common cause. Many vehicles need a specific harness to tap into their electrical system correctly, and a generic or improperly installed harness can cause lights to work intermittently or not at all. Modern vehicles in particular often require a harness matched to that make and model.
Then there are the simpler issues that masquerade as big problems: a blown fuse, a bad ground connection, or a mismatch between your vehicle's connector and the trailer's. The encouraging part is that all of these are fixable with the right connector or harness, and none of them requires you to be an automotive electrician to solve.
It is worth understanding the role of grounding specifically, because it causes more head-scratching than almost anything else. Trailer lights complete their circuit by grounding through the trailer frame and the connection back to the vehicle, and if that ground path is interrupted by rust, a loose bolt, or a corroded connector, the lights can do bizarre things, dim when another light comes on, flicker, or fail in confusing combinations. When trailer lights behave strangely rather than simply dying, a bad ground is very often the hidden cause, and it is worth checking early.
Before fixing anything, you need to know what kind of connection your setup uses, because trailer wiring comes in several standard configurations and they are not interchangeable. Matching the connector is the foundation of the whole repair.
The 4-way flat connector is the most common on smaller trailers, handling the basic functions: running lights, turn signals, and brake lights. The 5-way flat adds a wire, often for trailers with surge brakes or a reverse light signal. The 7-way connector is the standard for larger trailers and RVs, carrying the basic lighting plus electric brakes, a 12-volt power line, and more.
Your job is to match the trailer's connector to your vehicle's, and where they differ, bridge them correctly. Look at what your trailer has and what your vehicle offers, identify whether you need a vehicle-specific harness, a universal connector, or an adapter, and you are halfway to a working set of lights. The products that follow cover each of these situations.
If your tow vehicle lacks proper trailer wiring or the existing setup is faulty, a harness designed specifically for your make and model is the cleanest fix. These plug into your vehicle's existing electrical system at designated points, no splicing or guesswork, and provide a correct, reliable trailer connection.
The advantage of a vehicle-specific harness is precision. Rather than tapping wires and hoping, you get a harness engineered to connect exactly where your vehicle expects it, which means reliable lights and no damage to your vehicle's electrical system. Here are three examples for popular tow vehicles.

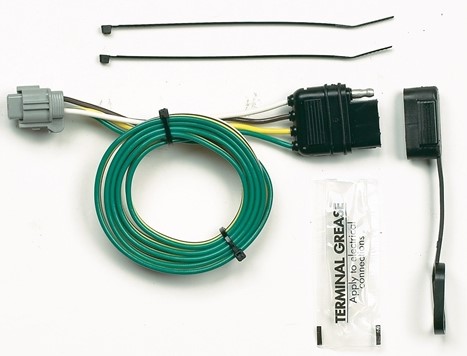

The Hopkins Trailer Wiring Harness for 2005-2018 Nissan Xterra, Pathfinder, and Frontier is a plug-and-play solution for those specific vehicles. Hopkins is a trusted name in trailer wiring, and this harness connects directly to the Nissan's electrical system at the designated points, giving you a proper trailer connection without splicing into factory wiring.
For owners of these Nissan models, this takes the entire guesswork out of trailer wiring. Confirm your vehicle falls within the year range and model list, plug it in where it is designed to go, and you have a clean, reliable foundation for your trailer lights.
Buy Hopkins Trailer Wiring Harness for Nissan

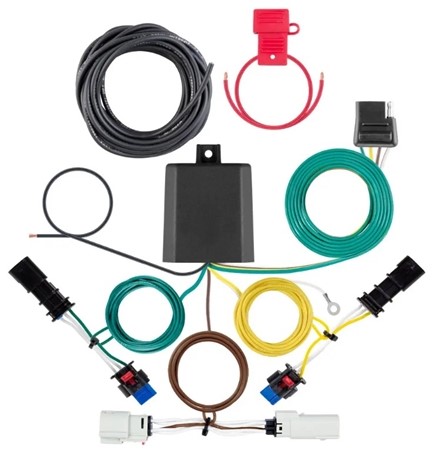

The Curt MFG Custom Wiring Harness with 4-way flat output is built for select Buick Envista vehicles, providing the common 4-way flat connection that smaller trailers and accessories use. Curt is one of the biggest names in towing, and a custom harness like this is engineered to integrate cleanly with the Envista's electrical system.
If you tow a small trailer or use a hitch-mounted accessory that needs lights, this harness delivers the 4-way flat output without modification to your vehicle's wiring. Match it to your specific vehicle, and it provides a tidy, correct connection point.
Buy Curt MFG Custom Wiring Harness for Buick Envista

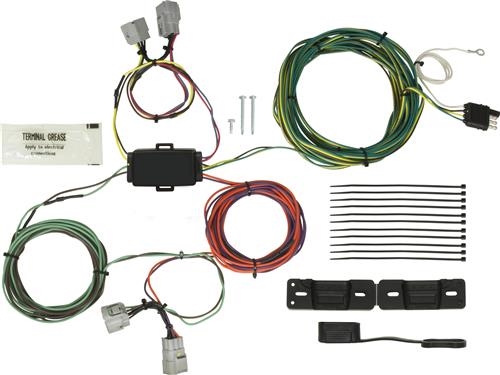

The Blue Ox BX88339 EZ Light Wiring Harness for the 2014-2018 Jeep Cherokee is especially relevant to RVers who flat-tow a vehicle behind their motorhome. The Jeep Cherokee is a popular dinghy vehicle, and this harness handles the lighting connection so the towed Jeep's lights mirror the motorhome's, exactly what is needed for safe, legal flat towing.
Blue Ox is a leading name in the flat-towing world, and the EZ Light system reflects that focus. For Cherokee owners towing a four-down behind their RV, this harness is the purpose-built answer to getting the towed vehicle's lights working correctly with the coach.
Buy Blue Ox BX88339 EZ Light Wiring Harness for Jeep Cherokee
It used to be that wiring a vehicle for trailer lights meant splicing into the taillight wires and hoping for the best. On today's vehicles, that approach is not just messy; it can be genuinely harmful. Modern vehicles run sophisticated electrical systems with computers that monitor circuits, and tapping wires the old way can confuse those systems, trigger warning lights, or even cause damage.
This is the core reason vehicle-specific harnesses have become the standard solution. A harness designed for your exact make, model, and year plugs into a connection point the manufacturer provided for precisely this purpose, drawing the lighting signals correctly without interfering with the vehicle's electronics. It protects both your lights and your vehicle.
That is also why matching the harness to your specific vehicle matters so much, and why a harness for one model will not simply work on another. The year range and model list on a harness are not suggestions; they reflect the specific electrical architecture the harness was engineered for. Confirming that your vehicle is covered before ordering is the single most important step in a clean, trouble-free installation.
Sometimes the harness is fine, and the problem is simply the connector itself, corroded, cracked, or the wrong type for your trailer. Replacing the connector is often the quickest and cheapest fix of all, and it solves a surprising share of trailer light failures.
The Tow Ready 5-Way Flat Connector is the replacement for a worn or damaged 5-way flat connection, the configuration used on many trailers that need that extra fifth wire for surge brakes or a reverse signal. When your existing connector has corroded or cracked, a fresh one restores a clean, solid connection.
This is the fix when your wiring is sound but the plug has simply aged out. Corrosion at the connector is one of the most common reasons trailer lights flicker or die, and swapping in a new 5-way flat connector is a straightforward, inexpensive repair that often brings everything back to life at once. Confirm your setup uses the 5-way flat configuration before ordering.
Buy Tow Ready 5-Way Flat Connector
There are times when you cannot wait for a wiring repair, a borrowed trailer with dead lights, a quick haul, or a temporary tow where wiring into the trailer is not practical. For those situations, a magnetic tow light kit is the fast, portable answer.
The Peterson Magnetic-Mount Tow Light Kit provides running lights, brake lights, and turn signals through magnetic lights you simply stick onto a metal surface and plug into your vehicle. There is no wiring into the trailer required, making it ideal for temporary towing, borrowed trailers, or any time you need legal, working lights in minutes rather than hours.
Peterson is a long-established name in vehicle lighting, and this kit is the practical solution every tower should know about. Keep one in the truck, and you are covered for the unexpected: the trailer whose lights fail on the road, the quick favor moving someone's utility trailer, the haul where permanent wiring makes no sense. It is temporary by design, but it is genuinely useful insurance to have on hand.
Buy Peterson Magnetic-Mount Tow Light Kit
For larger trailers and RVs, the 7-way connector is the standard, carrying not just lights but electric brakes and a 12-volt power line. Newer vehicles often need a connector assembly matched specifically to them to make all of this work correctly.

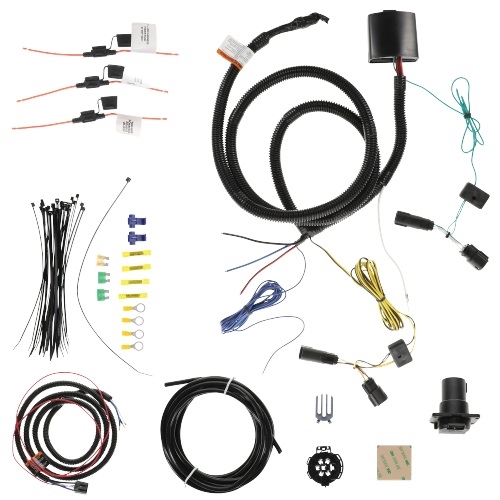

The Tekonsha 7-Way Trailer Wiring Connector Assembly for the 2021-2022 Jeep Grand Cherokee L brings full 7-way functionality to that specific vehicle, the lights, the electric brake connection, and the power line that larger trailers and RVs require. Tekonsha is a respected name in towing electronics, and a vehicle-specific 7-way assembly like this ensures everything integrates correctly with modern vehicle wiring.
Newer vehicles have increasingly complex electrical systems, which is exactly why a connector assembly engineered for your specific make, model, and year matters so much. For Grand Cherokee L owners towing a larger trailer, this assembly provides the complete, correct 7-way connection that a generic part cannot reliably deliver.
Buy Tekonsha 7-Way Trailer Wiring Connector for Jeep Grand Cherokee L
When your trailer lights fail, a quick, logical check points you to the right fix before you buy anything. Start at the connector, unplug it, and look closely. Corrosion, bent pins, or a cracked housing are common and obvious culprits, and cleaning or replacing the connector may solve the problem outright.
If the connector looks sound, check the basics next: a blown fuse in the tow vehicle, or a poor ground connection, accounts for a great many trailer light failures and costs nothing to rule out. Test whether some lights work and others do not, since that pattern helps isolate whether the issue is a specific circuit or the whole connection.
If the connection between vehicle and trailer is the weak point, and it usually is, decide whether you need a vehicle-specific harness to tap your vehicle correctly, a replacement connector to renew a worn plug, or a temporary magnetic kit to get moving now. Match the solution to what you find, and trailer light repairs become a manageable job rather than a mystery. When the wiring is genuinely complex or you are unsure, there is no shame in having a professional verify the connection, especially on newer vehicles with intricate electrical systems.
Once your lights are working again, a little routine care keeps them that way and spares you the pre-trip panic. The connector is the part most exposed to the elements, so a periodic look pays off: unplug it, check for the beginnings of corrosion, and a touch of dielectric grease on the contacts goes a long way toward keeping moisture and oxidation at bay. That simple habit prevents a large share of future failures.
Make a trailer light check part of your standard pre-trip routine, every single time you hook up. It takes thirty seconds with a helper, or you can use a reflection or a wall to confirm brake lights and signals on your own. Catching a dead light in the driveway is a minor fix; discovering it after a state trooper points it out is a different kind of day.
Protect the wiring itself, too. Make sure trailer wiring is secured and not dragging, chafing, or dangling where it can catch, since a wire worn through by vibration or abrasion is a common and avoidable cause of failure. A few minutes securing loose wiring and inspecting connections each season keeps the whole system dependable, so the lights are simply there, working, every time you need them.
Dead trailer lights feel like a trip-ending emergency, but they are almost always a connection problem with a clear, affordable fix. The wiring between your vehicle and trailer, a harness, a connector, a plug, is where the trouble lives, and renewing the right piece gets your lights working safely and legally again.
Match the fix to your situation: a vehicle-specific harness like the Hopkins for Nissan, the Curt for the Buick Envista, or the Blue Ox EZ Light for a flat-towed Jeep Cherokee when your vehicle needs proper wiring; a Tow Ready 5-way flat connector to replace a worn plug; the Tekonsha 7-way assembly for a modern Grand Cherokee L towing something larger; and the Peterson magnetic tow light kit for when you need lights immediately.
Diagnose at the connector first, match the part to your connector type and vehicle, and never tow without working lights. Get it right, and the next time you walk back to check before pulling out, you will see exactly what you want to see: brake lights, blinkers, and running lights all working, and nothing standing between you and the road.
