One-touch fully automatic leveling for Ford E-450 Class C motorhomes. Includes both bolt-on and weld-on brackets — choose the installation method that works for you. Levels in 90–120 seconds. 8,000 lb per jack, 13" stroke, lifetime cylinder warranty, 170 lbs complete.
The Bigfoot AGC-E450M is a central pump fully automatic hydraulic leveling system engineered for Ford E-450 Class C motorhomes — and it comes with both bolt-on and weld-on brackets included, so you're not forced to choose one installation method over the other. Press one button and the system automatically levels your coach in 90 to 120 seconds without any further user input — no bubble levels, no monitoring, no adjustments required. Manual individual jack control remains available when needed, and the emergency retract button provides instant simultaneous retraction of all four jacks for critical situations.
A single central hydraulic power unit — an American-made marine pump and motor wrapped in weatherproof steel housing — powers all four cylinders and mounts outside the coach to preserve interior storage. Four powder-coated 8,000 lb cylinders with 13" stroke are machined at Quadra's White Pigeon, Michigan facility, hand-assembled, and 100% leak tested before shipment with a lifetime warranty. The all-up safety feature signals if any cylinder is not fully retracted before driving. At 170 lbs complete with all necessary components and hardware, the AGC-E450M delivers true one-touch automation for Ford E-450 owners, built entirely in America.
Press and walk away — fully automatic leveling in 90–120 seconds, zero user input required
Both bracket types included — choose the installation method that fits your preference and situation
Single power unit mounts outside — zero interior storage space consumed
8,000 lb cylinders machined in Michigan with lifetime warranty coverage
If your Ford E-450 is 5 years old or older, you MUST measure frame height before ordering. How to Measure: 1. Park on a level surface 2. Go underneath the cab driver's area 3. Locate the control arm mounting bracket for the front axle 4. Just rearward of this bracket, measure from the bottom of the vehicle frame to the ground Critical Decision Point: • If measurement is BELOW 15" → Order Ford E-350 part number (AGC-E350) instead — it has shorter front cylinders for better ground clearance • If measurement is 15" or above → Order this Ford E-450 system (AGC-E450M) Why This Matters: Older E-450s or those with lower ride height need the shorter E-350 front cylinders to maintain proper ground clearance. Skipping this measurement and ordering the wrong system results in cylinder swaps during installation with an additional fee applied. Not sure? Call us at 1-866-332-7881 before ordering and we'll help you measure and confirm the correct system.
This system is engineered specifically for Ford E-450 Class C motorhome chassis: Compatible Chassis: • Ford E-450 Chassis (Class C Motorhomes) • Frame height 15" or above (measured per instructions above) Compatible Coach Brands (on Ford E-450): • Coachmen • Forest River • Gulf Stream • Jayco • Thor Motor Coach • Winnebago • Most other Class C motorhomes built on Ford E-450 chassis Important Notes: • Remove all existing leveling system frame brackets before installation • Verify frame height if your vehicle is 5+ years old (see red warning box above) Not sure if this system fits your specific coach? Call us at 1-866-332-7881 for chassis compatibility verification before ordering.
The AGC-E450M includes both bolt-on and weld-on brackets, giving you the flexibility to choose the installation method that best fits your situation. Professional installation is strongly recommended regardless of method: Installation Requirements: • Removal of all existing leveling system brackets from the frame • Central pump mounting location selection and installation • Hydraulic line routing, bleeding, and pressure testing • Electrical wiring and control panel installation • All-up safety alarm wiring to ignition system • Proper torque specifications on all safety-critical fasteners Factory Installation Available: Quadra Manufacturing offers professional installation at their White Pigeon, Michigan facility. Amenities include free overnight parking, 30-amp hookup, WiFi, handicap-accessible lounge, restrooms, pet-friendly facilities, and veteran discounts.

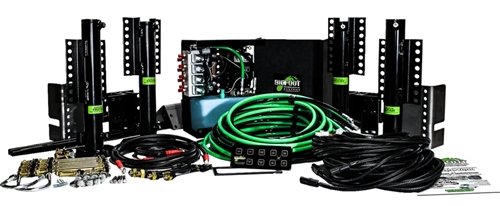

Hydraulic Cylinders: • (4) Powder-Coated Cylinders (8,000 lb Each) • (4) 7 inch Bigfoot Landing Pads Power Unit: • (1) Central Hydraulic Power Unit • (1) Weatherproof Steel Housing • American-Made Marine Pump & Motor Controls: • (1) Automatic Control Panel • All-Up Safety Warning System • Individual Jack Manual Controls • Emergency Retract Button • Complete Wiring Harness Mounting Hardware: • Ford E-450-Specific Bolt-On Brackets • Ford E-450-Specific Weld-On Brackets • All Required Fasteners & Hardware Hydraulic Components: • Complete Hydraulic Line Kit • Hydraulic Fittings & Connections • Reservoir (Hydraulic Fluid Not Included) Documentation: • Installation Manual • Wiring Diagrams • Owner's Manual • Warranty Information Download the Bigfoot Leveling Systems Installation Manual All Necessary Components and Hardware for Complete Installation Included
Factory Installation in White Pigeon, Michigan: Quadra Manufacturing (Bigfoot) offers professional Ford E-450 installation with these amenities: • Free Overnight Parking • Free 30-Amp Electrical Hookup • Free WiFi Access • Handicap-Accessible Customer Lounge • Handicap-Accessible Restrooms • Pet-Friendly Facilities • Veteran Discounts Available Schedule Factory Installation: 1. Purchase the Bigfoot Class C Installation Package 2. Call Bigfoot at 1-800-752-9815 to schedule Professional installation is strongly recommended. Call ahead to verify frame height and discuss your specific E-450 configuration.
RV SnapPad BF-7 pads snap permanently onto your Bigfoot landing pads and stay attached during travel — no more placing and retrieving pads at every campsite. They protect asphalt and hard surfaces, prevent sinking on soft ground, and cut setup time to seconds.
Recommended Accessory: RV SnapPad BF-7 Permanent RV Jack Pads (4-Pack) — Model BF7SP4
Quadra Manufacturing (Bigfoot Leveling Systems): Phone: 1-800-752-9815 Installation Scheduling, Sales & Technical Support
