Patented bolt-on fully automatic leveling for 2007–2018 Mercedes Sprinter 3500 Cutaway Class C motorhomes. No frame drilling or welding. One-touch auto-levels to true level plane. 8,000 lb per jack, 145 lbs complete.
The Bigfoot AGC-MBC07 is a fully automatic hydraulic leveling system engineered from the ground up for 2007–2018 Mercedes Sprinter 3500 Cutaway Class C motorhomes. Its patented bolt-on installation requires no drilling or welding to the Mercedes frame — protecting the chassis, factory warranty, spare tire location, and rear exhaust routing. The only drilling involved is into the wheel wells for bracket attachment, leaving the frame completely untouched.
Unlike semi-automatic systems that require the user to monitor a bubble level and manually fine-tune each corner, the AGC-MBC07 is fully automatic: press one button and the system automatically deploys all four jacks and levels the vehicle to a true level plane without any further user input. Manual individual jack control remains available for sites that are severely out of level or require special adjustment. A central pump assembly saves space and a single marine-grade power unit mounts outside in its weatherproof steel housing, consuming zero interior storage space. Four powder-coated 8,000 lb cylinders with 13" stroke — machined at Quadra's White Pigeon, Michigan facility — carry a lifetime warranty. This is a US-patented product (Patent Nos. #10,821,944, #10,759,396 & #10,093,286), and at just 145 lbs complete, it's one of the most refined, chassis-specific hydraulic leveling systems available for the Sprinter Class C platform.
Patented bolt-on install — no frame welding, no spare tire move, no exhaust rerouting
Press once — system automatically levels to a true level plane, no user adjustment needed
Patent Nos. #10,821,944, #10,759,396 & #10,093,286 — engineered for the Sprinter chassis
8,000 lb cylinders machined in-house at Quadra's Michigan facility with lifetime warranty
Verify rear frame clearance before ordering — some coaches have tanks or generators that prevent rear cylinder mounting. Where to Measure: Check the Mercedes frame approximately 3 feet behind the centerline of the rear axle, just behind the leaf spring mount. Locate the area with four holes and bolts on the frame rail. What You Need: At that location, you need either: • 6.5" of clearance outward from the outer frame surface (toward the outside of the vehicle), OR • 6.5" of clearance inward from the inner frame surface (toward the center of the vehicle) Only one opening direction is needed. Perform this check on both the driver and passenger frame rail. If clearance is insufficient: A nearby tank, generator, or other component may be obstructing the cylinder mounting location. Contact Quadra at 1-800-752-9815 before ordering to discuss options.
Compatible Chassis: 2007–2018 Mercedes Sprinter 3500 Cutaway (Chassis year — not RV model year) Compatible Coach Brands (on Sprinter 3500 Cutaway): • Coachmen • Tiffin • Renegade • THOR • Winnebago • Forest River • Jayco • Pleasure-Way • Dynomax • Leisure Travel Vans — Serenity models fit fine • Triple-E • Most other Class C motorhomes on Sprinter 3500 Cutaway Leisure Travel Unity Exception: 2016 and newer Leisure Travel Unity coaches (chassis year) require a different part number: AC-MB4-R11. Pre-2016 Unity models are not compatible with this system. Serenity models work fine with standard AGC-MBC07. Chassis Year vs. RV Model Year: Always verify your chassis manufacture year — not your RV model year. Check your door jamb sticker or title. A 2020-model-year RV built on a 2017 Sprinter chassis is compatible with this system.
Chassis Year: • 2019 and Newer Mercedes Sprinter Chassis — see AGC-MBC19 system instead Vehicle Type: • Mercedes Sprinter Camper Vans (van chassis body — see Class B systems) • Airstream (all models — does not fit) • Roadtrek (all models) Leisure Travel: • Leisure Travel Unity (2016 and newer chassis year) — requires AC-MB4-R11 • Leisure Travel Unity (pre-2016 chassis) — not compatible Frame Clearance Failure: • Coaches where rear frame clearance check reveals less than 6.5" available inward or outward from frame surface at the rear axle location Not sure if your specific coach is compatible? Call us at 1-866-332-7881 before ordering.

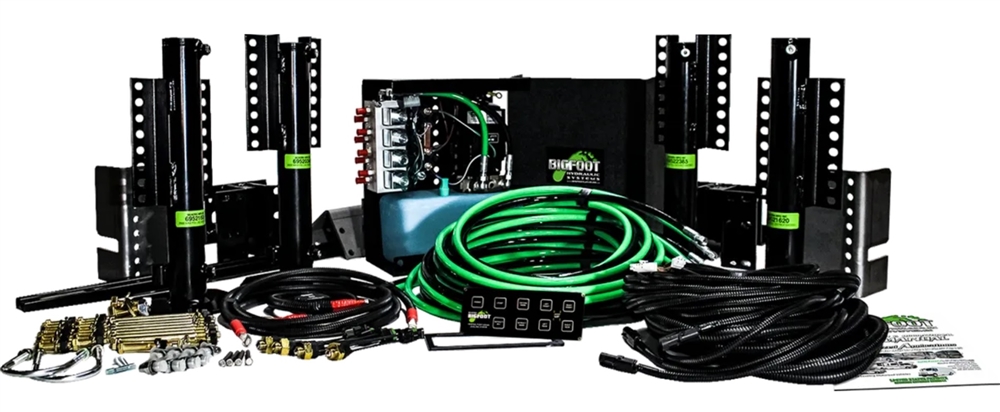

Hydraulic Cylinders: • (4) Powder-Coated Cylinders (8,000 lb Each) • (4) 7 inch Bigfoot Landing Pads Power Unit: • (1) Central Hydraulic Power Unit • (1) Weatherproof Steel Housing • American-Made Marine Pump & Motor Controls: • (1) Automatic Control Monitor/Panel • All-Up Safety Warning System • Individual Jack Manual Controls • Complete Wiring Harness Mounting Hardware: • Patented Sprinter-Specific Bolt-On Brackets • Wheel Well Mounting Hardware • All Required Fasteners & Hardware Hydraulic Components: • Universal Length Hydraulic Lines • Hydraulic Fittings & Connections • Reservoir (Requires 2 Qts Dexron III ATF) Documentation: • Installation Manual • Wiring Diagrams • Owner's Manual • Warranty Information Download the Bigfoot Leveling Systems Installation Manual NOT Included: • 2 Quarts Dexron III ATF Hydraulic Fluid
Factory Installation in White Pigeon, Michigan: Quadra Manufacturing (Bigfoot) offers professional Sprinter installation with these amenities: • Free Overnight Parking • Free 30-Amp Electrical Hookup • Free WiFi Access • Handicap-Accessible Customer Lounge • Handicap-Accessible Restrooms • Pet-Friendly Facilities • Veteran Discounts Available Schedule Factory Installation: 1. Purchase the Bigfoot Class C Installation Package 2. Call Bigfoot at 1-800-752-9815 to schedule Professional installation is strongly recommended. Verify rear frame clearance before traveling to the factory.
Bigfoot offers separate fully automatic systems for the 2007–2018 and 2019+ Sprinter 3500 chassis. Both are bolt-on, but chassis-year-specific engineering means they are not interchangeable:
⚠️ Important: Always verify your chassis manufacture year — not your RV model year — before ordering. Check your door jamb sticker or title for the Sprinter chassis build date. Ordering the wrong system for your chassis year will result in a return.
RV SnapPad BF-7 pads snap permanently onto your Bigfoot landing pads and stay attached during travel. For Sprinter systems, SnapPads also increase lift height and expand the footpad contact area — added functional benefits beyond simple convenience.
Recommended Accessory: RV SnapPad BF-7 Permanent RV Jack Pads (4-Pack) — Model BF7SP4
Quadra Manufacturing (Bigfoot Leveling Systems): Phone: 1-800-752-9815 Installation Scheduling, Sales & Technical Support
