Patented bolt-on automatic leveling with space-saving central pump for 2019–2023 Mercedes Sprinter 3500 cutaway. 8,000 lb per jack, 13" stroke. No frame drilling required.
The Bigfoot AGC-MBC19 delivers fully automatic one-touch leveling engineered exclusively for 2019–2023 Mercedes Sprinter 3500 cutaway chassis. It combines the simplicity of a single central pump assembly—ideal for space-constrained Sprinter installations—with Quadra Manufacturing's patented bolt-on bracket system that requires no drilling or welding to the chassis frame. This preserves your Mercedes warranty and eliminates the complex frame modifications that typically come with aftermarket leveling system installations.
At the heart of the AGC-MBC19 is a weatherproof marine-grade hydraulic power unit wrapped in a protective steel housing, mountable entirely outside the motorhome to keep valuable storage compartments free. Four powder-coated cylinders—each machined in-house at Quadra's White Pigeon, Michigan facility, hand-assembled, and 100% leak tested—deliver 8,000 lbs of lifting capacity per jack with 13" of stroke. 7-inch Bigfoot pads ensure stable ground contact on any surface. One press of a button handles full automatic leveling, while individual manual controls let you fine-tune each corner precisely. The system carries a United States Patent (#10,821,944 & #10,759,396) and fits the widest range of Sprinter Class C brands on the market—making it the definitive automatic leveling upgrade for 2019-and-newer Mercedes-based Class C motorhomes.
Patented bracket system protects Mercedes chassis warranty and structural integrity
Single button fully stabilizes and levels your motorhome automatically
Compact central pump assembly mounts outside—zero storage space used inside
Visual and audible alarm prevents driving with any jack not fully retracted
Designed for the 2019–2023 Mercedes Benz Sprinter 3500 Cutaway chassis with 170" wheelbase. Chassis year applies, not RV model year—verify the chassis build date, not the RV manufacturer's model year. Compatible Class C RV Brands: • Winnebago • Thor Motor Coach • Coachmen • Tiffin • Renegade • Forest River • Jayco • Pleasure-Way • Dynomax • Leisure Travel Vans • Triple-E • Other Sprinter 3500 Cutaway Class C Builds Frame Clearance Check Required: Before ordering, verify rear cylinder clearance. Check the Mercedes frame approximately 3 ft behind the centerline of the rear axle, just behind the leaf spring mount (where four bolt holes are located). You need 6.5" outward from the outer frame surface or 6.5" inward from the inner frame surface—only one opening is required. Check both driver and passenger frame rails.
This system will NOT fit the following: Camper Vans (Van Chassis): • Mercedes Sprinter camper vans (non-cutaway) • Class B camper vans on Mercedes van chassis • Airstream Interstate, Atlas, or other Airstream models • Roadtrek models Wrong Chassis Year: • 2018 and older Mercedes Sprinter chassis (see AGC-MBC07 instead) • Sprinter chassis without 170" wheelbase If your motorhome is a 2019+ Mercedes camper van rather than a cutaway chassis cab, contact Quadra Manufacturing at 1-800-752-9815 to identify the correct Sprinter Class B system for your application.
Key Installation Advantages: • NO drilling or welding to the chassis frame • NO spare tire relocation required • NO rear exhaust rerouting needed • Patented bolt-on bracket system preserves Mercedes warranty What Is Required: • Some drilling into wheel wells may be needed • Frame clearance verification before installation • Removal of any existing leveling system brackets • Hydraulic system setup and proper bleeding • Electrical wiring and control panel installation • 2 quarts of Dexron III hydraulic fluid (not included)

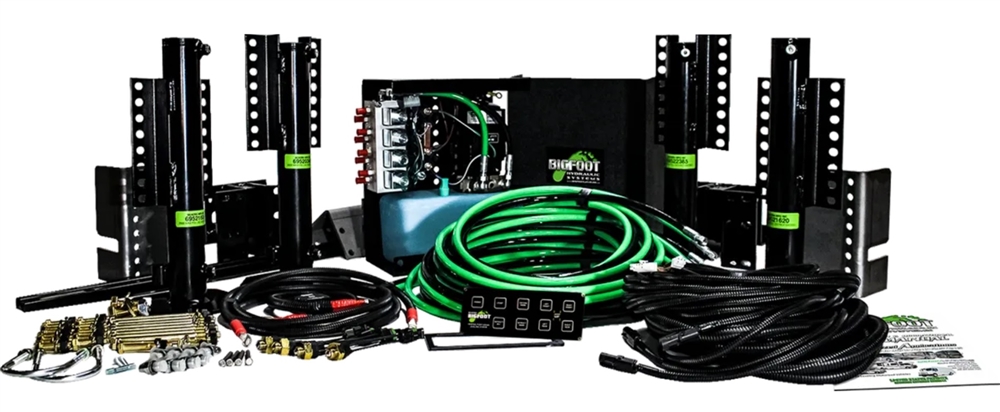

Hydraulic Cylinders: • (4) Powder-Coated Cylinders (8,000 lb Each) • (4) 7" Bigfoot Landing Pads Power Unit: • (1) Marine-Grade Central Hydraulic Power Unit • (1) Weatherproof Steel Housing • American-Made Marine Pump & Motor Mounting Hardware: • Patented Bolt-On Bracket System • Universal Length Hydraulic Lines • All Required Mounting Hardware Hydraulic Components: • Complete Hydraulic Line Kit • Hydraulic Fittings & Connections • Reservoir (Requires 2 Qts Dexron III) Electrical & Controls: • (1) Monitor Control Panel • Complete Wiring Harness • All-Up Warning System • Individual Cylinder Controls Documentation: • Installation Instructions • Wiring Diagrams • Owner's Manual • Warranty Information Download the Bigfoot Leveling Systems Installation Manual NOT Included: • 2 Quarts Dexron III Hydraulic Fluid
Factory Installation Available in White Pigeon, Michigan: Quadra Manufacturing (Bigfoot) offers professional installation at their facility with the following amenities while you wait: • Free Overnight Parking • Free 30-Amp Electrical Hookup • Free WiFi Access • Handicap-Accessible Customer Lounge • Handicap-Accessible Restrooms • Pet-Friendly Facilities • Veteran Discounts Available How to Schedule Factory Installation: 1. Purchase the Bigfoot Class C Installation Package 2. Call Bigfoot at 1-800-752-9815 to schedule your appointment Installation typically requires 1-2 business days depending on your specific RV model and any existing modifications.
RV SnapPad BF-7 pads snap permanently onto your Bigfoot landing pads and stay attached during travel—no more placing and retrieving pads at every campsite. They protect asphalt and hard surfaces, provide extra ground coverage, and reduce setup time to seconds.
Recommended Accessory: RV SnapPad BF-7 Permanent RV Jack Pads (4-Pack) – Model BF7SP4
Quadra Manufacturing (Bigfoot Leveling Systems): Phone: 1-800-752-9815 Installation Scheduling & Sales
