Bigfoot MQ-8A1 Manual Leveling System Class-A Gas/Class 8 Diesel Quad Pump

Why Choose the Bigfoot MQ-8A1?

The Bigfoot MQ-8A1 is a quad pump manual hydraulic leveling system engineered for Class-A gas and Class-8 diesel motorhomes under 24,000 lbs GVWR on Ford F53, Freightliner M2, Chevrolet Kodiak 5500, and similar chassis. Unlike fully automatic systems that handle all aspects of leveling for you, the MQ-8A1 puts you in direct control of every step — operate all four cylinders simultaneously for fast stabilization, then fine-tune each corner individually using the control panel's individual LED cylinder retract indicators to see exactly where each jack stands at a glance. This is the system of choice for experienced Class-A owners who prefer precision hands-on control and trust their own judgment over automated leveling.

The quad pump design places four independent marine-grade power units — one at each corner — each running only 25% of the time compared to a single central pump. This delivers nearly four times the service life and dramatically reduced maintenance over the years. The four double-acting cylinders (power up AND power down) are rated at 12,000 lbs each with 16" of stroke, machined at Quadra's White Pigeon, Michigan facility, hand-assembled, and 100% leak tested before shipping with a lifetime warranty. Each power unit is wrapped in a weatherproof steel housing and mounts outside in the elements, preserving every cubic inch of interior storage space. At 240 lbs complete with all brackets, hoses, pumps, controls, and cylinders, the MQ-8A1 is a serious manual leveling system for owners who want maximum control, built entirely in America.

Complete System Features & Benefits

• Full Manual Control Panel: Operate all four cylinders simultaneously for fast stabilization, or control each jack individually for precise corner-by-corner leveling
• Individual LED Cylinder Retract Indicators: Dedicated LED for each corner shows jack status at a glance — you always know where every jack stands
• Emergency Retract Override: Simultaneously retracts all four jacks in emergency situations with a single button press
• Ignition Safety Alarm: Warns if jacks are deployed when the ignition is activated — prevents drive-off with jacks extended
• All-Up Safety Feature: Visual and audible alarm signals if any cylinder is not fully retracted before driving
• Quad Pump Design: Four individual marine-grade power units provide nearly 4x the pump life compared to central pump systems by each running only 25% of the time
• Double-Acting Cylinders: Powered extension AND powered retraction (power up / power down) for reliable operation in any conditions
• Four 12,000 lb Cylinders: Powder-coated cylinders with 16" stroke, machined in-house at Quadra's Michigan facility
• Lifetime Cylinder Warranty: Every cylinder hand-assembled and 100% leak tested before shipment with lifetime coverage
• American-Made Marine Pumps: Commercial-grade pumps and motors designed for harsh marine environments ensure long-term reliability
• Weatherproof Steel Housings: Each power unit wrapped in protective steel housing — mountable outside in road spray and elements
• Space-Saving Design: All four power units mount outside the coach, preserving 100% of storage compartment space
• 100 Square Inch Bigfoot Pads: Large pivoting footpads prevent sinking on soft or uneven ground for maximum stability

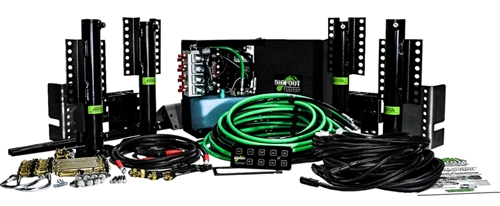

• Complete Kit: Includes all brackets, hydraulic hoses, pumps, controls, cylinders, battery cables, and hardware
• Made in America: 100% designed, manufactured, and assembled in White Pigeon, Michigan
• 2-Year Parts Warranty: Full coverage on all parts for two years from date of purchase
• 1-Year Labor Warranty: Labor coverage for authorized repairs in the first year
