One-touch fully automatic leveling for Chevy 3500/4500 Class C motorhomes. Levels in 90–120 seconds. 8,000 lb per jack, 13" stroke, central pump design, lifetime cylinder warranty, 170 lbs complete.
The Bigfoot AGC-C4500 is a fully automatic central pump hydraulic leveling system designed specifically for Chevrolet 3500 and 4500 Class C motorhome chassis. In an RV segment where manual jacks and semi-automatic systems still dominate, the AGC-C4500 delivers true one-touch convenience: press the button and walk away — the system automatically levels your coach in 90 to 120 seconds without any further user input. Manual individual jack control remains available when you need to fine-tune or adjust for severely uneven sites, and the emergency retract button provides instant simultaneous retraction of all four jacks in critical situations.
A single central hydraulic power unit — an American-made marine pump and motor wrapped in weatherproof steel housing — powers all four cylinders and mounts outside the coach to preserve every cubic inch of interior storage. Four powder-coated 8,000 lb cylinders with 13" stroke are machined at Quadra's White Pigeon, Michigan facility, hand-assembled, and 100% leak tested before shipment with a lifetime warranty. The all-up safety feature signals visually and audibly if any cylinder is not fully retracted before driving, and 7 inch Bigfoot pads provide secure ground contact on soft or uneven surfaces. At 170 lbs complete with all necessary components and hardware, the AGC-C4500 is a chassis-specific automatic leveling solution for Chevy 3500/4500 Class C owners who want the convenience of full automation, built entirely in America.
Press and walk away — fully automatic leveling in 90–120 seconds, no user input required
Operate each jack individually for fine-tuning on severely uneven sites
Single power unit mounts outside — zero interior storage space consumed
8,000 lb cylinders machined in Michigan with lifetime warranty coverage
This system is engineered specifically for Chevrolet 3500 and 4500 Class C motorhome chassis: Compatible Chassis: • Chevrolet 3500 Chassis (Class C Motorhomes) • Chevrolet 4500 Chassis (Class C Motorhomes) Compatible Coach Brands (on Chevy 3500/4500): • Coachmen • Forest River • Gulf Stream • Jayco • Thor Motor Coach • Winnebago • Most other Class C motorhomes built on Chevy 3500 or 4500 chassis Important Notes: • Remove all existing leveling system frame brackets before installation • Verify your chassis model (3500 or 4500) before ordering • This system is designed for Class C motorhomes specifically — not cargo vans or cutaway trucks Not sure if this system fits your specific coach? Call us at 1-866-332-7881 for chassis compatibility verification before ordering.
Frame Preparation: • Remove all existing leveling system frame brackets prior to installation • Inspect chassis frame for structural integrity and mounting locations Mounting: • Professional installation recommended for proper frame bracket attachment • Welding or drilling may be required depending on chassis configuration • Central pump unit mounts outside — proper weatherproof location required Hydraulic System: • Hydraulic line routing, bleeding, and pressure testing required • Dexron III ATF hydraulic fluid (not included) — verify quantity with installer Electrical: • Control panel wiring and battery connection required • Proper grounding to vehicle frame essential • All-up safety alarm wiring to ignition system Professional installation is strongly recommended. Quadra Manufacturing offers expert factory installation in White Pigeon, Michigan with free overnight parking, 30-amp hookup, WiFi, pet-friendly facilities, and veteran discounts.

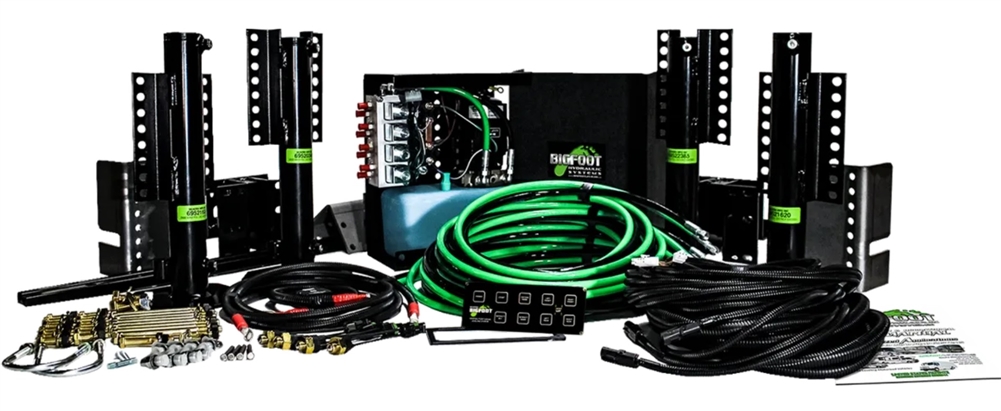

Hydraulic Cylinders: • (4) Powder-Coated Cylinders (8,000 lb Each) • (4) 7 inch Bigfoot Landing Pads Power Unit: • (1) Central Hydraulic Power Unit • (1) Weatherproof Steel Housing • American-Made Marine Pump & Motor Controls: • (1) Automatic Control Panel • All-Up Safety Warning System • Individual Jack Manual Controls • Emergency Retract Button • Complete Wiring Harness Mounting Hardware: • Chevy 3500/4500-Specific Brackets • All Required Fasteners & Hardware Hydraulic Components: • Complete Hydraulic Line Kit • Hydraulic Fittings & Connections • Reservoir (Hydraulic Fluid Not Included) Documentation: • Installation Manual • Wiring Diagrams • Owner's Manual • Warranty Information All Necessary Components and Hardware for Complete Installation Included
Factory Installation in White Pigeon, Michigan: Quadra Manufacturing (Bigfoot) offers professional Chevy 3500/4500 installation at their facility with these amenities: • Free Overnight Parking • Free 30-Amp Electrical Hookup • Free WiFi Access • Handicap-Accessible Customer Lounge • Handicap-Accessible Restrooms • Pet-Friendly Facilities • Veteran Discounts Available Schedule Factory Installation: 1. Purchase the Bigfoot Class C Installation Package 2. Call Bigfoot at 1-800-752-9815 to schedule Professional installation is strongly recommended. Call ahead to discuss your specific Chevy 3500 or 4500 chassis configuration.
Bigfoot offers both central pump and quad pump systems for various chassis. Here's how the AGC-C4500's central pump design compares:
The AGC-C4500's central pump design offers simpler installation and lighter weight. Quad pump systems offer longer pump life and no single point of failure, but are heavier and more complex to install. For the Chevy 3500/4500 chassis, the central pump is the standard configuration.
RV SnapPad BF-7 pads snap permanently onto your Bigfoot landing pads and stay attached during travel — no more placing and retrieving pads at every campsite. They protect asphalt and hard surfaces, prevent sinking on soft ground, and cut setup time to seconds.
Recommended Accessory: RV SnapPad BF-7 Permanent RV Jack Pads (4-Pack) — Model BF7SP4
Quadra Manufacturing (Bigfoot Leveling Systems): Phone: 1-800-752-9815 Installation Scheduling, Sales & Technical Support
