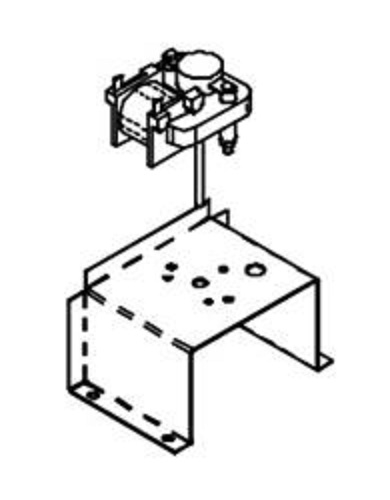

Keep your Coleman Mach rooftop AC running clean and dry. This OEM condensate pump (part 49233-5091) is the factory-correct replacement for 9000 series units, handling moisture removal so your air conditioner maintains peak cooling efficiency and avoids interior water damage.
During cooling operation, your rooftop air conditioner pulls moisture out of the cabin air. That condensate has to go somewhere. The condensate pump moves collected water away from the evaporator coil housing and out of the unit before it can overflow, drip into the ceiling liner, or cause mold and corrosion inside your rig.
Part 49233-5091 is the direct OEM replacement pump for the Coleman Mach 9000 series. It installs in the original mounting location without modification and restores proper condensate handling immediately. If your current unit is leaking, cycling erratically, or showing visible water overflow around the AC base, this pump is the first component to check.
Designed specifically for Coleman Mach 9000 series units. Drops into the original mounting location -- no adapters, no drilling.
Compatible with 9003, 9023, 9024, 9031, and 9034 series Coleman Mach rooftop air conditioners.
Proper condensate removal protects ceiling liners, wiring, and cabinetry from moisture intrusion and mold.
Sourced as an OEM component -- same quality and materials as the factory-installed unit. Not a generic substitute.
In a rooftop RV air conditioner, the evaporator coil gets cold enough to condense humidity out of the air. On low-profile rooftop units like the Coleman Mach 9000 series, passive drainage alone is often insufficient -- especially on level ground or when the unit is mounted with minimal roof pitch. The condensate pump actively moves that collected water so it can drain or evaporate safely outside the unit housing.
A failed or failing condensate pump typically shows up as water dripping from the ceiling vent, visible water staining around the AC shroud, or a musty smell in the cabin. Replacing the pump is a straightforward repair that restores normal operation.
Part number 49233-5091 (vendor code CMN49233-5091, UPC 755790404629) is the factory-designated condensate pump for the Coleman Mach 9000 series. Ordering by part number ensures you receive the correct unit for your air conditioner model -- no guesswork about compatibility.
This condensate pump is confirmed to fit the following Coleman Mach 9000 series air conditioner families:
If you are unsure which series your unit belongs to, check the model number label on the AC shroud or the data plate inside the rooftop unit housing. The series number appears in the first four digits of the model number.
This listing is for the condensate pump assembly only (49233-5091). Mounting hardware, wiring harnesses, and replacement shrouds are not included. Verify your existing wiring connector and mounting configuration before ordering if your unit has been previously modified.
When replacing the condensate pump, take a few minutes to flush the condensate drain pan and outlet port with clean water. Algae and mineral scale buildup in the pan can clog the new pump's intake quickly if not cleared. A diluted bleach rinse (1 tablespoon per gallon of water) and a full rinse-out is a simple step that extends pump life significantly.
Coleman Mach produces several distinct AC product lines. Part 49233-5091 is specific to the 9000 series (models 9003, 9023, 9024, 9031, 9034). It is not a universal fit for all Coleman Mach units. Mach 8, Mach 10, Mach 15, and other series use different condensate pump configurations. Confirm your model series before purchasing.
