Fasco Double-Shaft Fan Motor, 1100 RPM, 115V
Fasco 7190-2773 Double-Shaft Fan Motor, 1100 RPM, 115V
Fasco Double-Shaft Fan Motor, 1100 RPM, 115V

Price: $239.95
MFG P/N: 7190-2773
MFG: Fasco
SHIPS: Same Business Day Before 1 PM CST
SPECIAL: Click Here for Transit Time

Quantity in Stock :23

Free Shipping
Availability: In Stock
Qty:

Description

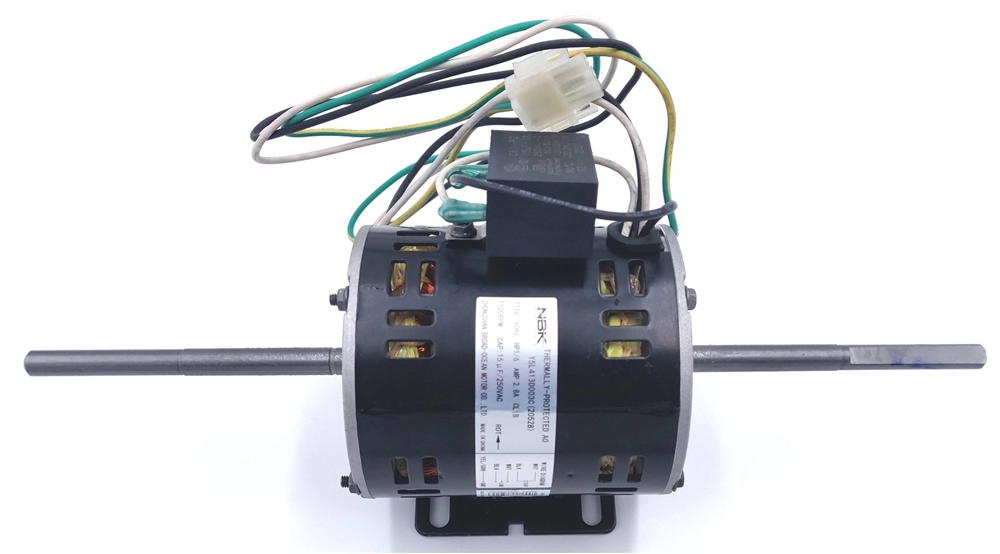

The Fasco Replacement Double-Shafted Fan Motor is designed as a single phase, 115 volt motor, 1,100 RPM. Greenheck motor number 304970.
  • Voltage: 115V.
  • Amps: 3.5A
  • RPM: 1,100.
  • Frequency: 60Hz.
  • Overall Length: 4-19/32".
  • Open enclosure.
  • Shaft Dimensions: 4-19/32" x 3/8" x 4-19/32".
  • Permanent split capacitor.
  • Single speed.
  • Overall Diameter: 3.3".
  • Sleeve bearings.
  • Automatic overload protection.
  • Single phase.
  • Ambient Temperature: 104-degrees F / 40-degrees C.
  • Class B insulated.
  • Weight: 7.4 lbs.
  • Greenheck part number 304970.
  • Also known as NBK Parts 20528.
