Stop removing individual vent caps and overfilling cells one by one. The Flow-Rite Pro-Fill system connects all 18 cells across six 6V batteries into a single-point filling circuit. Press the hand pump trigger, and every cell fills to the correct electrolyte level automatically -- then shuts off. Done.
RV house banks, golf cart packs, and off-grid solar storage that use six 6V flooded lead-acid batteries all share the same maintenance headache: 18 individual cells that need distilled water on a regular schedule. Underfill and you damage plates. Overfill and you get corrosive acid overflow on your battery tray. The Pro-Fill system eliminates both problems.

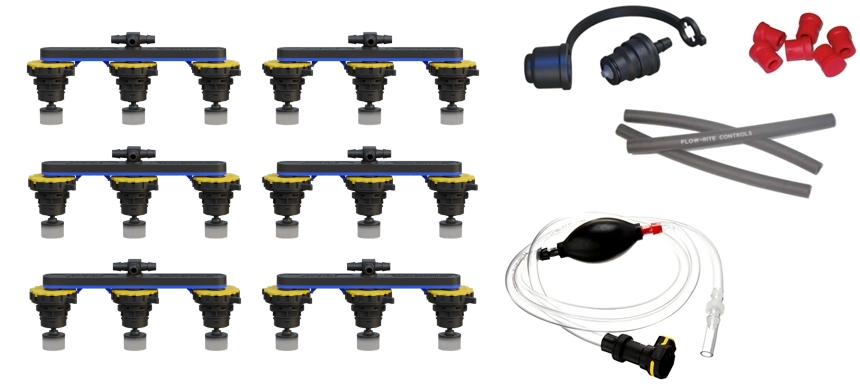

Each kit replaces the existing vent caps with automatic shut-off valves. Those valves are linked by a network of pre-cut tubing with quick-connect fittings. A single fill port on the end of the string accepts the hand pump nozzle -- or an optional hose from an external water source. Water flows through the circuit and each valve snaps shut the moment its cell reaches the correct level. You never guess, you never spill.
Each valve seats individually when the cell is full -- no overflow, no dry spots.
One connection waters all 18 cells across the entire 6V bank simultaneously.
Trigger-style hand pump lets you fill from a jug of distilled water without a fixed water line.
Tubing and valve layout sized for standard 6V golf cart and RV house batteries at 2.7" center spacing.
Flooded lead-acid batteries need watering every 2-4 weeks under heavy charge cycling. With a Pro-Fill system installed, that job takes under two minutes instead of 15-20. The valves also prevent the most common cause of premature battery failure -- dry plates from inconsistent hand-filling.
This kit is designed for flooded (wet cell) lead-acid batteries only -- the type that has removable vent caps and requires periodic water addition. Common applications include:
Do not use this system with AGM, gel, or lithium batteries. Those chemistries are maintenance-free and sealed -- they have no fill ports and do not accept watering valves. This kit is for flooded lead-acid cells only.
Installation requires no special tools. The existing vent caps are removed and the Pro-Fill valves press or thread into each cell opening. The interconnect tubing snaps onto the valve fittings in a daisy-chain pattern. A single external fill port at the end of the run accepts the hand pump. Most users complete installation in 30-45 minutes.
Always use distilled or deionized water when filling flooded lead-acid batteries. Tap water introduces minerals that accelerate plate sulfation and shorten battery life. The Pro-Fill system meters the correct volume -- but water quality is still the operator's responsibility.
