The interior ceiling component of the Furrion Chill Cube 18K variable-speed R32 rooftop AC system. Features an industry-first oscillating vent for wide-coverage airflow distribution, wireless remote, and a white finish that blends cleanly into modern RV interiors. The rooftop condenser unit is sold separately.
The Furrion FACT18MA-PS-AM is the non-ducted air distribution box (ADB) designed specifically for the Furrion Chill Cube 18K rooftop air conditioner. This is the ceiling-mounted interior unit that receives cooled or heated air from the rooftop condenser and distributes it throughout the RV cabin. Without the ADB, the rooftop unit cannot deliver conditioned air inside -- these two components work as a matched system.

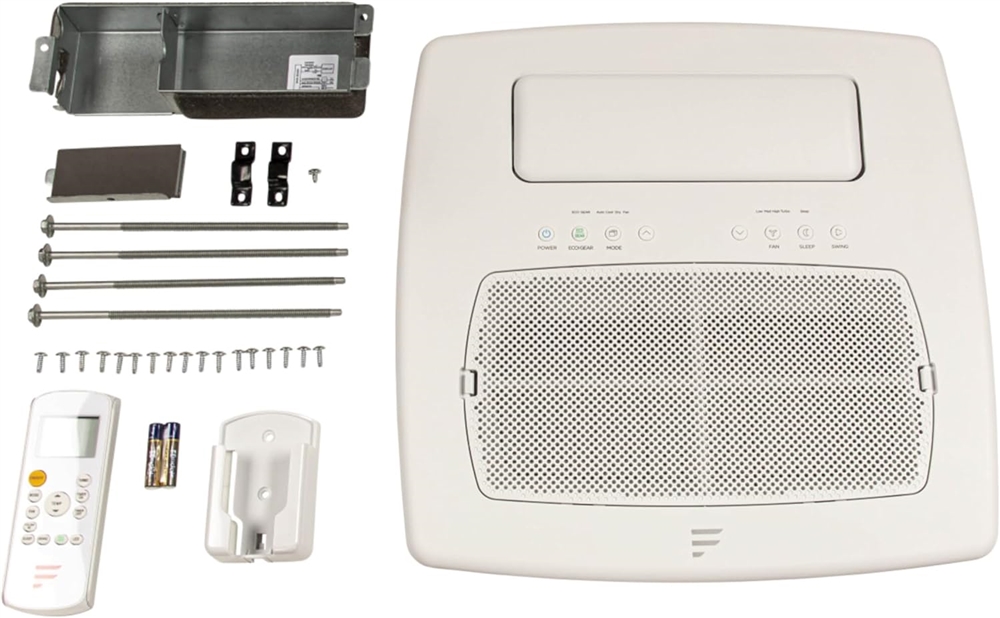

If you are replacing a damaged or failed interior ceiling unit, upgrading from an older Furrion ADB, or completing a new Chill Cube 18K installation, this is the part you need for the interior side of the system. It ships with the remote control and electrical box, so you are not hunting for accessories separately.

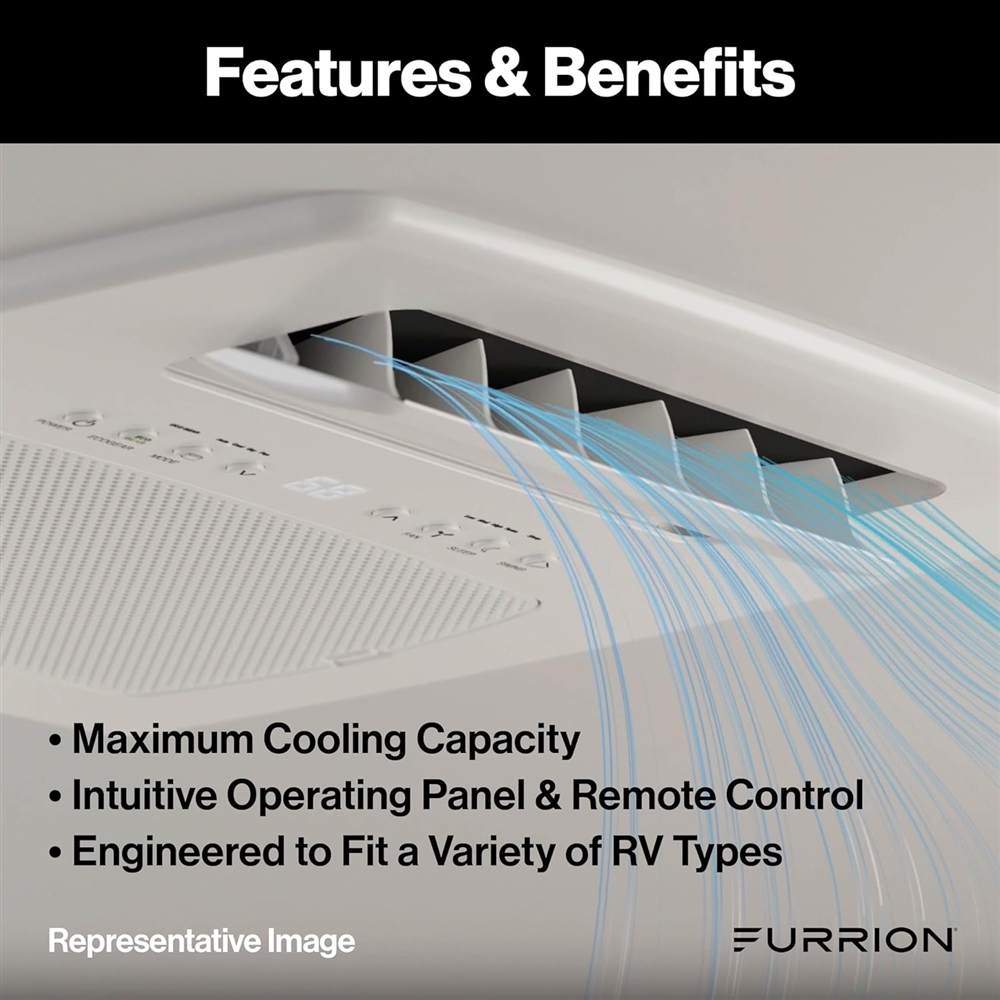

Industry-first auto-oscillating louver sweeps conditioned air side to side for even cabin coverage without hotspots.
Matched to the Chill Cube variable-speed compressor for efficient part-load operation and quieter nighttime cooling.

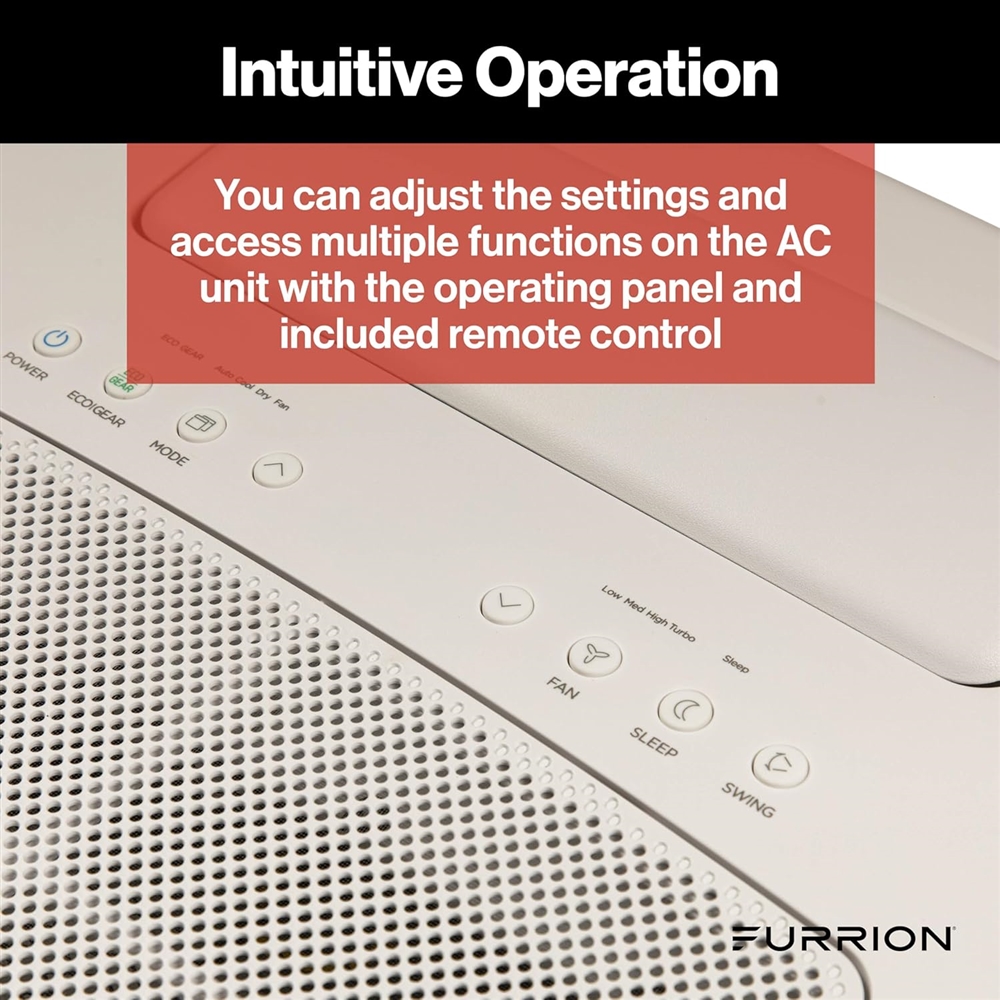

Wireless remote control ships in the box -- no separate purchase needed to operate fan speed, temperature, and mode.

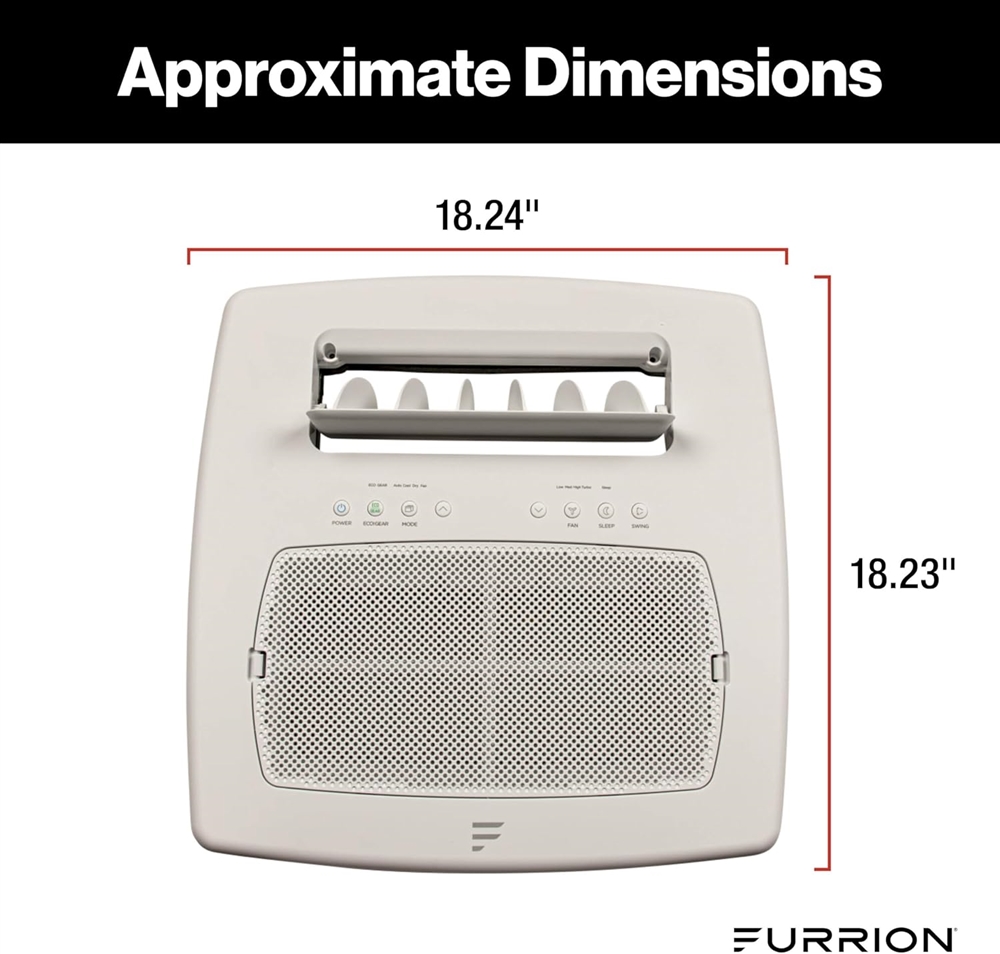

Low-profile white housing integrates with standard RV ceiling panels and coordinates with the Chill Cube rooftop unit aesthetic.
This listing covers the interior ADB only. The Furrion Chill Cube 18K rooftop condenser unit (FACR18MA-PS-AM or equivalent) is sold separately. Both components are required for a complete, functional system. Do not attempt to operate this ADB with a non-Furrion or non-compatible rooftop unit.
Non-ducted (also called "direct discharge") means conditioned air is delivered directly into the RV cabin through the ADB's vents rather than routed through ceiling ductwork to multiple registers. This is the most common configuration in travel trailers and smaller motorhomes. The oscillating louver on this ADB compensates for the single-point delivery by sweeping airflow across a wider arc, reducing the temperature gradient across the cabin.
If your RV has an existing ducted ceiling plenum, this non-ducted ADB is not the correct unit -- you would need a ducted-compatible distribution box instead.
The Chill Cube 18K uses R32 refrigerant, a lower global-warming-potential (GWP) alternative to older R410A systems. R32 is a mildly flammable (A2L class) refrigerant. Refrigerant service must be performed by a certified HVAC technician; do not attempt to charge, recover, or vent R32 yourself. The sealed refrigerant circuit is contained in the rooftop unit -- the ADB itself does not contain refrigerant lines.
The FACT18MA-PS-AM is engineered as a matched component for the Furrion Chill Cube 18K R32 rooftop system. Furrion uses a proprietary electrical and communication interface between the ADB and the rooftop unit. This ADB is not compatible with Furrion Chill Cube 15K systems, non-R32 Furrion units, or any other brand's rooftop air conditioner. Verify your rooftop unit model number before ordering.
To build or restore a full Chill Cube 18K installation, you also need the rooftop condenser unit (sold separately). Search our store for Furrion Chill Cube 18K rooftop AC or the part number FACR18MA-PS-AM to find the matching exterior component.
